Yardistry YM12935 - Step 19: Attach Final Roof Panel Part 3; Rafter Beam Bracket Placement

48 support@yardistrystructures.com
6
0
0 0
---
3- Rafter to Beam Brackets
3- 1/4
x 2" Hex Bolts
3- 1/4 Lock Nut
6 - 5/1 6 Large Flat Washer

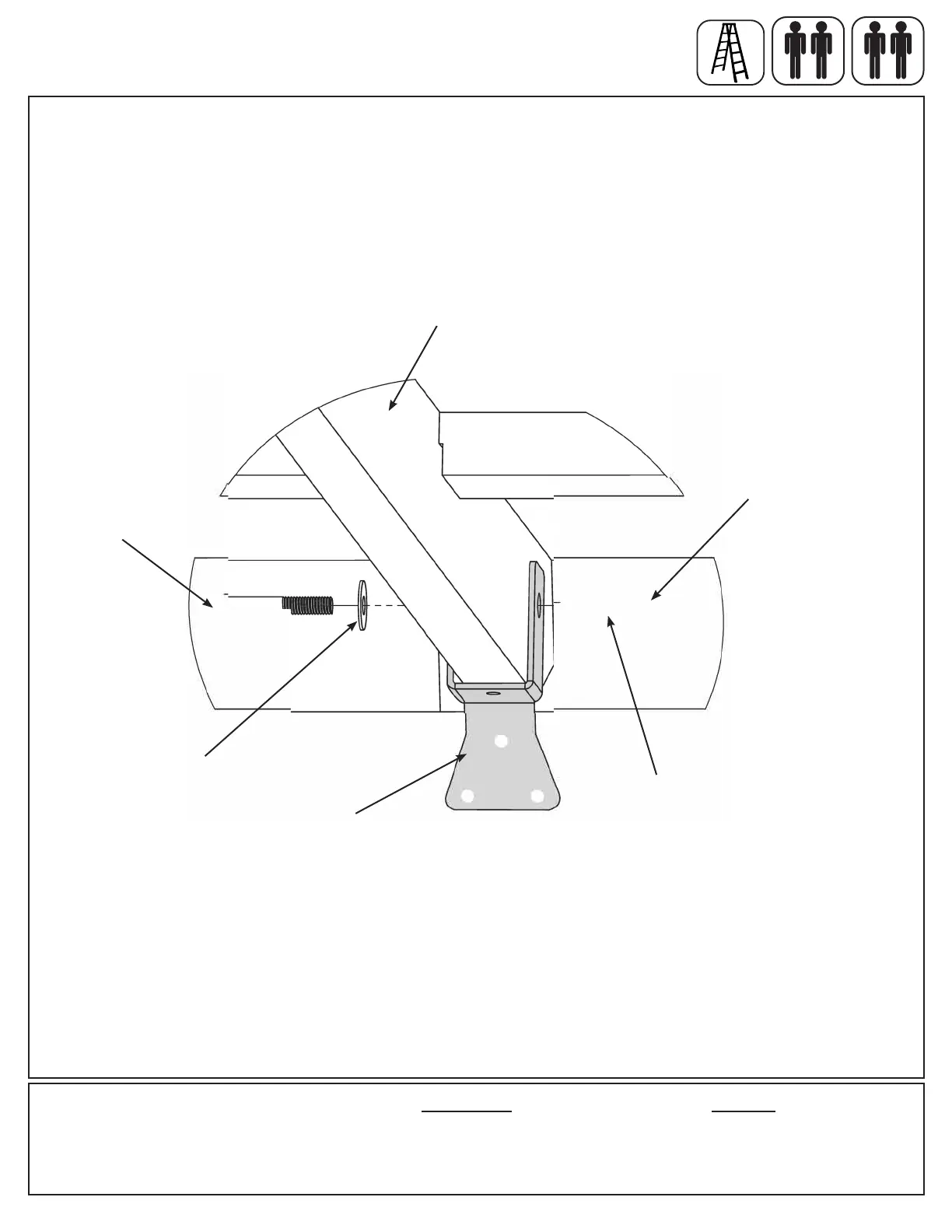

C: On the Small Roof Rafter Assembly just installed, place one Rafter Beam Bracket on each (1086) Rafter Short
Right, (1087) Rafter Short Left and (1088) Rafter. Loosely attach each bracket to rafters with one 1/4 x 2” Hex
Bolt (with two 1/4-5/16” large washers and one 1/4” lock nut). (F19.6)
x 3
F19.6
Attach to Rafter Short Right,
Rafter Short Left and Rafter
Step 19: Attach Final Roof Panel
Part 3
Hardware
Rafter Beam
Bracket
3 x 1/4 x 2” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
Components:
3 x Rafter Beam Bracket
1/4”
Lock
Nut
1/4 x 2”
Hex Bolt
1/4-5/16”
Large
Washer
1/4-5/16”
Large
Washer
