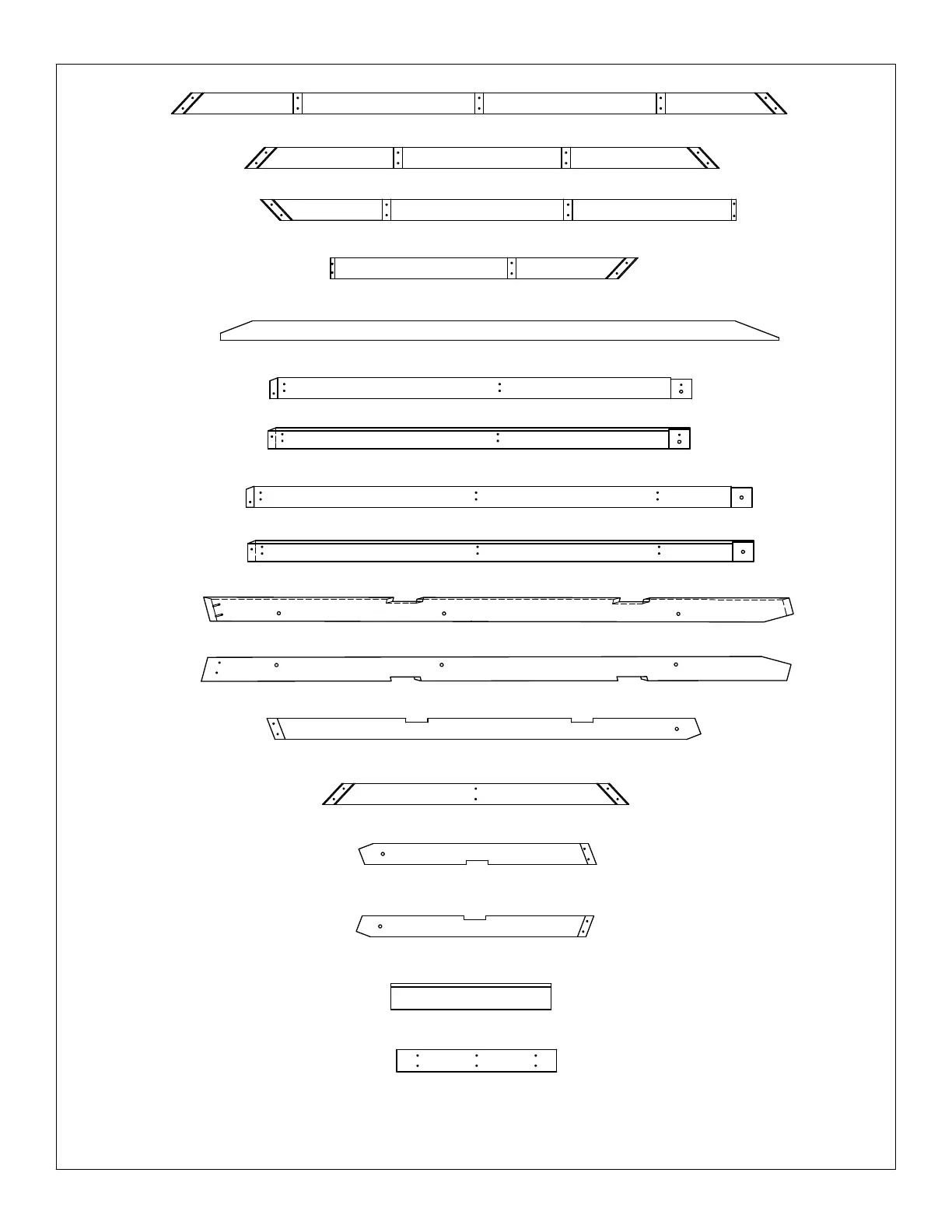

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
2pc. (1085) -
Long Strap
2233.6mm (87-15/16")
Y50229-1085
Y50229-1087
4pc. (1087) -
Rafter Short Left
864.2mm (34")
4pc. (1080) -
LT Corner Rafter
2140mm (84-1/4")
Y50229-1080
Y50229-1081
4pc. (1081) -
RT Corner Rafter
2140mm (84-1/4")
Y50229-1082
2pc. (1082) -
Fascia Right Short
1530.8mm (60-1/4")
2pc. (1083) -
Fascia Left Short
1530.8mm (60-1/4")
Y50229-1083
2pc. (1084) -
Short Strap
1111.9mm (43-3/4")
Y50229-1084
4pc. (1086) -
Rafter Short Right
864.2mm (34")
Y50229-1086
2pc. (1097) -
Top 581
mm (22-7/8")
Y50229-1097
Y50229-1099
2pc. (1099) -
Strap Long RT
1116.1mm (43-15/16")
6pc. (1088) -
Rafter
1575.5mm (62")
Y50229-1088
Y50229-1091
2pc. (1091) -
Fascia Right Long
1835.6mm (72-1/4")
2pc. (939) -
Strap Long
1721.9mm (67-13/16")
Y50229-939
2pc. (961) -
Tie
1985mm (78-1/8")
Y50229-961
2pc. (1092) -
Fascia Left Long
1835.6mm (72-1/4")
Y50229-1092
Y50229-1098
2pc. (1098) -
Strap Long LT
1726.1mm (67-15/16")
Y50229-936
1pc. (936) -
Spacer 581
mm (22-7/8")
