10 support@yardistrystructures.com
2pc. (684) Right Mid Strap FSC 972.3mm (38-1/4")
Y50229-684
2pc. (681) Left Top Strap FSC 495.1mm (19-1/2")
Y50229-681
Y50229-682
2pc. (682) Right Top Strap FSC 495.1mm (19-1/2")
Y50229-683
2pc. (683) Left Mid Strap FSC 972.3mm (38-1/4")
2pc. (686) Right Bot Strap FSC 1448.1mm (57")
Y50229-686
Y50229-645
2pc. (645) Spacer FSC 578.2mm (22-3/4")
2pc. (685) Left Bot Strap FSC 1448.1mm (57")
Y50229-685
Y50229-690
4pc. (690) Soffit End FSC 1792mm (70-9/16")
Y50229-680
2pc. (680) Rafter Top FSC 2407.4mm (94-3/4")
10pc. (633) Centre Rafter FSC 1873.6mm (73-3/4")
Y50229-633
Y50229-678
2pc. (678) Mid Fascia FSC 2470.9mm (97-1/4")
Y50229-689
2pc. (689) Soffit FSC 2470.9mm (97-1/4")
Y50229-679
6pc. (679) Centre Strap FSC 2470.8mm (97-1/4")
Y50229-646
7pc. (646) Tie FSC 2590.8mm (102")
2pc. (695) Spacer Long FSC 609.6mm (24")
Y50229-695

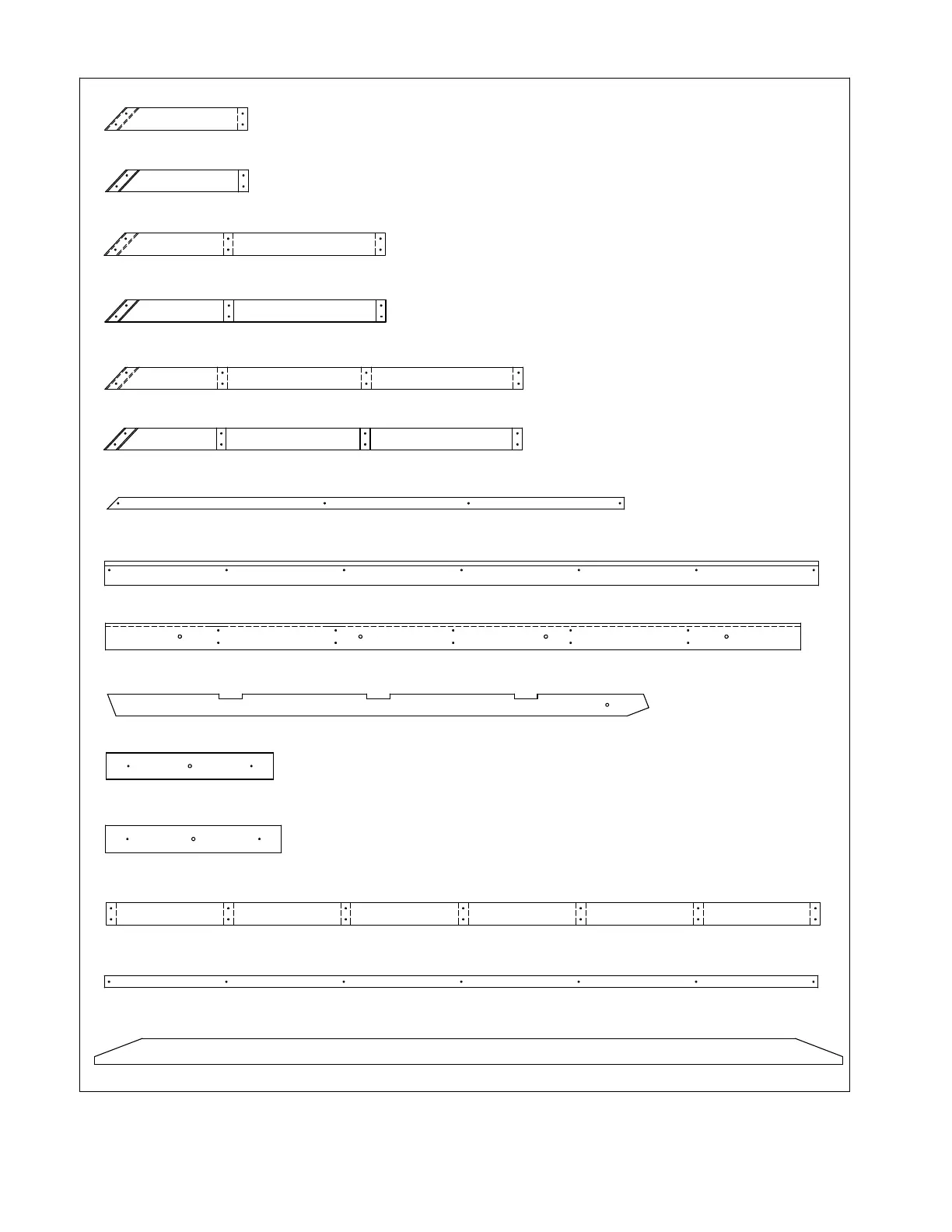

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
