Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.

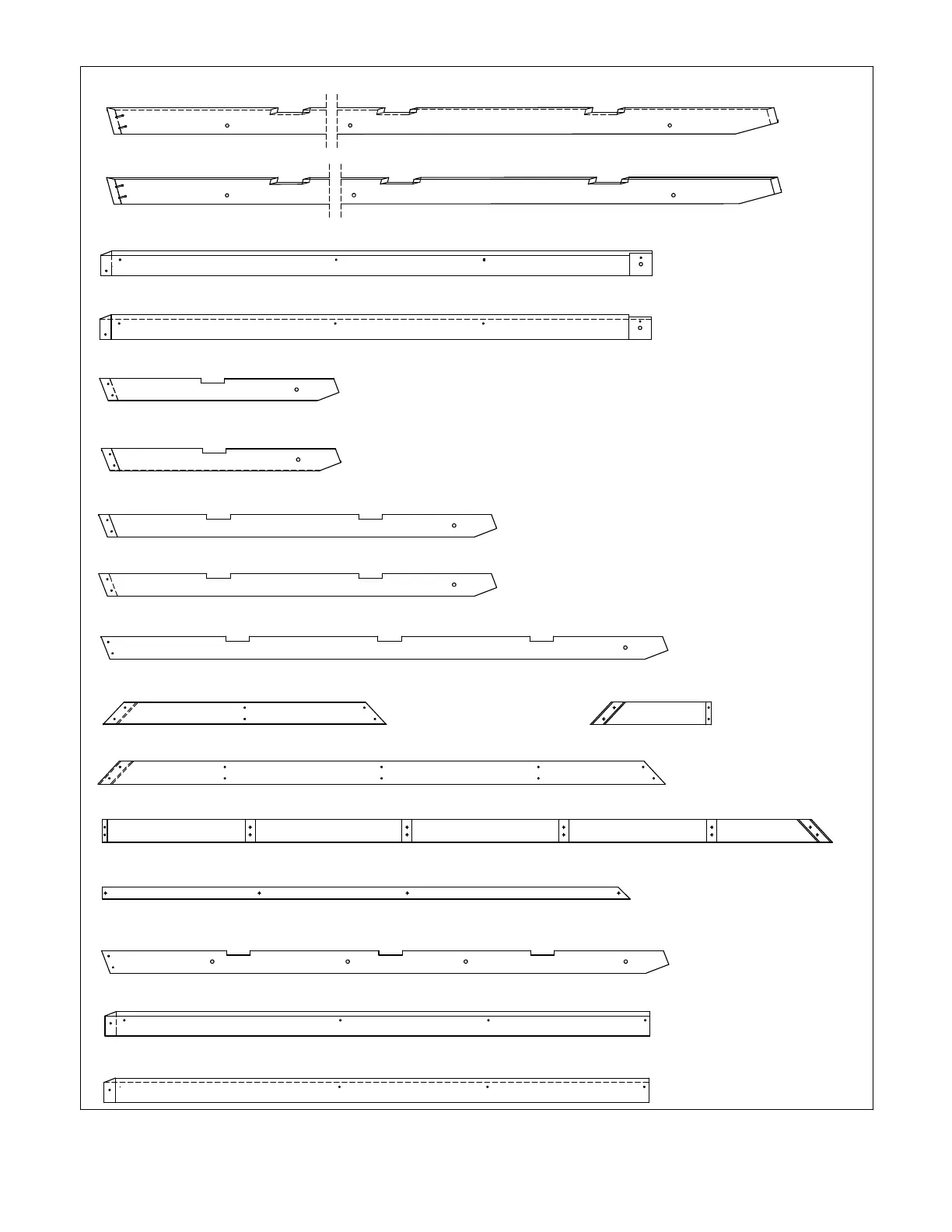

Part Identification ( )
4pc. (630) Rafter Short LT FSC 805.5mm (31-3/4")
Y50229-630
2pc. (627) Fascia Left Short FSC 1855.5mm (73-1/16")
Y50229-627
Y50229-623
4pc. (623) Rafter Corner Right FSC 2597.8mm (102¼")
2pc. (628) Fascia Right Short FSC 1855.5mm (73-1/16")
Y50229-628
Y50229-629
4pc. (629) Rafter Short RT FSC 805.5mm (31-3/4")
2pc. (634) Rafter FSC 1907mm (75-1/16")
Y50229-634
4pc. (631) Rafter Centre LT FSC 1338.9mm (52-3/4")
Y50229-631
2pc. (637) Mid Strap FSC 1908.3mm (75-1/8")
Y50229-637
4pc. (632) Rafter Centre RT FSC 1338.9mm (52-3/4")
Y50229-632
8pc. (675) Middle Rafter FSC 1907mm (75-1/16")
Y50229-675
Y50229-636
2pc. (636) Top Strap FSC 953.8mm (37-9/16")
2pc. (687) Bottom Strap LT FSC 2457mm (96-3/4")
2pc. (688) Bottom Strap RT FSC 406.3mm (16")
Y50229-688
2pc. (677) Right End Fascia FSC 1833.3mm (72-3/16")
Y50229-677
2pc. (676) Left End Fascia FSC 1833.3mm (72-3/16")
Y50229-676
4pc. (648) Soffit FSC 1774.5mm (69-7/8")
Y50229-648
Y50229-687
Y50229-624
4pc. (624) Rafter Corner Left FSC 2597.8mm (102¼")
