Hardware
48 x #8 x 2-1/2” Wood Screw

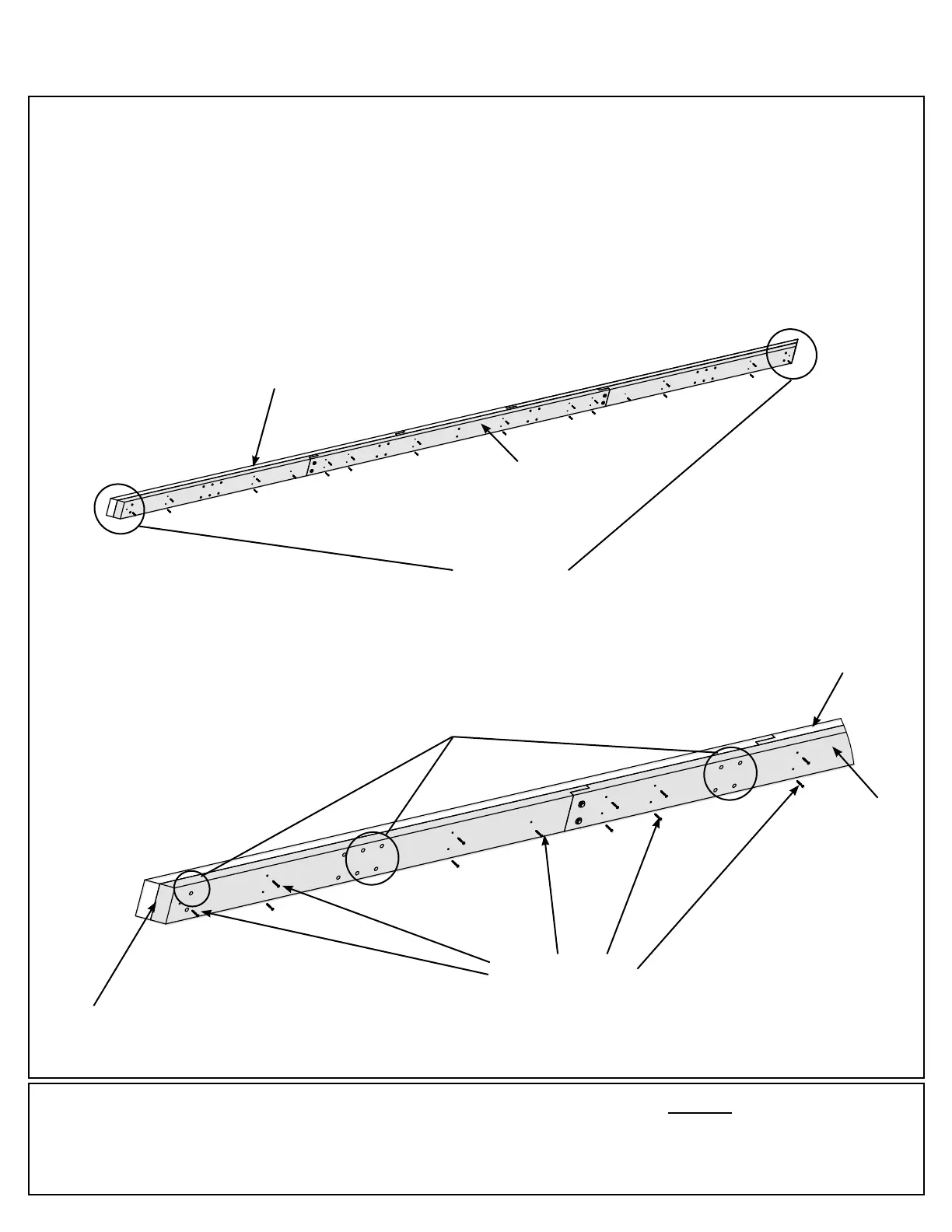

D: Place one Outer Beam Assembly and one Inside Beam Assembly together so the beam assembly ends are
ush and the angled ends match. Bolt heads must be on the outside of both beam assemblies. Match the bolt
holes in (691) Beam Long Inside and each (692) Beam Long End with the bolt holes in each (694) Outer End
then attach with 24 #8 x 2-1/2” Wood Screws. (F4.5 and F4.6)
E: Repeat Step D to make a second Long Beam Assembly.
Step 4: Long Beam Assembly
Part 2
Outer Beam
Assembly
Inside Beam
Assembly
Flush
#8 x 2-1/2” Wood Screws
(x 24 per assembly)
F4.5
F4.6
Outer Beam
Assembly
Inside Beam
Assembly
Notice orientation
of angled ends
Match bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
To Next Page
