Step 5: Frame Assembly and Anchoring
Part 3
x 3
4 x 3/8 x 9-1/4” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)

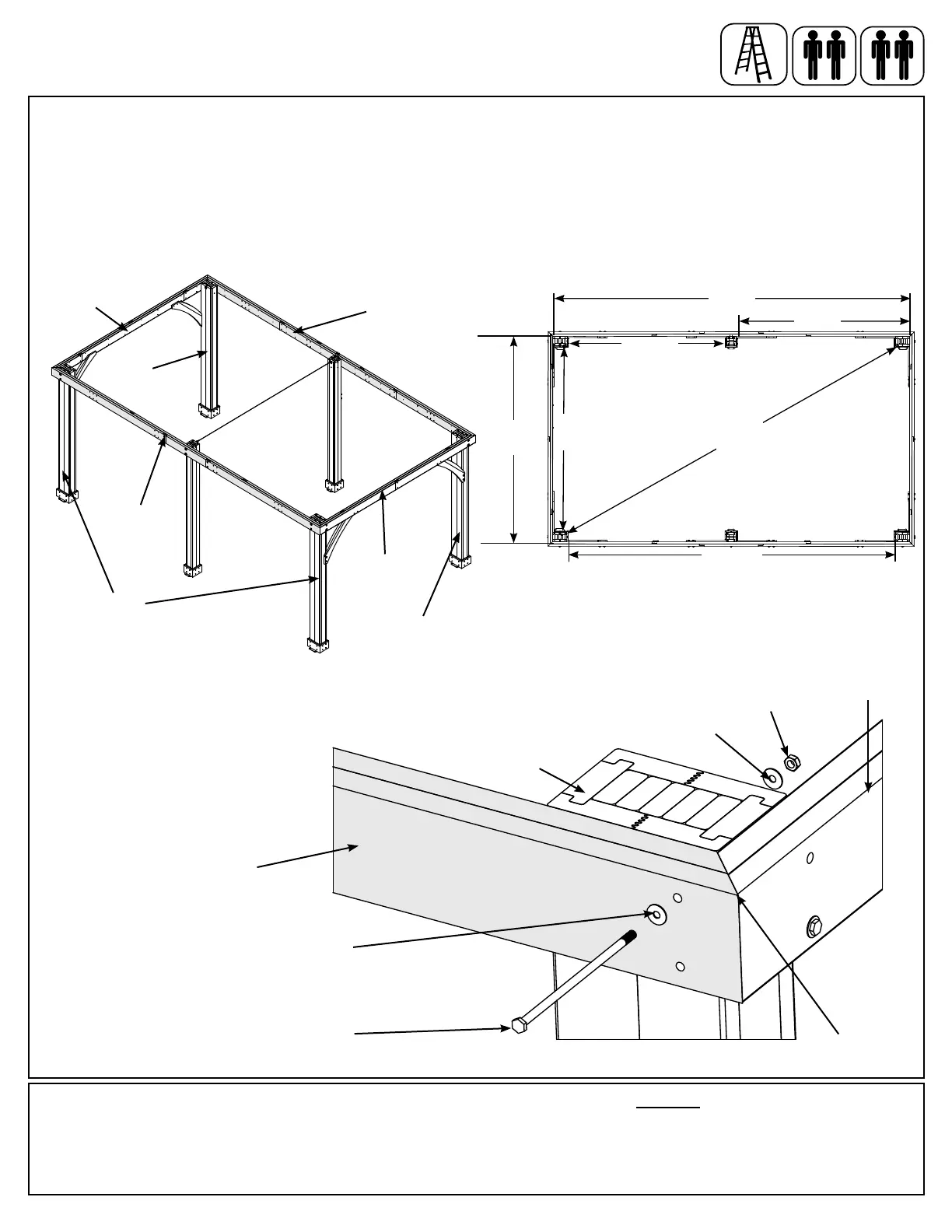

F: Move your Post Assemblies to the nal location. Make sure the ground is at and level before continuing
assembly.
G: With helpers stand up Post Assemblies then place one Long Beam Assembly against the outside of two Main
Posts, ush to the tops and outside corners and tight to Short Beam Assembly. Attach Long Beam Assembly to
Main Post through the top hole with one 3/8 x 9-1/4” Hex Bolt (with two 3/8” large washers and one 3/8” lock nut)
per Post. Repeat for the second Long Beam Assembly on the opposite side. (F5.6, F5.7 and F5.8)
Long Beam
Assembly
Short Beam
Assembly
Main
Post
Main Post
Main
Post
3/8” Large
Washer
3/8 x 9-1/4”
Hex Bolt
3/8” Lock
Nut
3/8” Large
Washer
Short Beam
Assembly
Long Beam
Assembly
Main Post
Flush and
tight
F5.8
F5.6
20’ 1-7/8”
Post to Post
Post to Post
10’ 10-3/8”
Plinth to Plinth
9’ 8-7/16”
Post to Post
19’ 7/8”
Plinth to Plinth
17’ 5”
Plinth to Plinth
8’ 4-9/16”
Post to Post
9’ 3-7/16”
5.813 m
2.831 m
6.144 m
2.554 m
3.312 m
2.958 m
5.309 m
