Yardistry YM12952 - Part 4: Steel Cable and Bracket Attachment

24 support@yardistrystructures.com
Hardware
F5.9
Long Beam
Assembly
Steel Cable
with Bracket
Mid Post
Step 5: Frame Assembly and Anchoring
Part 4
x 3
2 x 3/8 x 9-1/4” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
1 x Steel Cable with Bracket

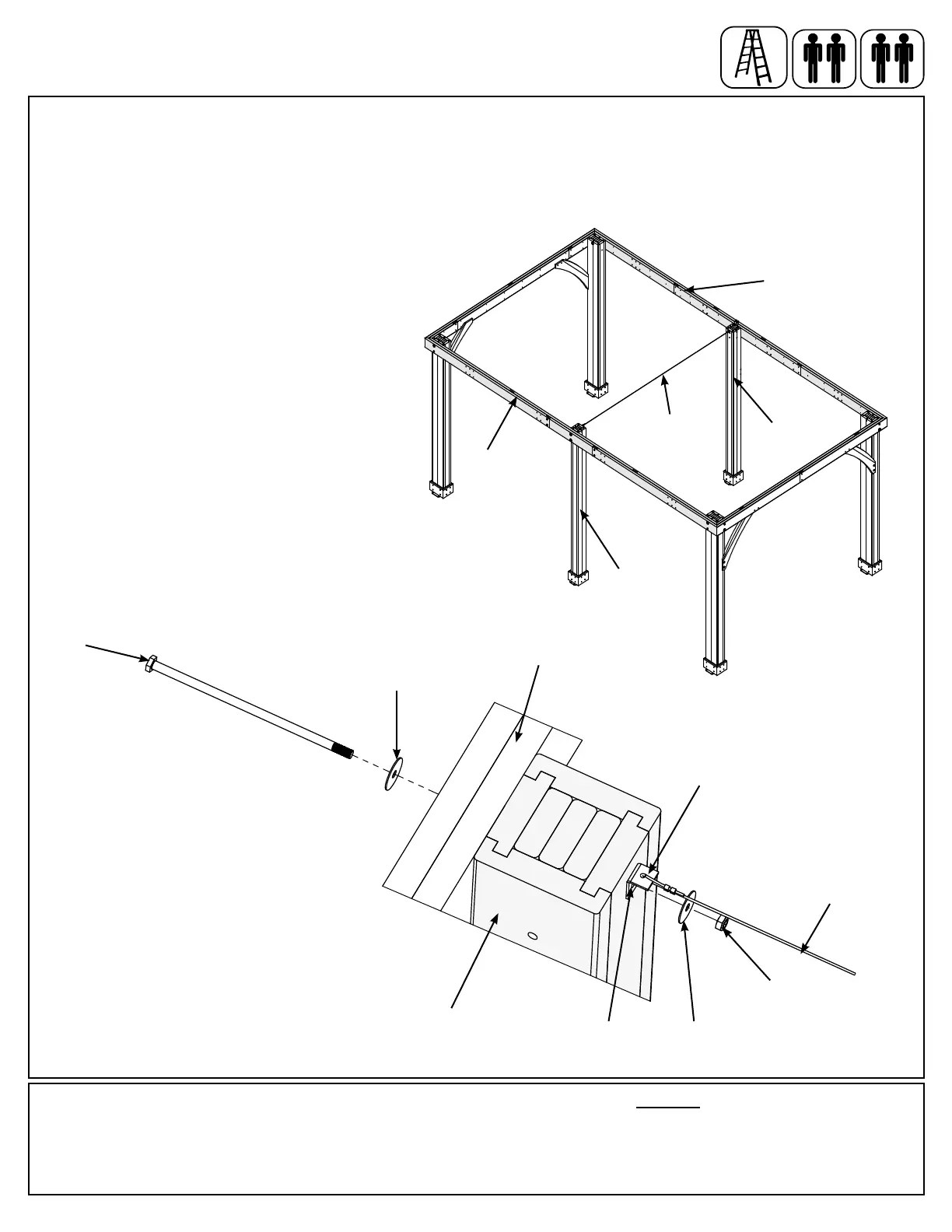

H: From inside the assembly, centre one Mid Post over middle bolt holes in each Long Beam Assembly then
place Steel Cable with Bracket against both Mid Posts so the angle of the bracket faces up and is over the top bolt
hole. Attach Long Beam Assembly to Mid Post and Steel Cable with Bracket through the top hole with one 3/8 x
9-1/4” Hex Bolt (with two 3/8” large washers and one 3/8” lock nut). (F5.9 and F5.10)
Long Beam
Assembly
Mid Post
F5.10
Long Beam
Assembly
Steel Cable
with Bracket
Mid Post
3/8” Large
Washer
3/8 x 9-1/4”
Hex Bolt
3/8”
Lock
Nut
3/8” Large
Washer
Angle faces
up and ush to
top of post
Centre over
bolt hole
