HardwareWood Parts

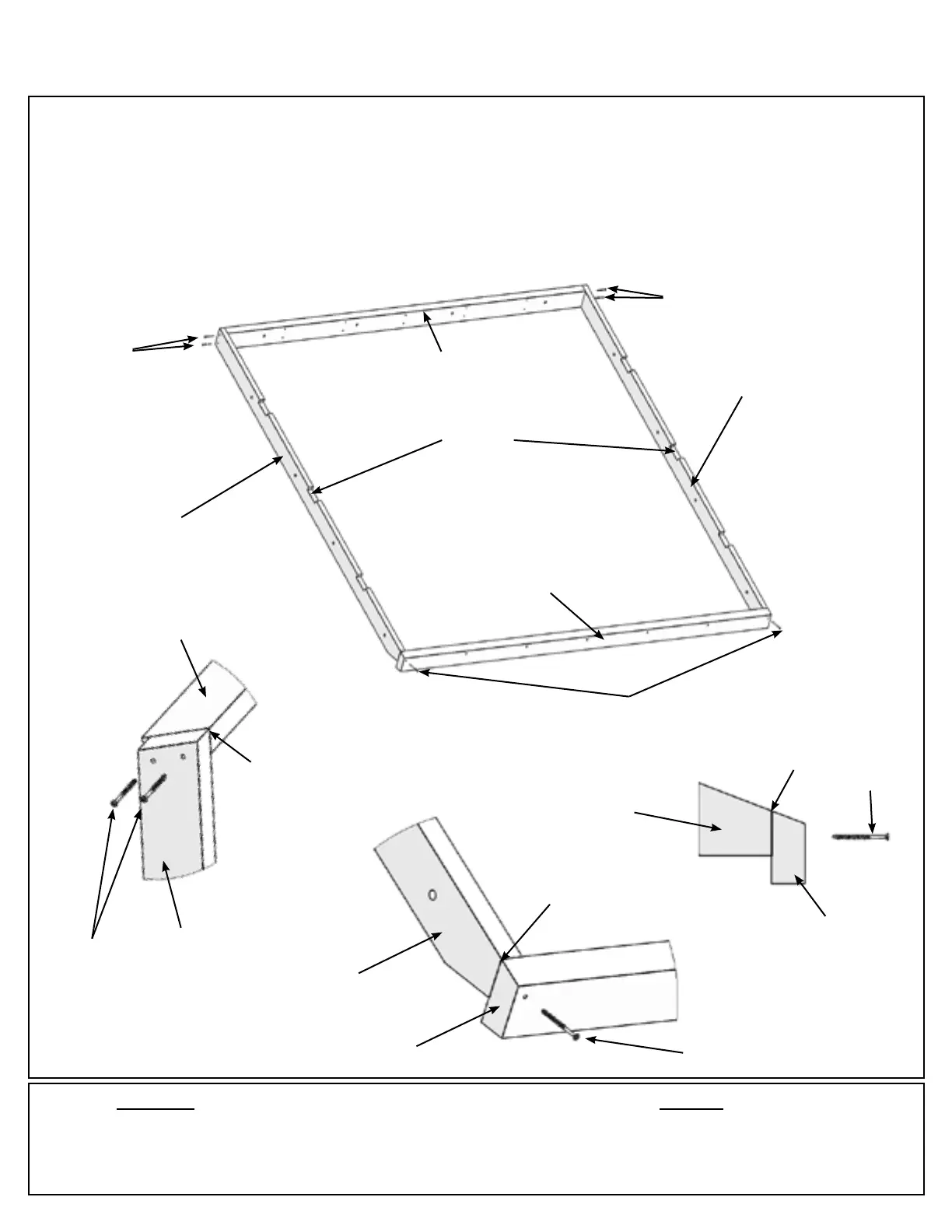

Step 18: Large Roof Assembly
Part 1
F18.1
12 x #8 x 2-1/2” Wood Screw
F18.3
Note notches
facing up
Flush
#8 x 2-1/2”
Wood Screws
Flush
F18.2
(678) Mid
Fascia
A: On each side of one (680) Rafter Top place one (675) Middle Rafter so the tops and edges are ush then
attach with two #8 x 2-1/2” Wood Screws per side. (F18.1 and F18.2)
B: Place one (678) Mid Fascia on the bottom of each (675) Middle Rafter so the sides and top are ush then
attach with one #8 x 2-1/2” Wood Screw at each end. (F18.1, F18.3 and F18.4)
C: Repeat Steps A and B to make a second Large Roof Assembly.
4 x (675) Middle Rafter
2 x (678) Mid Fascia
2 x (680) Rafter Top
(675) Middle
Rafter
(680)
Rafter Top
#8 x 2-1/2”
Wood Screws
(675) Middle
Rafter
#8 x 2-1/2”
Wood Screws
Top
Top
Bottom
(675) Middle
Rafter
#8 x 2-1/2”
Wood Screws
(680)
Rafter Top
Bottom
(675) Middle
Rafter
(678) Mid
Fascia
#8 x 2-1/2”
Wood Screws
(675) Middle
Rafter
Flush
#8 x 2-1/2”
Wood Screws
(678) Mid
Fascia
F18.4
To Next Page
