Step 18: Large Roof Assembly
Part 4
2 x (689) Soft
2 x (645) Spacer
2 x (695) Spacer Long

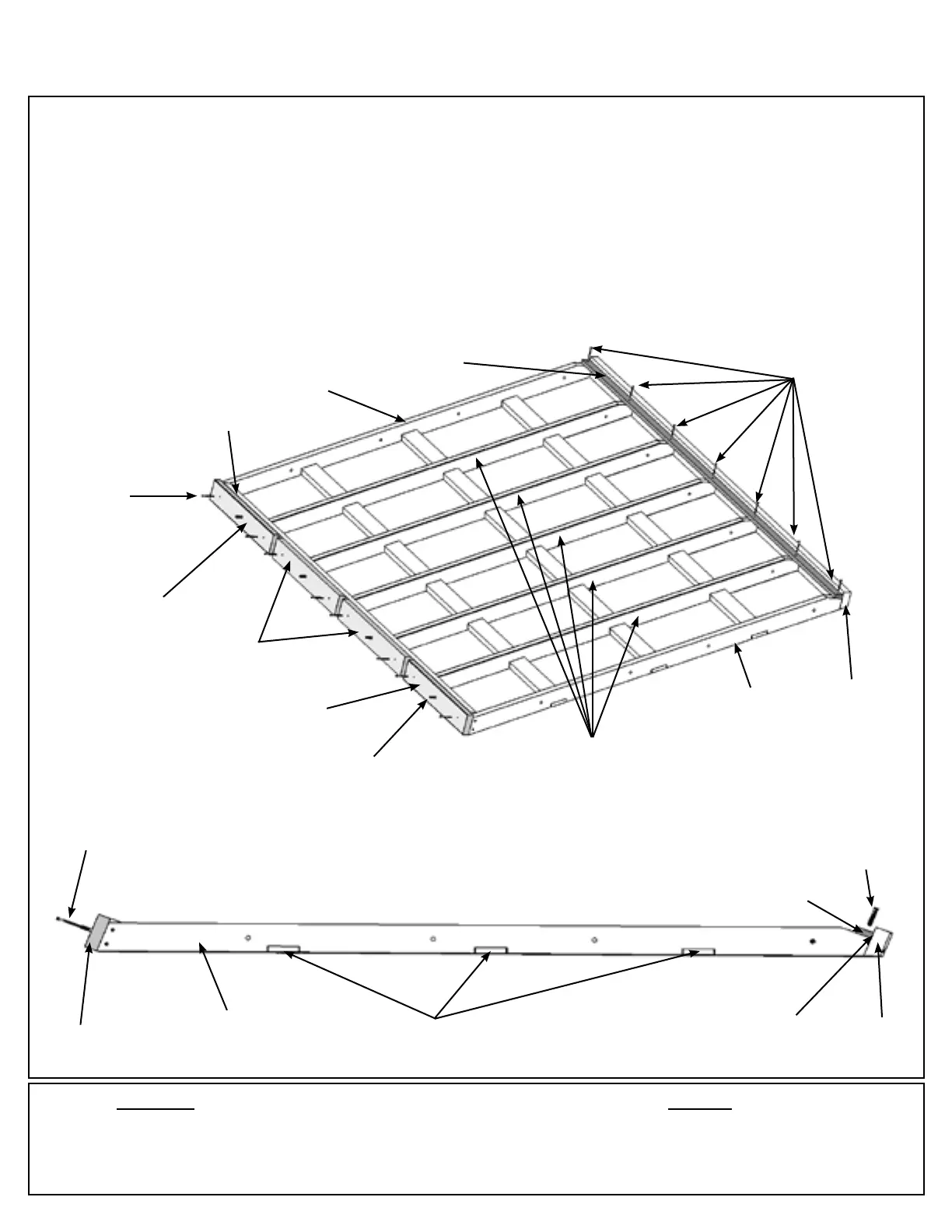

F: Turn over each Large Roof Assembly then place one (689) Soft tight to the top of (678) Mid Fascia (689)
Soft must be ush with the outside edge of (675) Middle Rafter. Attach (689) Soft to each (675) Middle
Rafter and each (633) Centre Rafter with seven #8 x 1” Pan Screws. Install (689) Soft on both Large Roof
Assemblies. (F18.11 and F18.12)
G: On only one Large Roof Assembly, place one (645) Spacer at each end of (680) Rafter Top and two (695)
Spacer Longs, evenly spaced, in between the (645) Spacers. To nd the correct placement of each spacer
insert one 1/4 x 4-1/4” Hex Bolt through (680) Rafter Top into each (645) Spacer and (695) Spacer Long. The
bolts are for placement only, they are to be removed at the end of this step. Attach each spacer to (680) Roof
Top with two #8 x 2-1/4” Wood Screws per spacer. Remove bolts, to be used in Step 24. (F18.11 and F18.12)
HardwareWood Parts
14 x #8 x 1” Pan Screw
8 x #8 x 2-1/4” Wood Screw
4 x 1/4 x 4-1/4” Hex Bolt (for placement
purposes only)
Side View
F18.11
F18.12
Flush and
Tight
#8 x 2-1/4”
Wood Screws
x 2 per spacer
(689) Soft
(633) Centre
Rafter
(678) Mid
Fascia
(675)
Middle
Rafter
(680) Rafter Top
(675)
Middle
Rafter
(679) Centre Strap
(689) Soft
(678) Mid
Fascia
#8 x 1” Pan
Screws
(675)
Middle
Rafter
#8 x 2-1/4”
Wood Screws
x 2 per spacer
1/4 x 4-1/4” Hex Bolt
x 1 per spacer (for
placement purposes
only, to be removed)
(695)
Spacer
Long
(645)
Spacer
(645)
Spacer
(645)
Spacer
Back View
Top
Bottom
#8 x 1” Pan
Screws
