Yardistry YM12952 - Part 3: Center Strap Attachment

50 support@yardistrystructures.com
#8 x 1½ Wood Screw
Top
Centre Strap x3
Y50000-679
Keep Centre Straps
flush to Middle Rafter
at the ends
Middle Panel
Y010XX-196 X1
Layout panels w/o fastening just yet.
Panel is flush to Roof Top
Centred on Middle Rafter
1
1
9
.
6
3
0
3
7
.4
7
D
i
ago
nal
D
i
m
e
nsi
o
n
#8 x 1½ Wood Screw
Top
Centre Strap x3
Y50000-679
Keep Centre Straps
flush to Middle Rafter
at the ends

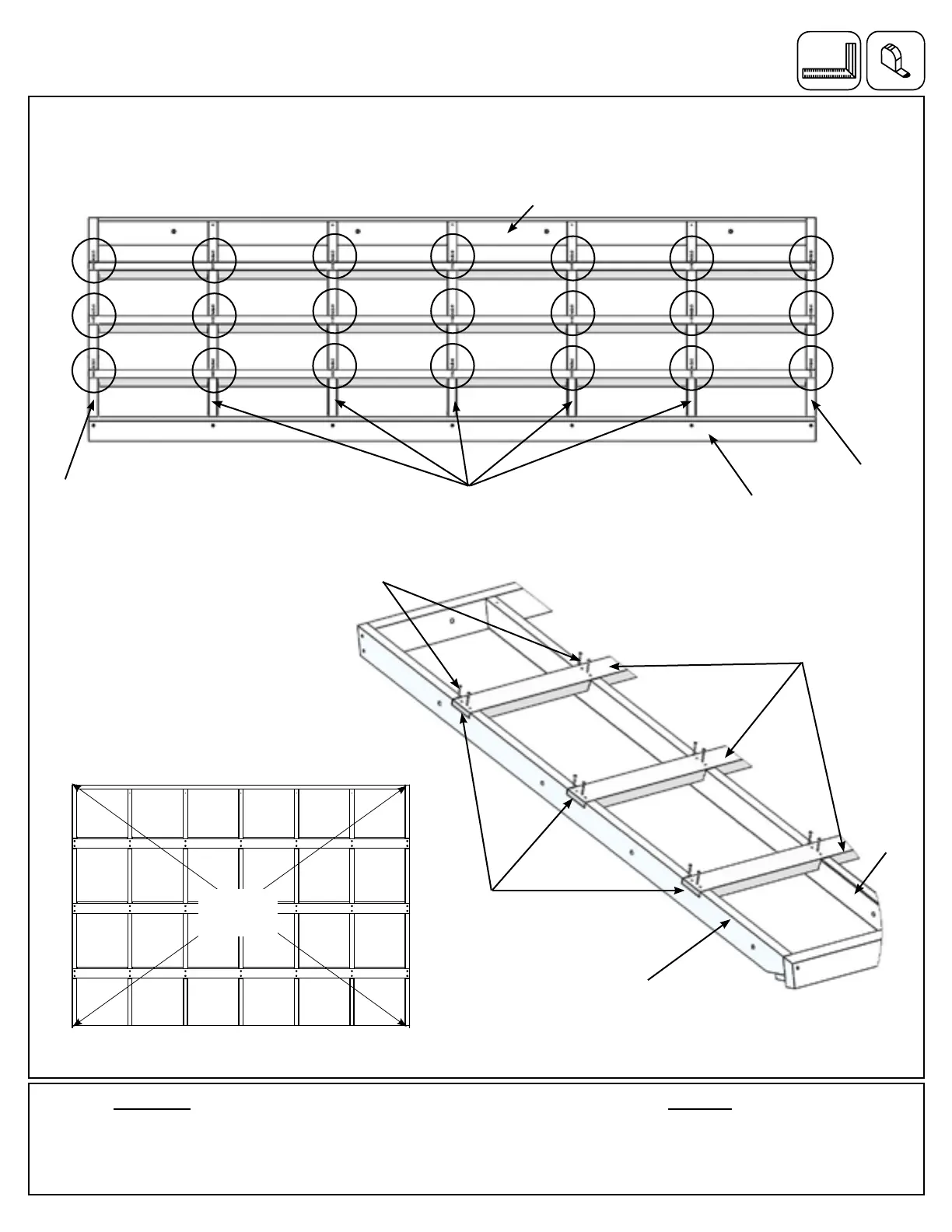

Step 18: Large Roof Assembly
Part 3
6 x (679) Centre Strap
E: Place three (679) Centre Straps in the notches of each (675) Middle Rafter and each (633) Centre Rafter so the
ends are ush to the outside edges of (675) Middle Rafters. Make sure assembly is square then attach with 14 #8
x 1-1/2” Wood Screws per strap. Repeat for second Large Roof Assembly. (F18.9, F18.10 and F18.11)
HardwareWood Parts
84 x #8 x 1-1/2” Wood Screw
#8 x 1-1/2” Wood
Screws x 14 per strap
F18.9
F18.10
(633) Centre
Rafter
(678) Mid
Fascia
(675)
Middle
Rafter
(680) Rafter Top
(675)
Middle
Rafter
(633)
Centre
Rafter
Flush
(675)
Middle
Rafter
(679) Centre Strap
124”
(3149.6 mm)
Top
Bottom
Front View
F18.11
