Yardistry YM12952 - Step 20: Attach Roof Panels - Large Roof Assemblies; Roofing Material Handling Reminder; Part 1: Middle Panel Attachment

53 support@yardistrystructures.com
#8 x 1" Hex Roofing Screw x12
Middle Panel
Y010XX-196 X4
ASSEMBLY X 2
Middle Panel
Y010XX-196 X1
Layout panels w/o fastening just yet.
Panel is flush to Roof Top
Centred on Middle Rafter
1
1
9
.
6
3
0
3
7
.4
7
D
i
ago
nal
D
i
m
e
nsi
o
n
Hardware

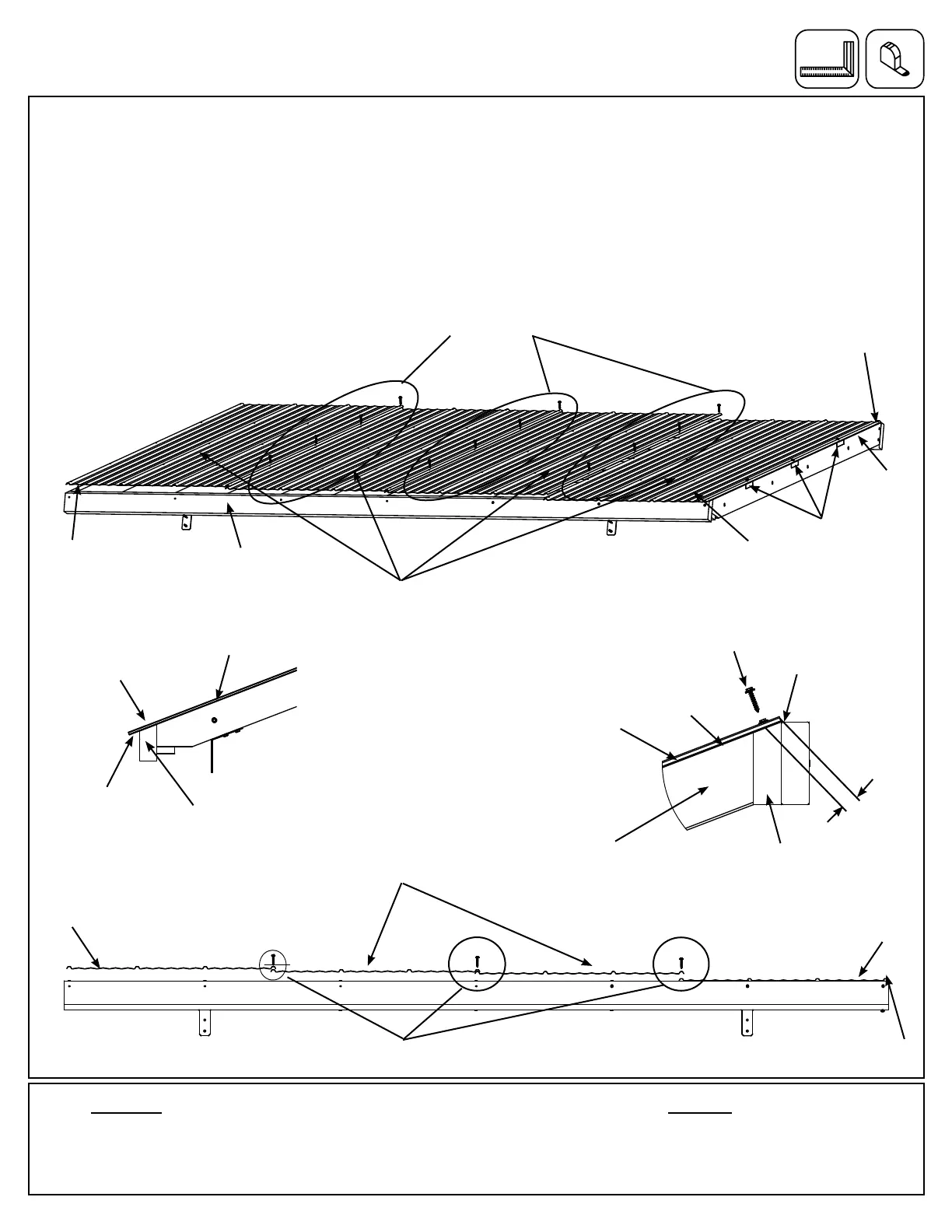

Step 20: Attach Roof Panels - Large Roof Assemblies
Part 1
A: Turn over Large Roof Assemblies, make sure they are still square. Place four Middle Panels ush to the top and
sides of (680) Rafter Top and (675) Middle Rafter. There will be an overhang at the bottom over (678) Mid Fascia.
The panels overlap and screw holes line up as shown in F20.4. Attach each panel, where they overlap to each
(679) Centre Strap and to each (675) Middle Rafter with 12 #8 x 1” Roong Screws. Do not install screws along the
bottom row. (F20.1, F20.2, F20.3 and F20.4)
Note: The holes at the top of each Middle Panel are 3/4” from the top. (F20.3)
24 x #8 x 1” Roong Screw
Roof Parts
8 x Middle Panel
Side View
#8 x 1” Roong
Screws
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Slight overhang
3/4”
F20.3
Front View
No screws along
bottom row
IMPORTANT!: Before starting this step, be sure to refer back to pages
34 & 35 regarding correct installation and handling of the roong.
(675) Middle
Rafter
Middle Panel
(675) Middle
Rafter
F20.2
(680) Rafter Top
(678) Mid
Fascia
(680) Rafter Top
(675)
Middle
Rafter
Middle Panel
(678) Mid
Fascia
(679) Centre Strap
Top
Bottom
F20.1
Middle Panel
Flush
F20.4
#8 x 1” Roong
Screws x 20
No screws along
bottom row
Middle Panel
Panels overlap
at the seams
Middle Panel
Middle Panel
Side View
Bottom
Top
Side View
Flush
Middle Panel
Y010XX-196 X1
Layout panels w/o fastening just yet.
Panel is flush to Roof Top
Centred on Middle Rafter
1
1
9
.
6
3
0
3
7
.4
7
D
i
ago
nal
D
i
m
e
nsi
o
n
#8 x 1" Hex Roofing Screw x12
Middle Panel
Y010XX-196 X4
ASSEMBLY X 2
