Step 20: Attach Roof Panels - Large Roof Assemblies
Part 2
B: Attach panels to (675) Middle Rafter and each (679) Centre Strap in the remaining holes with 40 #8 x 1” Roong
Screws as shown in F20.5. Do not install screws along the bottom row.
C: Repeat Steps A and B for both Large Roof Assemblies.
80 x #8 x 1” Roong Screw
DO NOT overtighten
screws, could cause
damage to roong
material

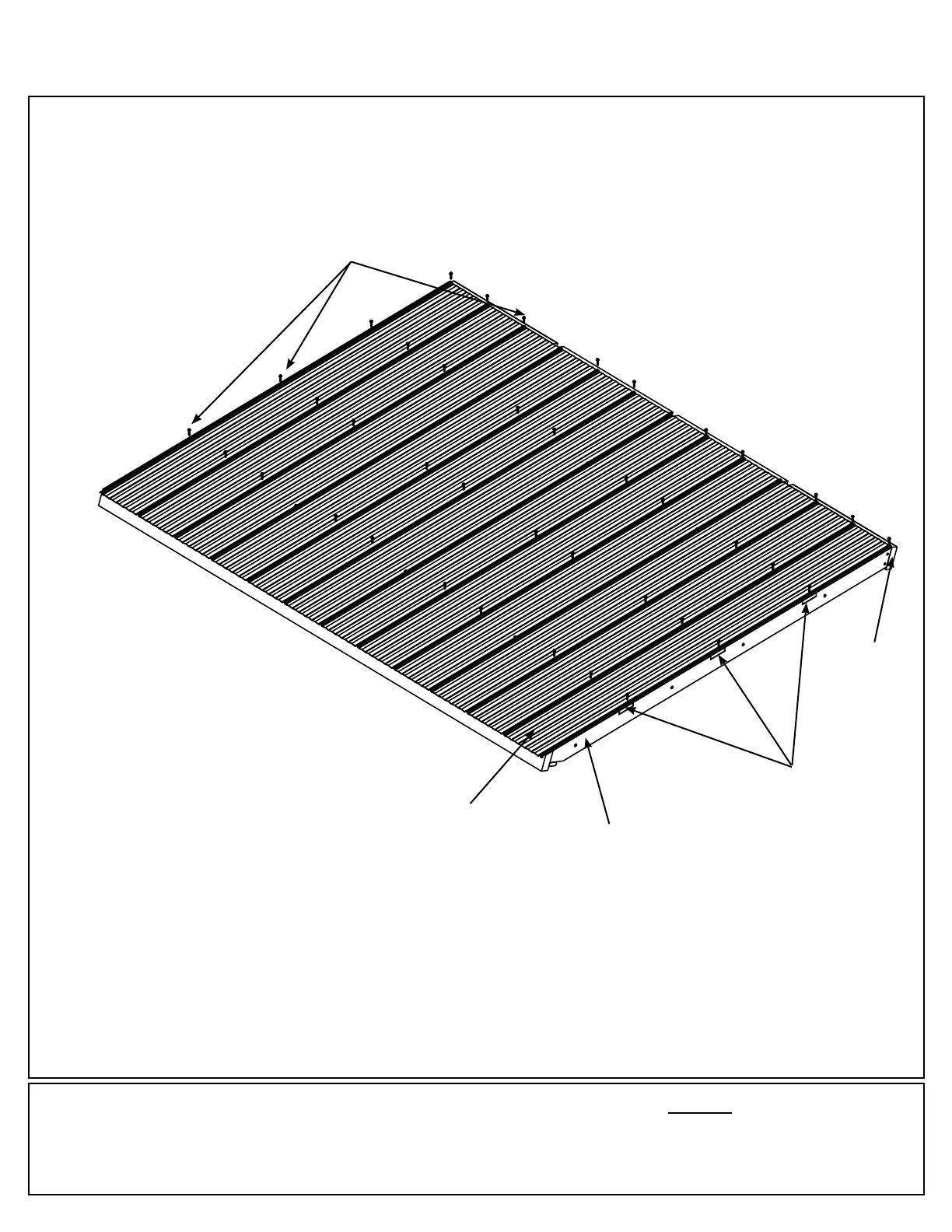

F20.5
No screws along
bottom row
#8 x 1” Roong
Screws x 64
Bottom
Top
Middle Panel
(680) Rafter
Top
(675) Middle
Rafter
(679) Centre Strap
