Yardistry YM12952 - Step 24: Place Peak Cap Assembly on Roof Panels; Part 1: Peak Cap Component Assembly

59 support@yardistrystructures.com
Step 24: Place Peak Cap Assembly on Roof Panels
Part 1
A: Slide one Peak Cap Detail in each end of Peak Cap Centre and attach with three 1/4 x 1/2” Pan Bolts
(with 1/4” lock nut) per side. (F24.1 and F24.2)
Hardware
6 x 1/4 x 1/2” Pan Bolt (1/4” lock nut)
Components:
2 x Peak Cap Detail
1 x Peak Cap Centre

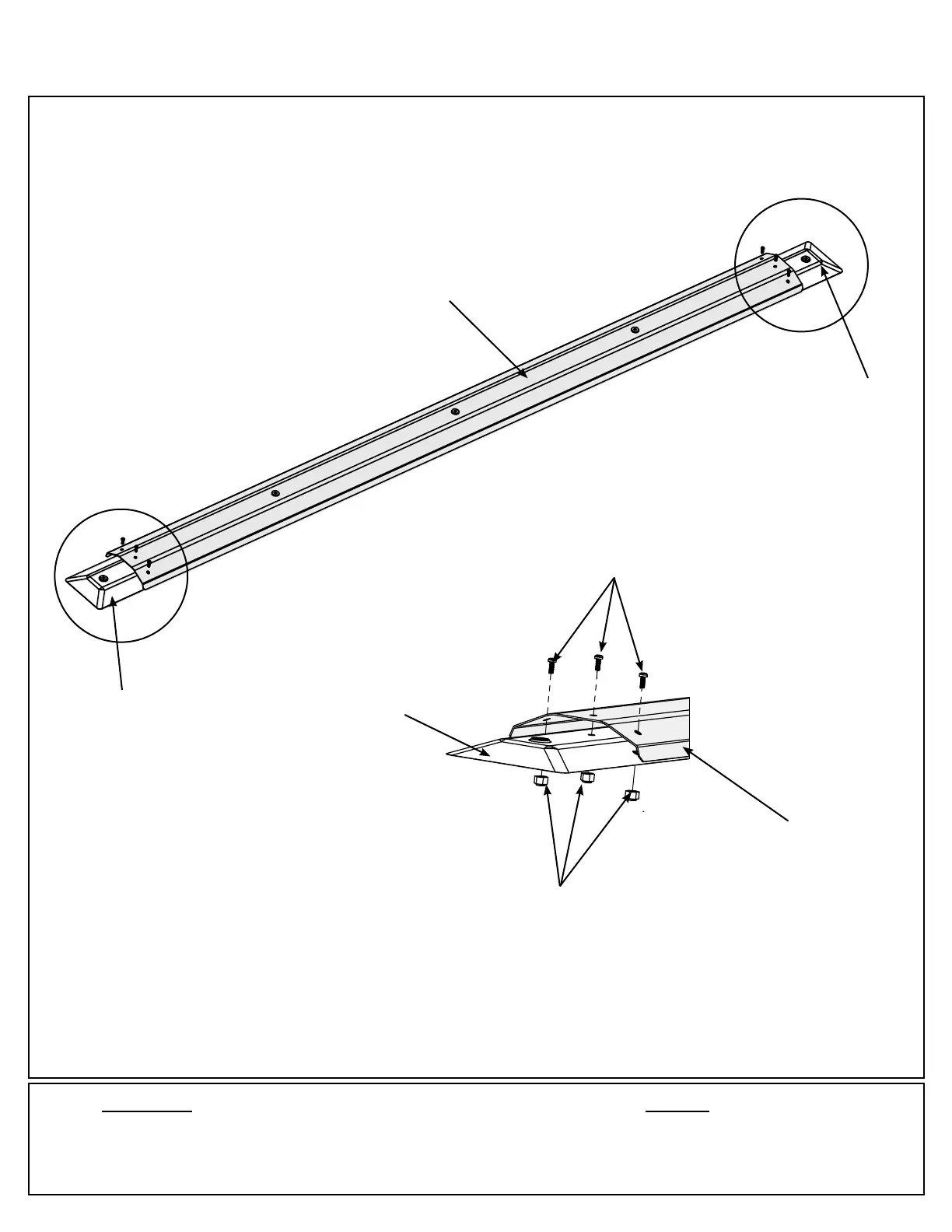

F24.1
1/4” Lock Nut
1/4 x 1/2”
Pan Bolt
Peak Cap Detail
F24.2
Peak Cap Detail
Peak Cap
Detail
Peak Cap Centre
Peak Cap
Centre
