YARDMAX YP7065 User Manual

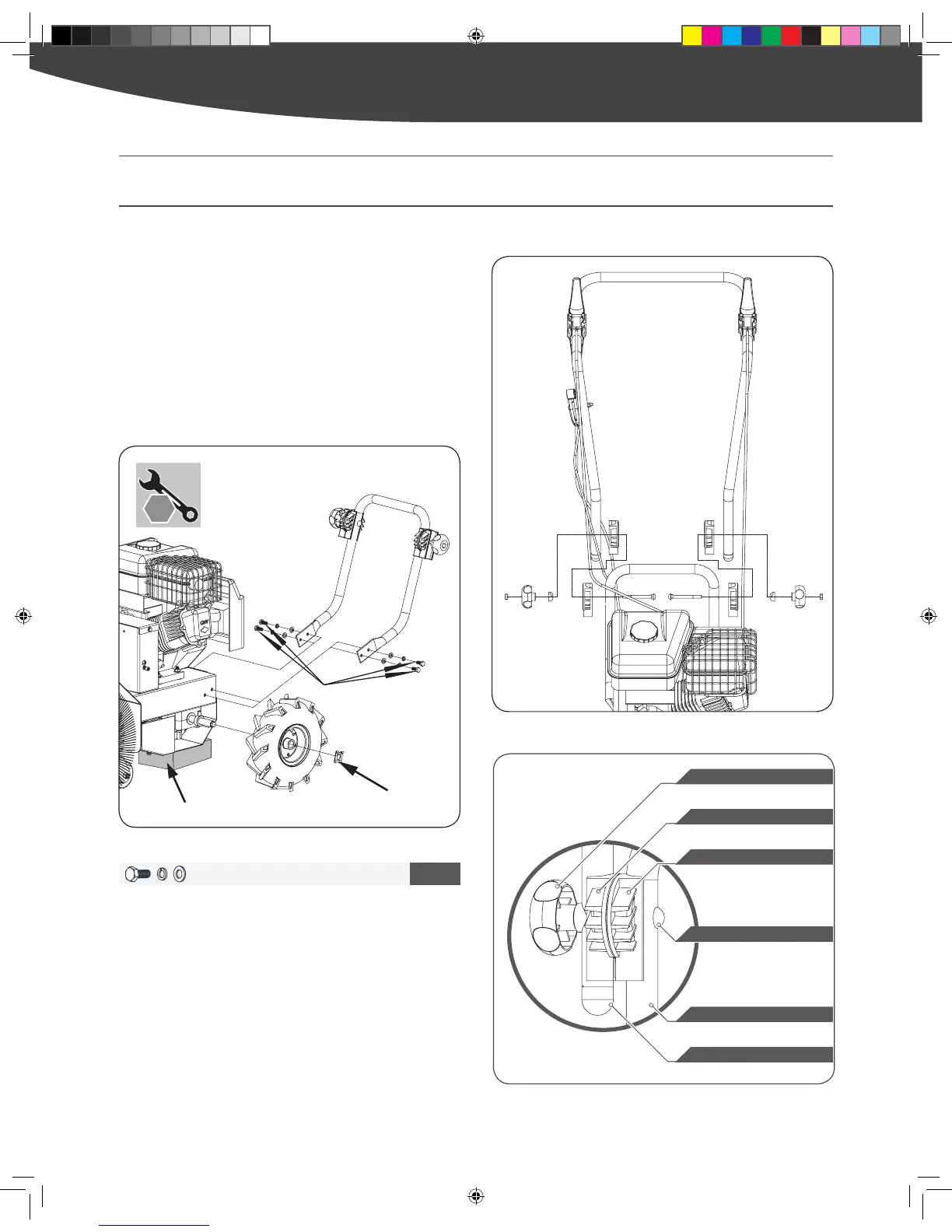

ASSEMBLY
This power sweeper was partially assembled at the factory. To assemble your machine follow the below instructions.
Figure 2
M8 X 20 X 4
1
Figure 3b
Figure 3a
10 mm
13 mm
18 mm
16 mm
7 mm
8 mm
LOWER HANDLE
UPPER HANDLE
2.
3.
A piece of foam of power sweeper packaging placed under
gearbox housing is recommended. Slide up the DK circlips
from the wheel axles, disassemble the wheels.
Mount the lower handle to the engine base with bolts
M8x20, spring washers 8 and at washers 8. Then mount the
wheels and x them by the circlips.
Remove the foam. (See
Figure 2
)
Disassemble the handle adjustment knobs on the lower
handle, and slide the upper handle onto the outside of the
lower handle. (See
Figure 3a
)
Secure the two parts of the handle together with the handle
adjustment knob assembly. Refer to
Figure 3b
for the correct
order of assembly.
1.
1.
2.
Knob
Outside Adjuster
Inside Adjuster
Bolt
Lower Handle
Upper Handle
M8x20 (x4)
Foam
DK Circlip
9
|
Assembly
32530US25M100.indd 9 2016/9/23 14:48:39
