14
Before Assembly

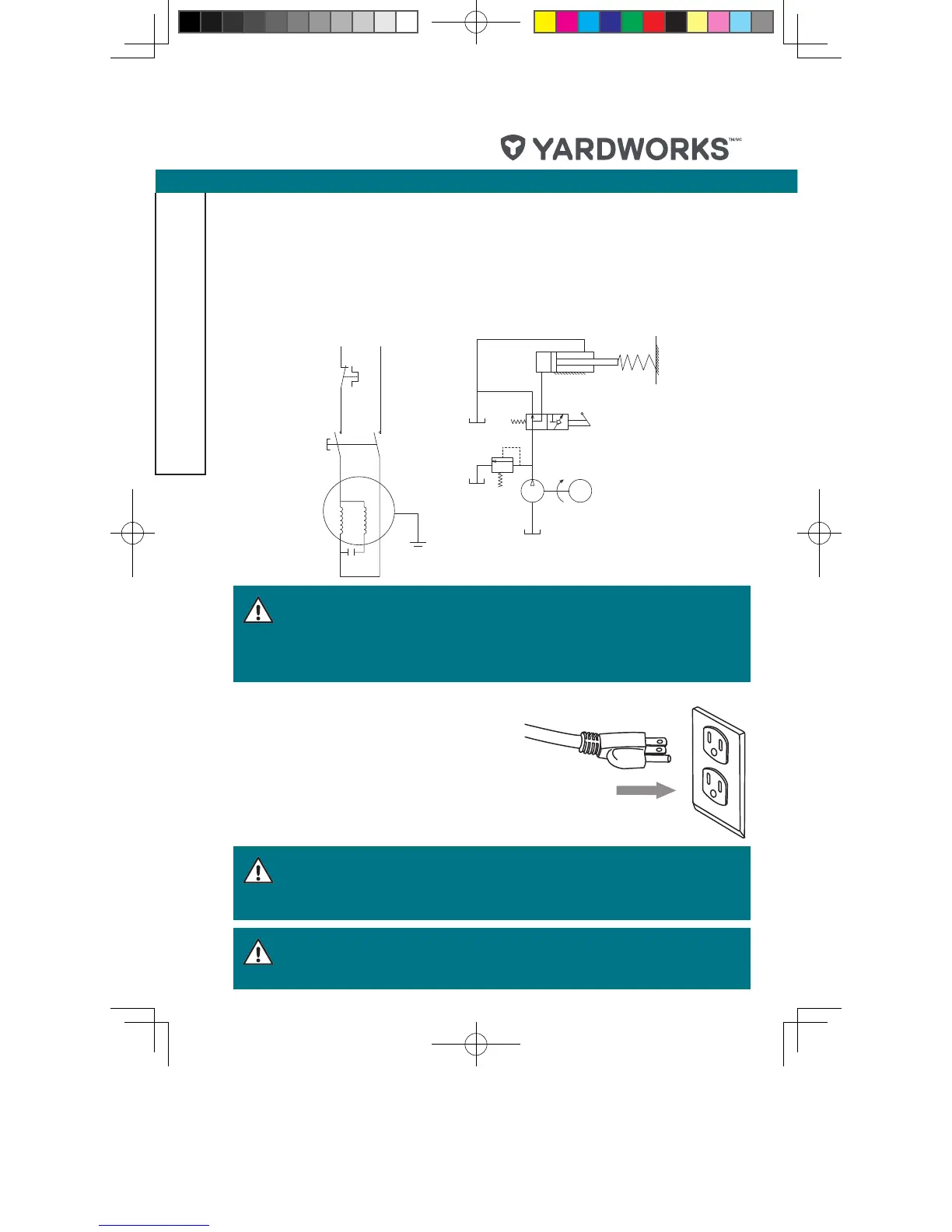

ELECTRICAL REQUIREMENTS
• Use a standard 120 V (±10%) 60 Hz (±1 Hz) AC only electrical supply that has under-
voltage, over-voltage, and over-current protection devices as well as a residual current
device (RCD) with a maximum residual current rated at 0.03 A for the log splitter.
M
L
KH
SB
M
C
PE
N
WIRING DIAGRAM PLUMBING DIAGRAM
WARNING! To reduce the risk of electric shock, this equipment has a
grounding type plug that has a third (grounding) pin. This plug will only
fit into a grounding type outlet. If the plug does not fit into the outlet,
please contact a qualified electrician to install the proper outlet.
Do not modify the plug or remove the grounding pin.
WARNING! Keep the extension cord clear of the working area. Route
the cord away from foot traffic so that it will not be tripped over or get
caught in lumber, tools, or other obstructions. Failure to do so can
result in serious physical injuries.
WARNING! Always check all cords before each use. Never use a
damaged cord in order to avoid electrical shock resulting in serious
injury. Replace damaged cords before operating the log splitter.
120V
• If an extension cord is needed, use only a 3-wire
extension cord that has a 3-prong grounded
plug. The cord must be plugged into a matching
outlet that has 3 poles in the receptacle.
The extension cord must be no longer than
32.5' (10 m), have a cross-section of no less
than 1/8" (2.5 mm), and a wire size (A.W.G.) of
12. When working with the log splitter outdoors,
use only an extension cord that is clearly marked
for outdoor use.
w09a_YW_060_3772_0_9TElectricLogSplitter_GB.indd 14 2017/3/6 22:26:44
