Yardworks 060-3772-0 - Assembly; Assembling the Wheels; Assembling the Rubber Feet

model no. 060-3772-0 | contact us 1.866.523.5218 model no. 060-3772-0 | contact us 1.866.523.5218
15
CAUTION! To avoid possible electric shock, switch off the power supply
at the main fuse or circuit breaker box before assembling, servicing, or
cleaning the log splitter.
Assembly

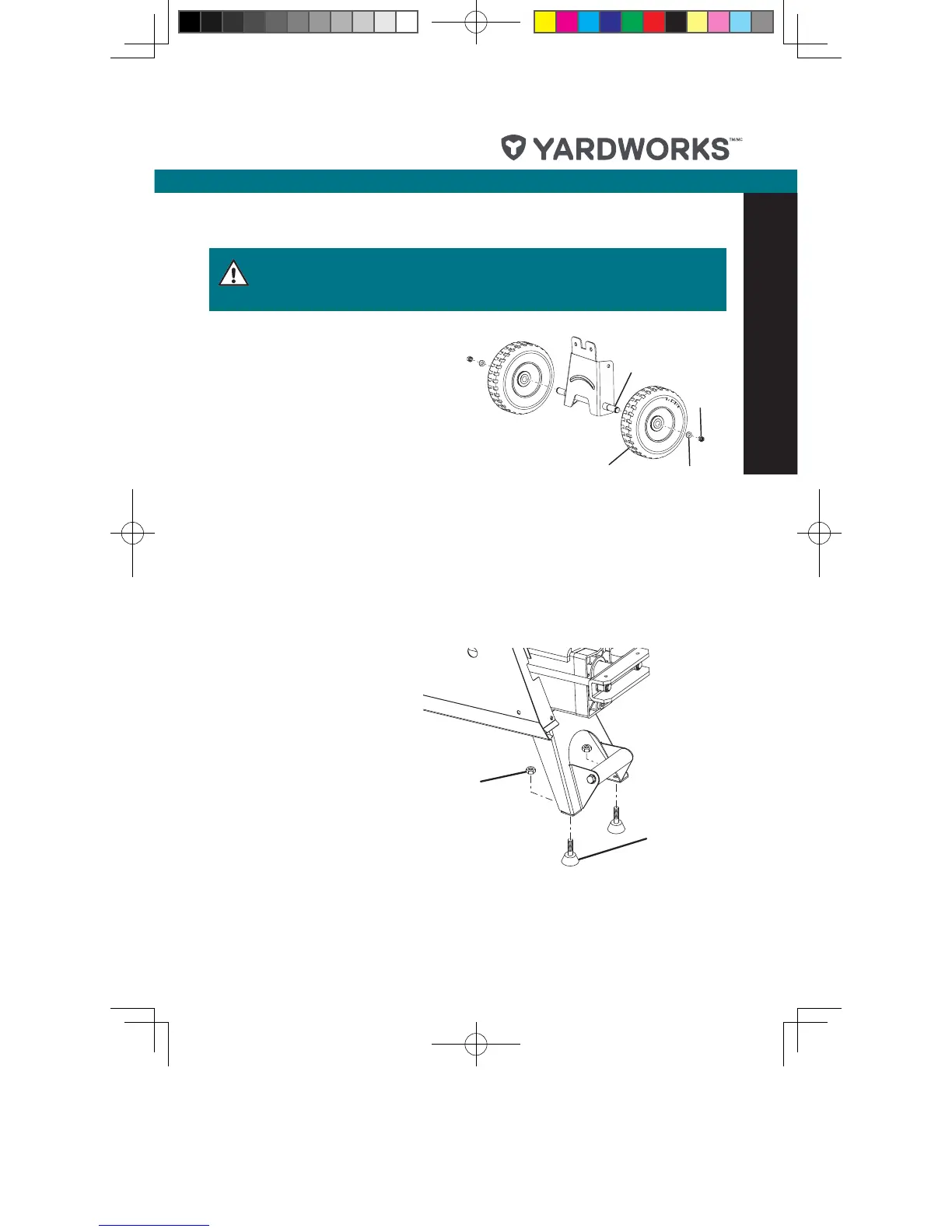

1. ASSEMBLING THE WHEELS
• Remove the wheel nut and washer from
the axle.
• Install the wheels with the valve stem
facing outward.
• Insert the washer and the wheel nut.
• Tighten the wheel nut.
• Repeat the same procedures for the
other wheel.
2. ASSEMBLING THE RUBBER FEET
• Remove the nuts on the rubber feet.
• Insert the rubber foot through the hole underneath the front leg.
• Attach the nut and tighten the rubber foot in place.
• Repeat the same procedures for the other foot.
Axle
Nut
Washer
Wheel
Rubber foot
Nut
