3.1 REMOVING AND REPLACING THE COVERS OF
THE BRAKING UNIT (MODELS CDBR-2015B,
-2015C, -2022B, -2022C,-4030B, -4045B)

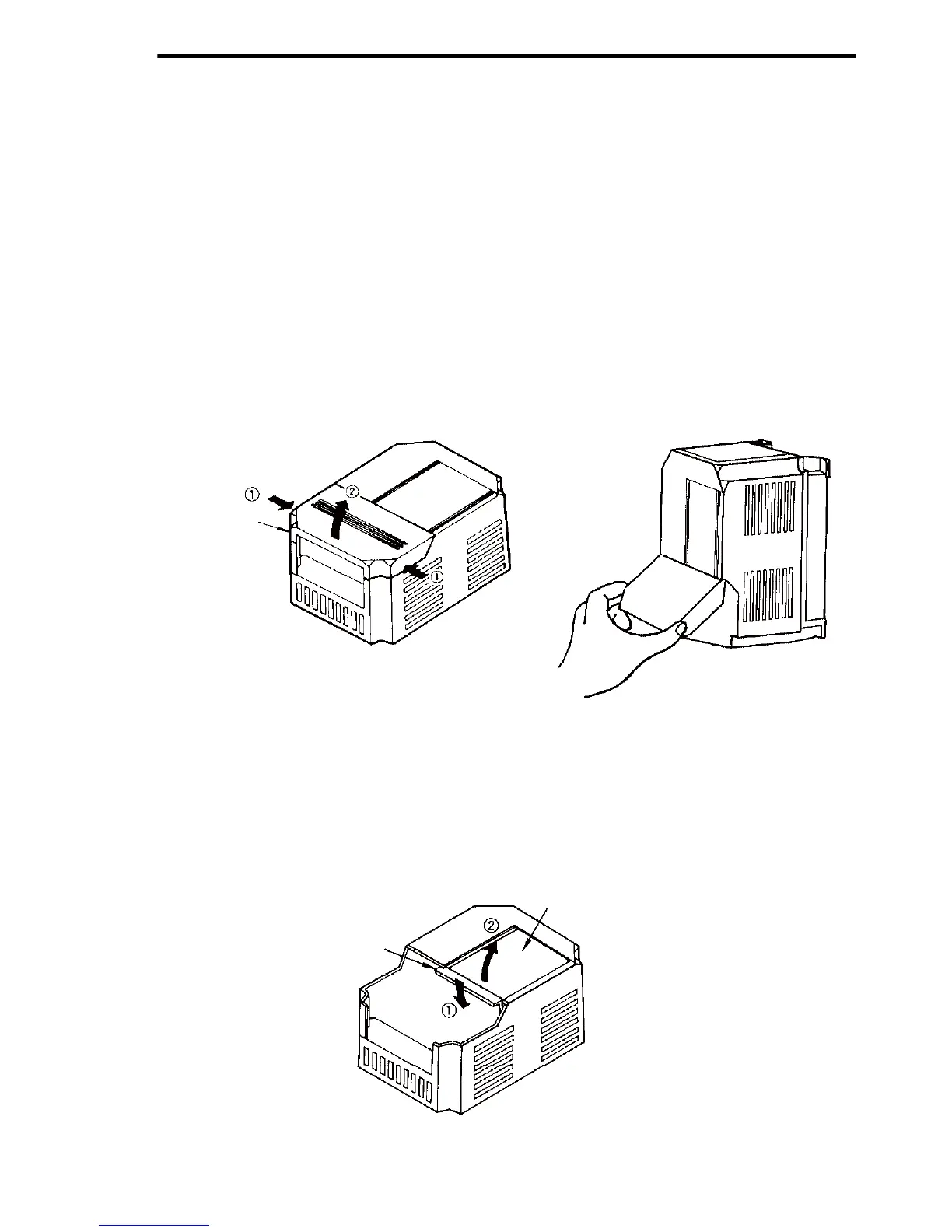

(1) Romoving and Replacing the Terminal Cover
For removing, grasp the terminal cover at c on borh sides and then lift in
the direciton of d. For replacing, reverse the method.
(2) Removing and Replacing the lndicating Cover
Remove the terminal cover first. Push down on the lever in the direction of
c and lift the cover in the direction of d. For replacing, reverse the
method.
