4 OPERATION
43

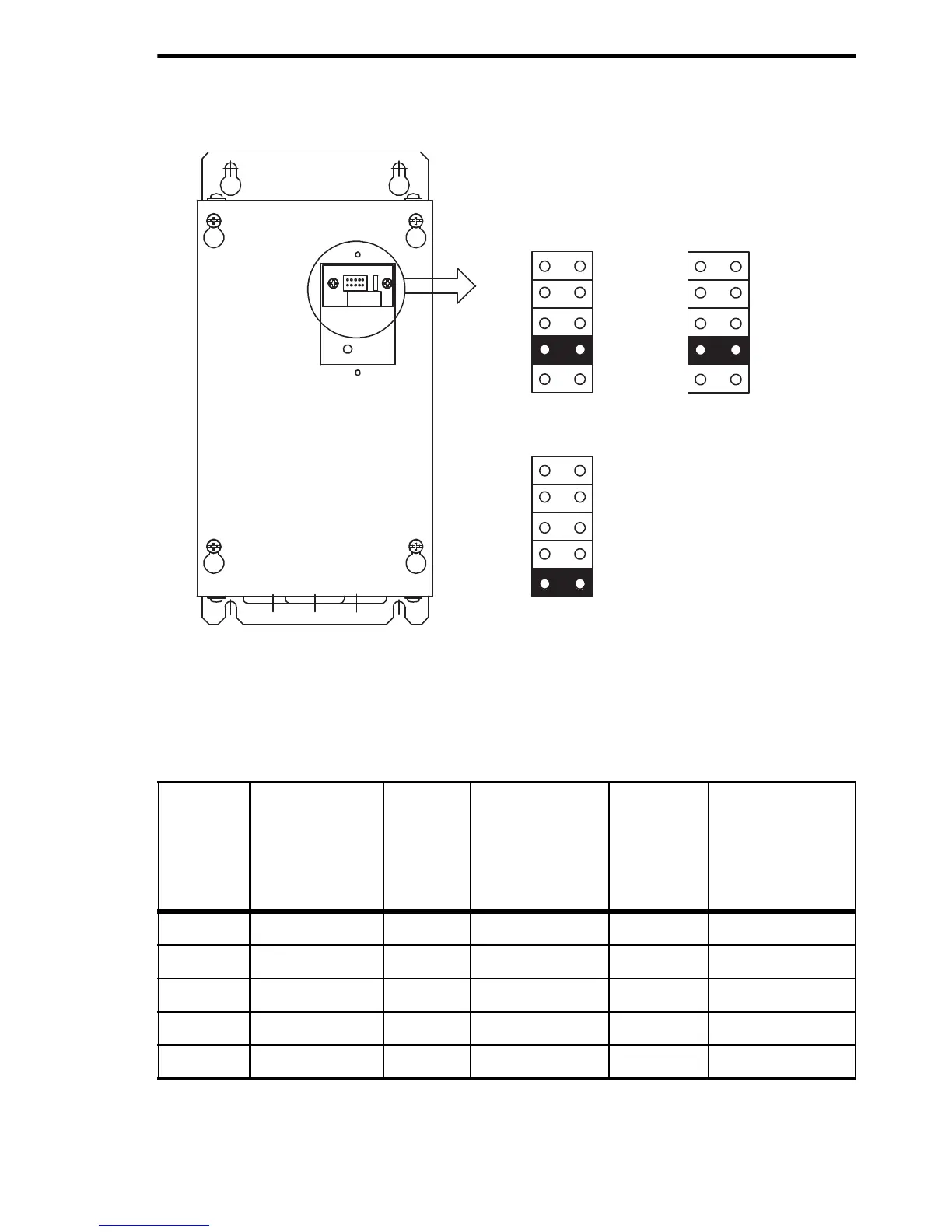

Fig. 22 Braking Unit Power Supply Voltage Selection
(Models CDBR-2045B, -2110B, -4090B, -5037B, -5110B, -5300B,
Indicating Cover Removed)
* Allowable voltage fluctuation is ±10%
200 V
208 V
220 V
230 V
400 V
380 V
440 V
415 V
460 V
500 V
575 V
575 V class
200 V class
400 V class
Table 3 Power Supply Voltage Selection Connector and Braking Start Voltage
200 V
Class*
Power
Supply
Voltage
Braking Start
Voltage
(PN Bus-bar
Voltage)
400 V
Class*
Power
Supply
Voltage
Braking Start
Voltage
(PN Bus-bar
Voltage)
575 V
Class*
Power
Supply
Voltage
Braking Start
Voltage
(PN Bus-bar
Voltage)
230 V 380 V (TYP) 460 V 760 V (TYP) 575 V 950 V (TYP)
220 V 365 V (TYP) 440 V 730 V (TYP) – –
208 V 345 V (TYP) 415 V 690 V (TYP) – –
200 V 330 V(TYP) 400 V 660 V (TYP) 500 V 825 V (TYP)
– – 380 V 630 V(TYP) – –
