2 Mechanische Installation

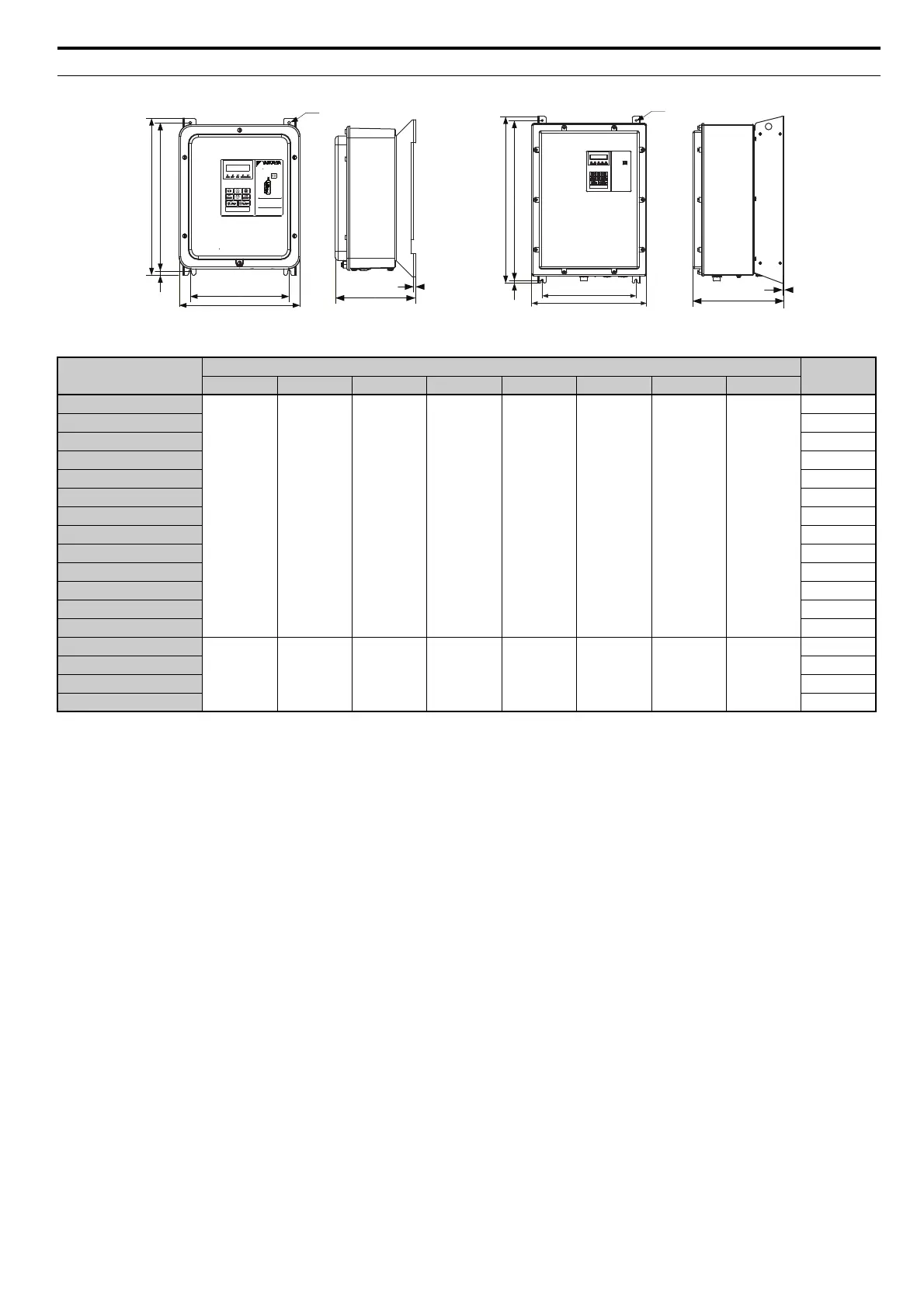

YASKAWA Europe TOMP_C710606_75A V1000 IP66 - Kurzanleitung DE 9
 Abmessungen
Modell
CIMR-VC
Abmessungen (mm)
Gewicht
(kg)
Abb. W H D W1 H1 H2 t1
BA0001
A 262 340 173.5 214 321 9 2
4.9
BA0002 4.9
BA0003 5.1
BA0006 5.7
BA0010 5.8
BA0012 6.1
4A0001 5.2
4A0002 5.2
4A0004 5.3
4A0005 5.3
4A0007 5.7
4A0009 5.7
4A0011 6.0
4A0018
B 345 500.5 273.5 282 458.5 10 2
19.8
4A0023 19.9
4A0031 21.0
4A0038 21.3
H1
W1
H
H2
.
W
IP6 6
V 1000
Ø
6.5
D
t1
W1
W
H1
H
H2
D
t1
Abb. A
Abb. B
Ø
6.6
