Date: 08/01/05, Rev: 05-08 Page 3 of 17 TM.F7SW.096

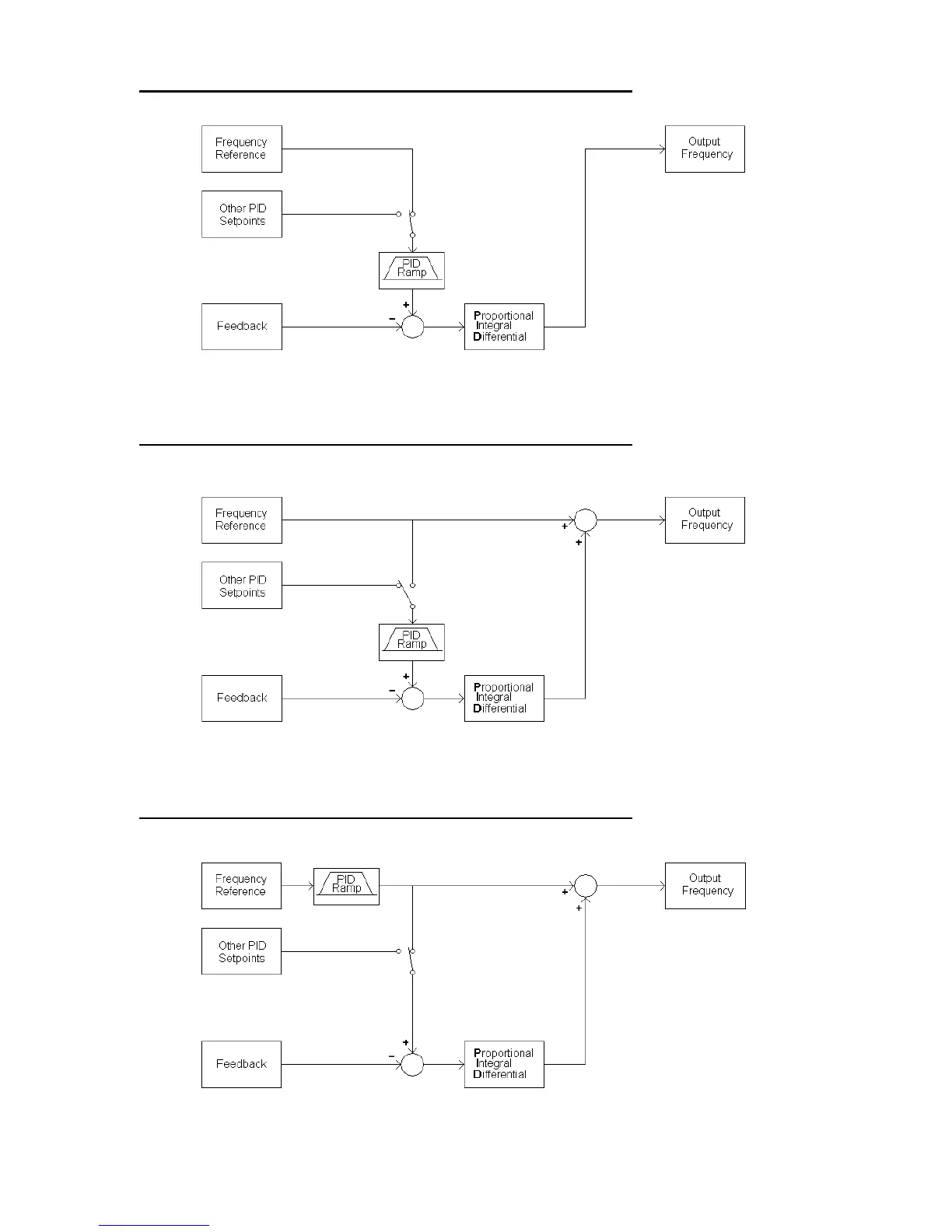

1.1 Simplified Block Diagram of Enhanced PID: 2 Input (B5-01 = 1 or 2)

1.2 Simplified Block Diagram of Enhanced PID: 3 Input (B5-01 = 3 or 4)

(PID setpoint is independent of frequency reference)

1.3 Simplified Block Diagram of Enhanced PID: 2 Input (B5-01 = 3 or 4)

(PID setpoint is same as the frequency reference)
