YASKAWA MP Series Driver Manual

MP Series SIO (Extension) Driver
GP-Pro EX Device/PLC Connection Manual
6

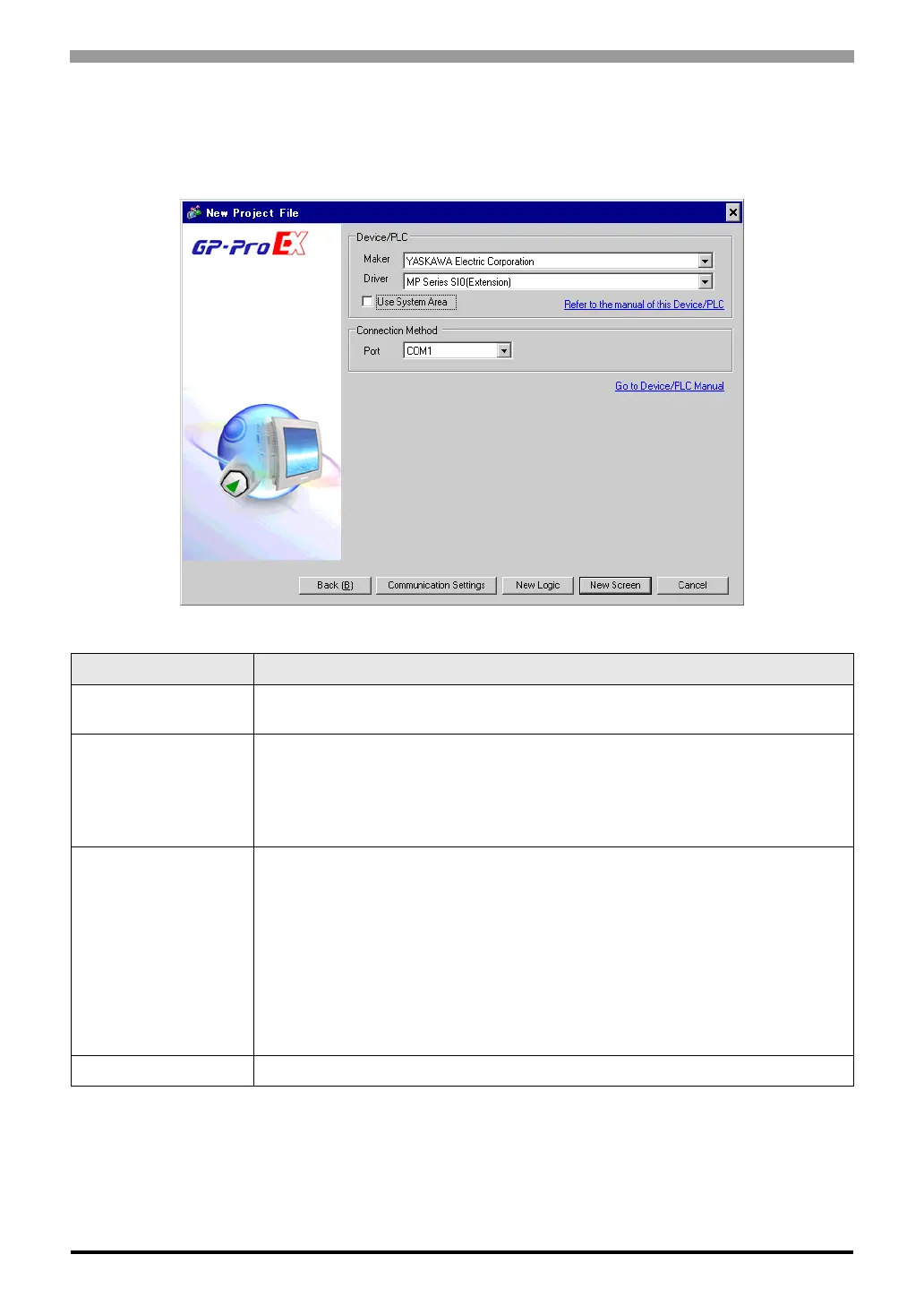

2 Selection of External Device
Select the External Device to be connected to the Display.
Setup Items Setup Description
Maker
Select the maker of the External Device to be connected. Select "YASKAWA Electric
Corporation".
Driver
Select a model (series) of the External Device to be connected and connection method.
Select "MP Series SIO (Extension)".
Check the External Device which can be connected in "MP Series SIO (Extension)" in
system configuration.
)"1 System Configuration" (page 3)
Use System Area
Check this option when you synchronize the system data area of Display and the device
(memory) of External Device. When synchronized, you can use the ladder program of
External Device to switch the display or display the window on the display.
Cf. GP-Pro EX Reference Manual "Appendix 1.4 LS Area (only for direct
access method)"
This can be also set with GP-Pro EX or in off-line mode of Display.
Cf. GP-Pro EX Reference Manual " 5.14.6 Setting Guide of [System Setting
Window][Main Unit Settings] Settings GuideSystem Area Setting"
Cf. Maintenance/Troubleshooting "2.14.1 Settings common to all Display
models System Area Settings"
Port Select the Display port to be connected to the External Device.
