YASKAWA Varispeed-616G3

OPTIONS

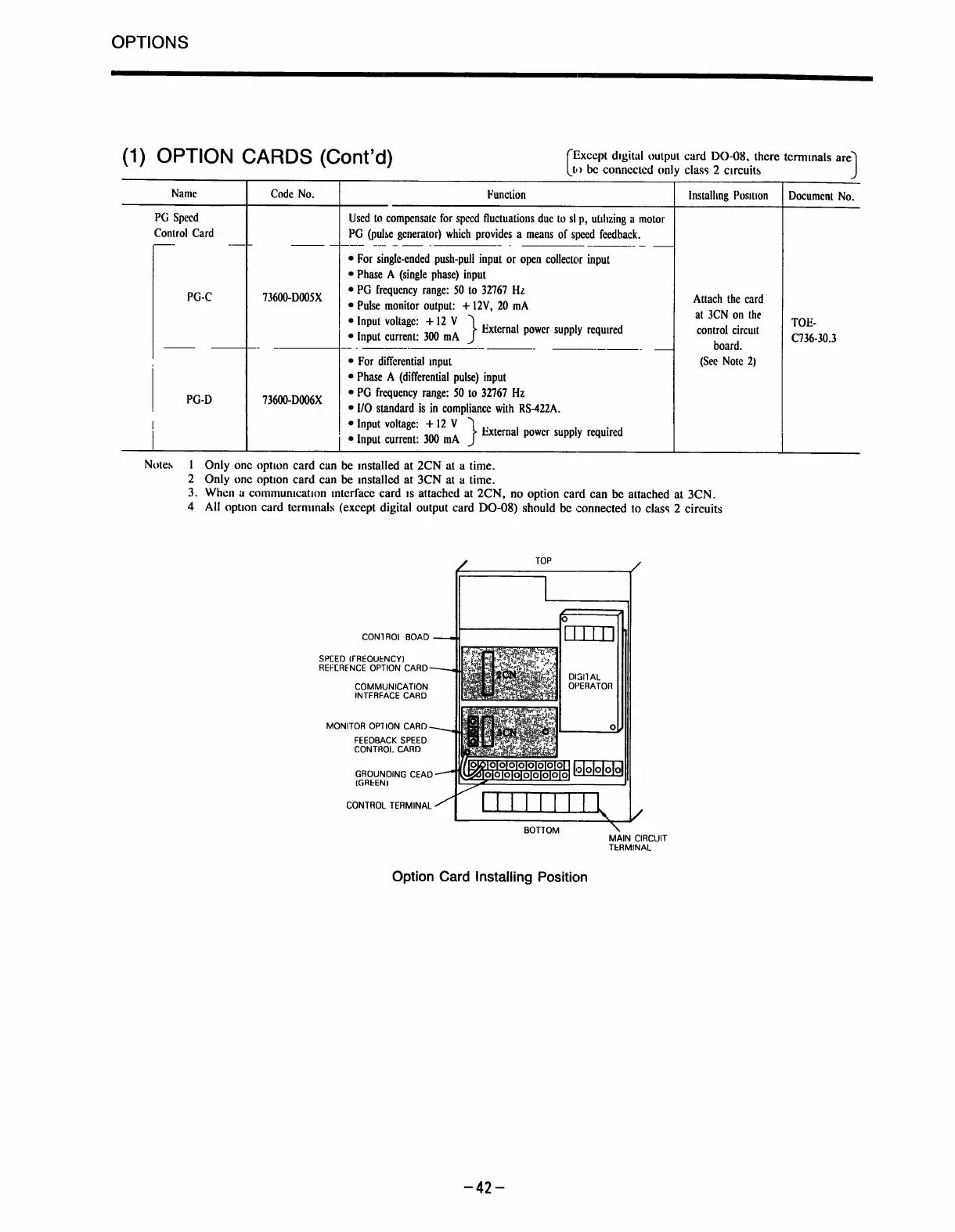

(1) OPTION
CARDS (Cont'd)
Notes

I

Only one option card can be installed at 2CN at a time .
2 Only one option card can be installed at 3CN at a time .
3 .
When a communication interface card is attached at 2CN, no option card
can be attached at 3CN .
4
All option card ternunals (except digital output card DO-08) should
be connected to class 2 circuits
SPEED (FREOUENCY)
REFERENCE OPTION CARD
COMMUNICATION
INTFRFACE CARD
MONITOR OPTION CARD
FEEDBACK SPEED
CONTROL CARD
BOTTOM
Option Card Installing Position
Except digital output card
DO-08, there tcrnunals
arel
(t .) be connected only class 2
circuits
Name
Code No . Function
Installing Position Document No .
PG Speed Used to compensate for speed fluctuations
due to sl p, utilizing a motor
Control Card PG (pulse generator) which provides a means
of speed feedback .
" For single-ended push-pull input or open
collector input
" Phase A (single phase) input
PG-C 73600-DO05X
"
PG
frequency range : 50 to 32767 Hz
Attach the card
" Pulse monitor output : + 12V, 20 mA
" Input voltage : + 12 V
at 3CN on the
TOE-
External
" Input current : 300 mA
power supply required
control circuit
0736-30 .3
board .
" For differential input (See Note
2)
" Phase A (differential pulse) input
PG-D 73600-DO06X
"
PG
frequency range : 50 to 32767 Hz
" I/0 standard is in compliance with RS-422A .
" Input voltage : + 12 V
External
" Input current
:
300 mA
)
power supply required
I I
