Yealink MVC640 All-In-One Quick Start Guide

WPP20
PC
Procedure
1. Connect the WPP20 to the USB port of the MTouch Ⅱ .
Wait for about 3 seconds, the WPP20 LED indicator glows green.
The WPP20 is paired with the MTouch
Ⅱ successfully.

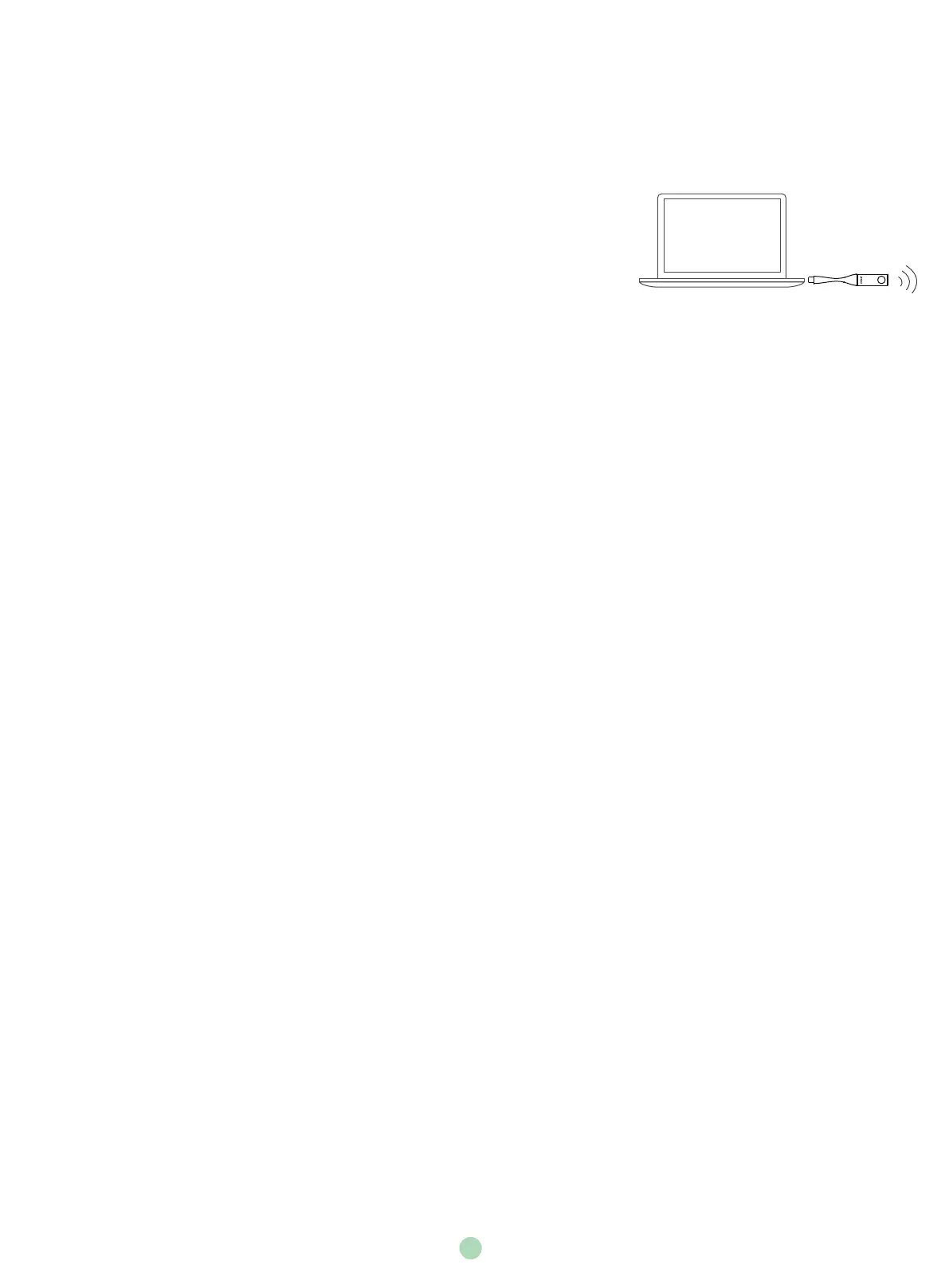

2. Connect the WPP20 to the PC.
3. On the WPP20, press the presentation button to share full screen.
Wireless Sharing
无线投屏 -
Kabelloses Teilen -
Compartición inalámbrica - Partage sans fil
1. 将WPP20连接到MTouchⅡ的USB口。
约3秒后，WPP20指示灯显示绿色常亮。WPP20与MTouchⅡ配对成功。
2. 将WPP20连接到电脑上。
3. 按WPP20的演示键，共享整个电脑屏幕。
过程
Vorgehensweise
1. Verbinden Sie den WPP20 mit dem USB-Port des MTouchⅡ.
Warten Sie etwa 3 Sekunden, die WPP20 LED-Anzeige leuchtet dauerhaft grün.
Der WPP20 ist mit dem MtouchⅡ erfolgreich verbunden.
3. Verbinden Sie den WPP20 mit dem PC.
4. Drücken Sie auf dem WPP20 die Präsentationstaste, um das Vollbild zu teilen.
Procedimiento
1. Conecte el WPP20 al puerto USB del MTouchⅡ.
Espere unos 3 segundos, el indicador LED WPP20 se ilumina verde fijo.
El WPP20 se enlaza con el MTouchⅡ con éxito.
2. Conecte el WPP20 al PC.
3. En el WPP20, pulse el botón de presentación para compartir la pantalla completa.
Procédure
1. Connectez le WPP20 au port USB du MTouchⅡ.
Attendez environ 3 secondes, la LED du WPP20 devrait s'allumer en vert fixe.
Le WPP20 a bien été apparié avec le MTouchⅡ.
2. Connectez le WPP20 au PC.
3. Sur le WPP20, appuyez sur le bouton de présentation pour partager le plein écran.
12

Yealink MVC640 Specifications

General

Bluetooth	Yes
Pan range	-100 - 100 °
Product type	Group video conferencing system
Product color	Black, Grey
Tilt angle range	-45 - 90 °
Number of persons	- person(s)
Signal-to-Noise Ratio (SNR)	63 dB
Processor family	Intel® Core™ i5
Computer system type	Mini PC
Operating system installed	Windows 10 IoT Enterprise
Internal memory	8000 MB
Storage media type	SSD
Total storage capacity	128 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB connector type	USB Type-A, USB Type-B
Ethernet LAN (RJ-45) ports	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Telepresence	-
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Megapixel	- MP
Camera type	Single camera
Digital zoom	3 x
Optical zoom	12 x
Focus adjustment	Auto
Image sensor size	- \
Focal length range	3.9 - 46.8 mm
Aperture range (F-F)	1.6 - 2.8
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	0.1 lx
Diagonal field of view	80 °
Vertical field of view	45 °
Horizontal field of view	73 °
Maximum frame rate	30 fps
Speaker power	10 W
Frequency range	100 - 20000 Hz
Microphone pick-up range	6 m
Output voltage Total Harmonic Distortion (THD)	1 %
Number of microphone arrays	3
Current	0.7 A
AC input voltage	100-240 V
DC input voltage	48 V
Power source type	AC
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	7600 g
