Yealink SIP-T19P E2 User Manual

Recovery Mode on Yealink IP phones
12
For W52P/W56P/W60B Base
For the W52P/W56P/W60B base, there is no screen to show information for you. The W52P/W56P/W60B
base uses 192.168.0.100 as its default IP address, so you need to configure a static IP address for your
local PC where you have the TFTP server installed.
Procedures

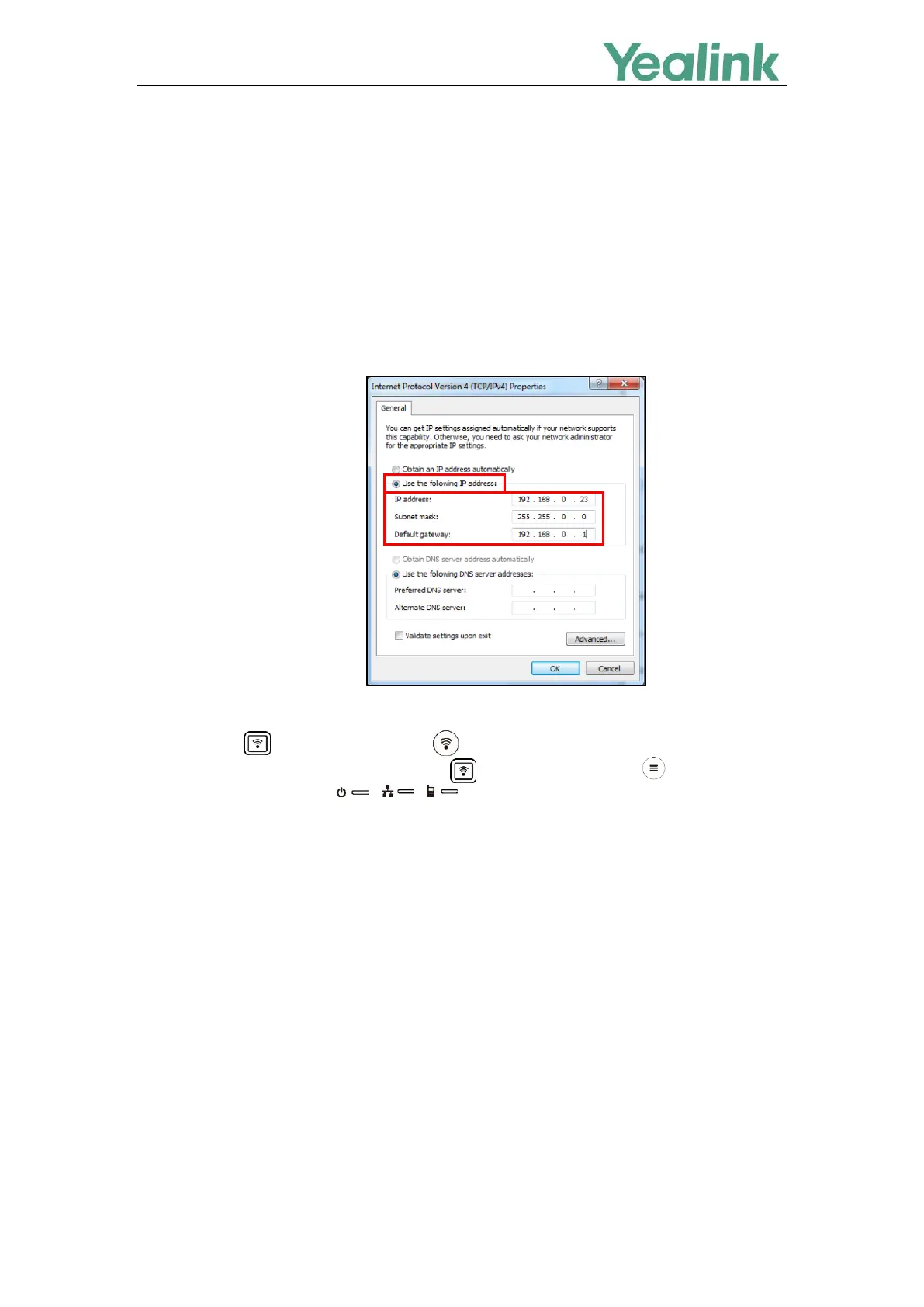

1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press (for W52P/W56P base) or (for W60B base) and reconnect the power adapter
to trigger the recovery mode. Do not release (for W52P/W56P base) or (for W60B base)
until three LED indicators ( -> -> in turn) are all turned on.
The W52P/W56P/W60B base will download and upgrade the firmware from the TFTP server.
You can view the syslog of the TFTP server to check if the W52P/W56P/W60B base downloads the
firmware successfully as shown below:

Yealink SIP-T19P E2 Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Black
Volume control	Digital
Integrated voicemail	Yes
Keypad number of keys	29
Number of function keys	6
Number of programmable keys	7
Cables included	AC, DC, LAN (RJ-45)
Number of handles included	1 pc(s)
Voice codecs	G.711, G.722, G.726, G.729B
Input current	0.25 A
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.25 W
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	-
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Security algorithms	HTTPS, MD5, SRTP
Networking standards	IEEE 802.1p, IEEE 802.1x
Ethernet LAN (RJ-45) ports	2
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	143 mm
Width	185 mm
Height	38 mm
Package depth	200 mm
Package width	215 mm
Package height	121 mm
Package weight	996 g
