Yealink SIP- T28P User Manual

User Guide for the SIP-T28P IP Phone
122
The default codec is G722.
3. Click Confirm to accept the change.
Note
To send RTP stream via a multicast paging key:
1. Press the multicast paging key when the phone is idle.
The phone sends RTP to a preconfigured multicast address (IP: Port). Any phone in
the local network then listens to the RTP on the preconfigured multicast address (IP:
Port). For both sending and receiving of the multicast RTP, there is no SIP signaling
involved.
The multicast paging key LED illuminates solid green.

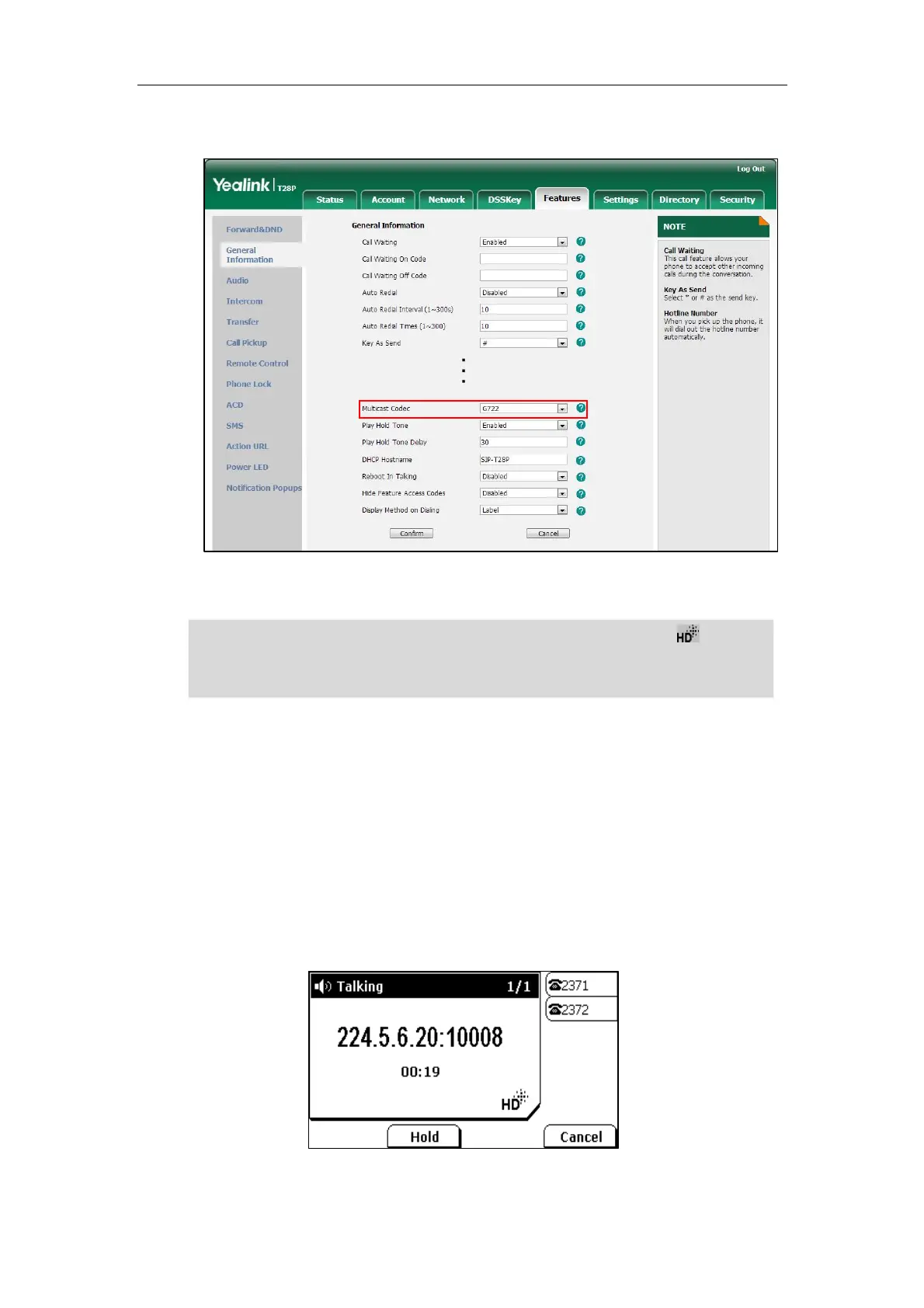

The following figure shows a multicast RTP session on the phone:
2. Press the Hold soft key to place the current multicast RTP session on hold.
If G722 codec is used for multicast paging, the LCD screen will display the icon to
indicate that it is providing high definition voice.
Default codec for multicast paging is configurable via web user interface only.

Yealink SIP- T28P Specifications

General

Expansion module support	Yes
Ethernet LAN (RJ-45) ports	2
Keypad number of keys	48
Voice codecs	G.711, G.722, G.723.1, G.726
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Touchscreen	-
Display resolution	320 x 160 pixels
Lines quantity	- lines
Phonebook capacity	- entries
Number of VoIP accounts	6
Bluetooth	No
Security algorithms	HTTPS, SSL/TLS
AC adapter input voltage	100 - 240 V
AC adapter output voltage	5 V
Power consumption (typical)	2.6 W
Operating relative humidity (H-H)	10 - 95 %
Compliance industry standards	IEEE 802.3af
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	204 mm
Width	273 mm
Height	42 mm
Weight	1050 g
