Yealink SIP- T28P User Manual

Advanced Phone Features
125
a SIP URI pointing to a Music on Hold Server account. When a call is placed on hold, the
phone will send a SIP INVITE message to the Music on Hold Server account. The Music
on Hold Server account automatically answers the SIP INVITE messages and
immediately plays audio from some source located anywhere (LAN, Internet) to the
held party. Contact your system administrator for the SIP URI.

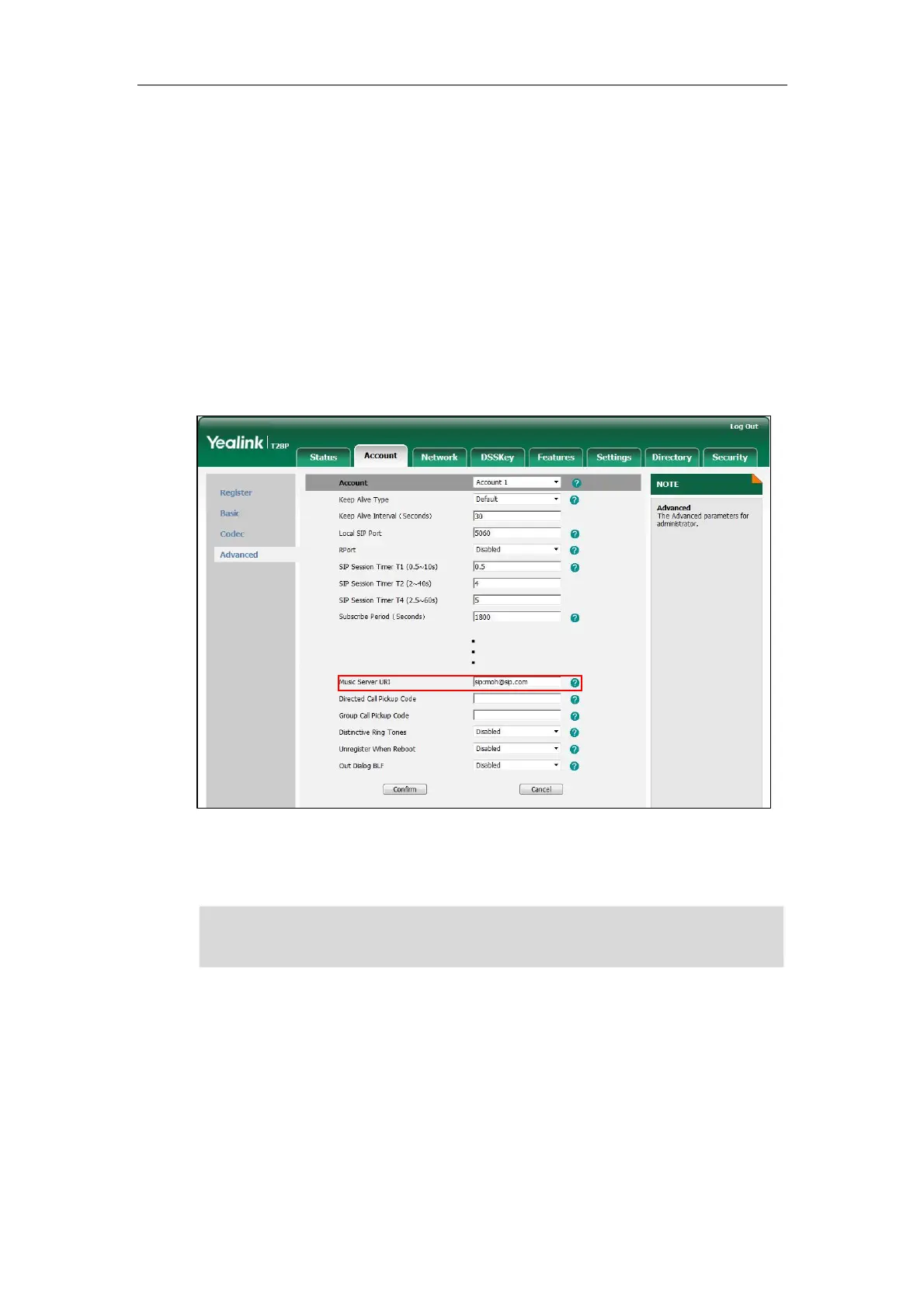

To configure the music on hold server via web user interface:
1. Click on Account.
2. Select the desired account from the pull-down list of Account.
3. Click on Advanced.
4. Enter the SIP URI (e.g., sip:moh@sip.com) in the Music Server URI field.
5. Click Confirm to accept the change.
When you have placed a call on hold, the held party can hear the music.
Note
For this feature to function, all involved parties cannot use encrypted RTP (SRTP).
Music on hold server is configurable via the web user interface only.

Yealink SIP- T28P Specifications

General

Expansion module support	Yes
Ethernet LAN (RJ-45) ports	2
Keypad number of keys	48
Voice codecs	G.711, G.722, G.723.1, G.726
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Touchscreen	-
Display resolution	320 x 160 pixels
Lines quantity	- lines
Phonebook capacity	- entries
Number of VoIP accounts	6
Bluetooth	No
Security algorithms	HTTPS, SSL/TLS
AC adapter input voltage	100 - 240 V
AC adapter output voltage	5 V
Power consumption (typical)	2.6 W
Operating relative humidity (H-H)	10 - 95 %
Compliance industry standards	IEEE 802.3af
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	204 mm
Width	273 mm
Height	42 mm
Weight	1050 g
