Yealink SIP-T40G Auto Provisioning Guide

Obtaining the Provisioning Server Address
35

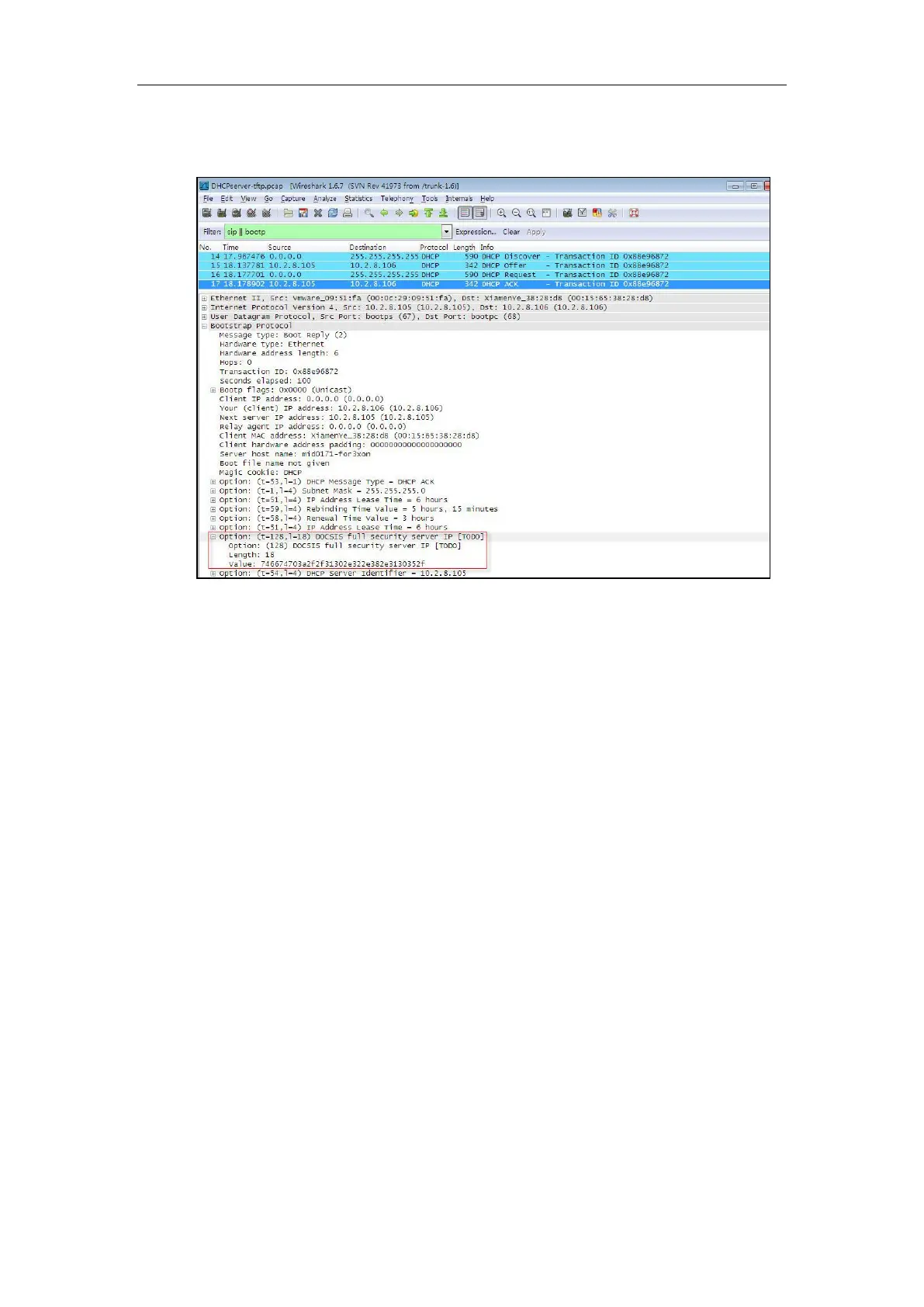

The following figure shows the example messages of obtaining the TFTP server address from an
IPv4 custom DHCP option:
Right click the root node of the custom option (e.g., option 128) shown on the above figure, and
select Copy->Bytes->Printable Text Only. Paste the copied text in your favorite text editor to
check the address, for example, tftp://192.168.1.100/.
Phone Flash
Yealink IP phones can obtain the provisioning server address from the IP phone flash. To obtain
the provisioning server address by reading the IP phone flash, make sure the configuration is set
properly.
To configure the IP phone flash via web user interface:
1. Click on Settings->Auto Provision.

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
