Yealink SIP-T46G Quick Installation Guide

www.yealink.comWall Mount Quick Installation Guide

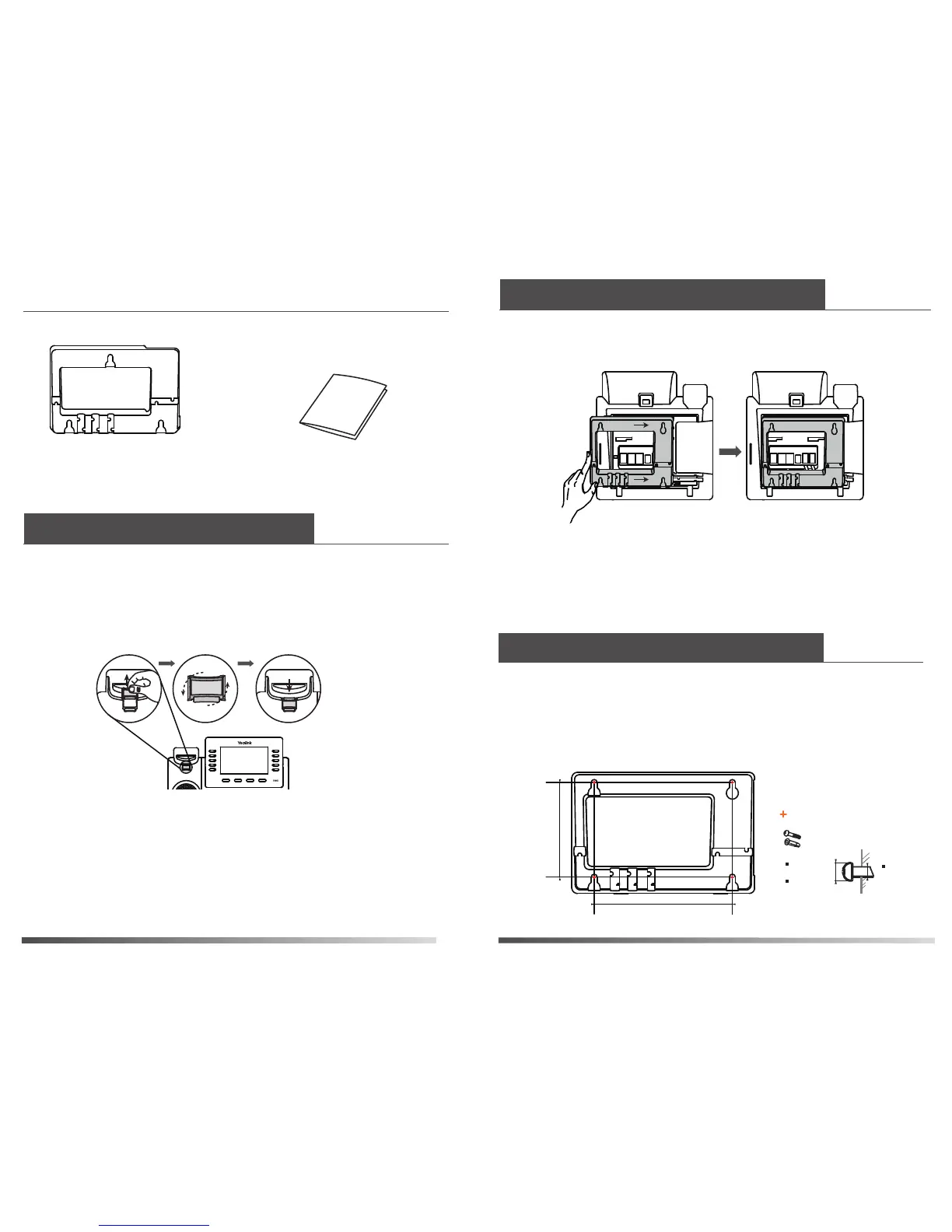

Attaching the Wall Mount Bracket
1. Insert the tabs on the wall mount bracket into the
slots on the back of IP phone.
Attach the wall mount bracket, as shown below
(Take a SIP-T46G IP phone as an example):
2. Slide the wall mount bracket to right.
To attach the wall mount bracket:
Avaliable for a SIP-T42G/T41P IP phone:
Wall Mount Bracket Quick Installation Guide
Adjusting the Hookswitch Tab
The IP phone is packaged with the hookswitch tab in
desk mount position. Before mounting the IP phone to
a wall, you must set the hookswitch tab to wall mount
position.
Adjust the hookswitch tab, as shown below:
1. Pull the hookswitch tab in the handset cradle.
2. Rotate the hookswitch tab 180 degrees.
3. Reinsert the hookswitch tab.
The hookswitch tab has a lip which allows the handset to
stay on-hook when the IP phone is mounted vertically.
To adjust the hookswitch tab:
For a SIP-T46G IP phone:
126.6mm
86.9mm
x 4
Screw position
Max:8mm
(0.315”)
Min:6.5mm
(0.256”)
Max:4.5mm
(0.177”)
Mounting the Wall Mount Bracket
Yealink provides the wall mount drilling template for each
IP phone model, which locates and marks the position for
mounting the screws (not provided) on the wall, as shown
below:
Wall anchors and appliable tools not included with your
package are also required for wall mount installation.

Yealink SIP-T46G Specifications

General

Backlight	Yes
Power requirements	100-240V, DC 5V
Touchscreen	-
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.711, G.722, G.723, G.726, G.729A, G.729B
Bluetooth	No
RJ-9 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	185 mm
Width	244 mm
Height	213 mm
