Yealink T54W Quick Start Guide

2

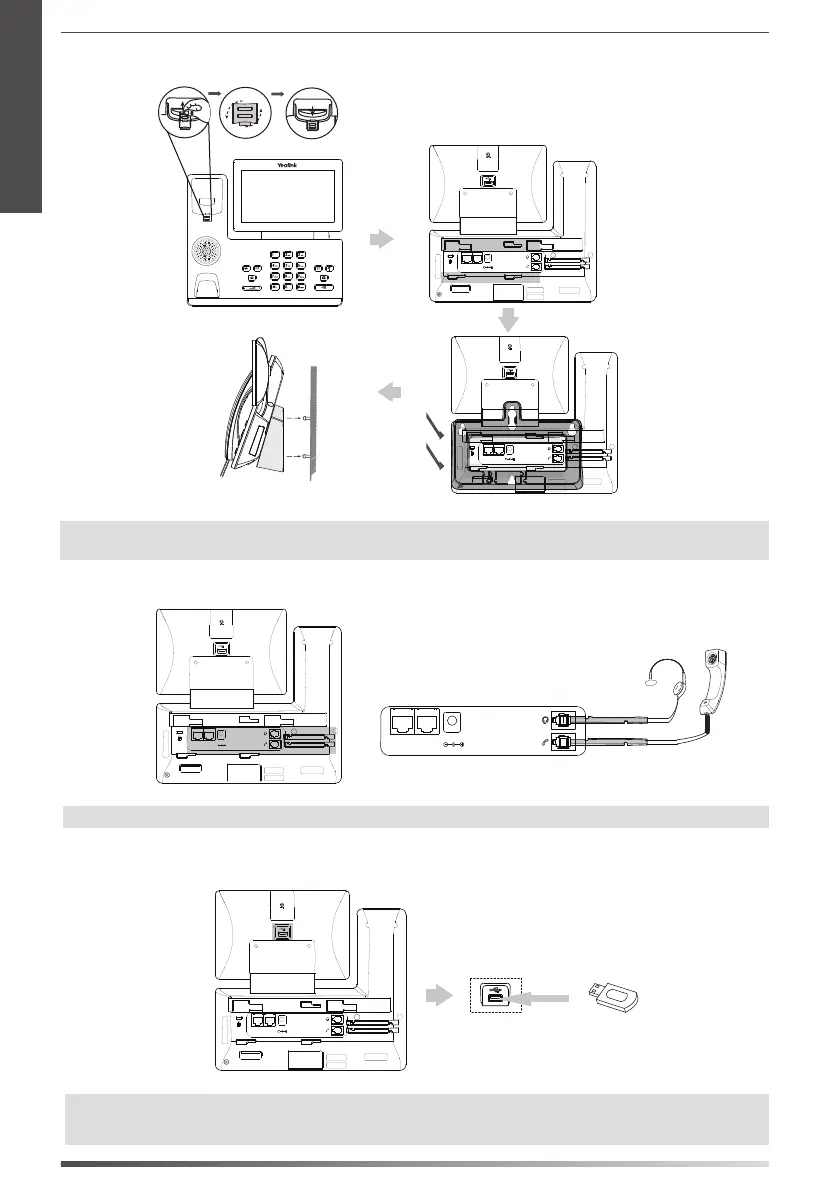

3. Attach the optional wall mount bracket, as shown below:
PUSH
Note: The hookswitch tab has a lip which allows the handset to stay on-hook when the IP phone is mounted vertically. For more
information, refer to Yealink Wall Mount Quick Installation Guide for Yealink IP Phones.
4. Connect the handset and optional headset, as shown below:
Note: The headset should be purchased separately.
5. Connect the optional USB flash drive, as shown below:
Note: The USB port (on the rear of the phone) can also be used to connect color-screen expansion module EXP50 or USB headset. For
more information on how to use EXP50, refer to Yealink EXP50 User Guide. For more information on how to use USB headset,
refer to the documentation from the manufacturer.
ＰＣ
Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
ＰＣ
Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
ＰＣ
Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
ＰＣ
Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
ＰＣ
Ｉｎｔｅｒｎｅｔ
ＤＣ５Ｖ
E
N
G
L
I
S
H

Yealink T54W Specifications

General

Resolution	480 x 272 pixels
Lines	16 SIP accounts
Network Interfaces	2 x Gigabit Ethernet ports
Display	4.3-inch color LCD with backlight
PoE	Yes (802.3af)
Audio Features	HD Voice
Voice Codecs	G.722, G.711, G.729, G.726, iLBC
Expansion Module Support	Yes, up to 3 EXP50
Headset	RJ9, USB, Bluetooth
Supported Languages	English, Chinese, German, French, Italian, Spanish, Portuguese, Russian, Turkish
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity	10 to 95%
Wi-Fi	Yes, built-in
Bluetooth	Yes, built-in
Dimensions	233 mm x 222 mm x 186 mm
