Yealink UVC84 Quick Start

4
3
4
Installation

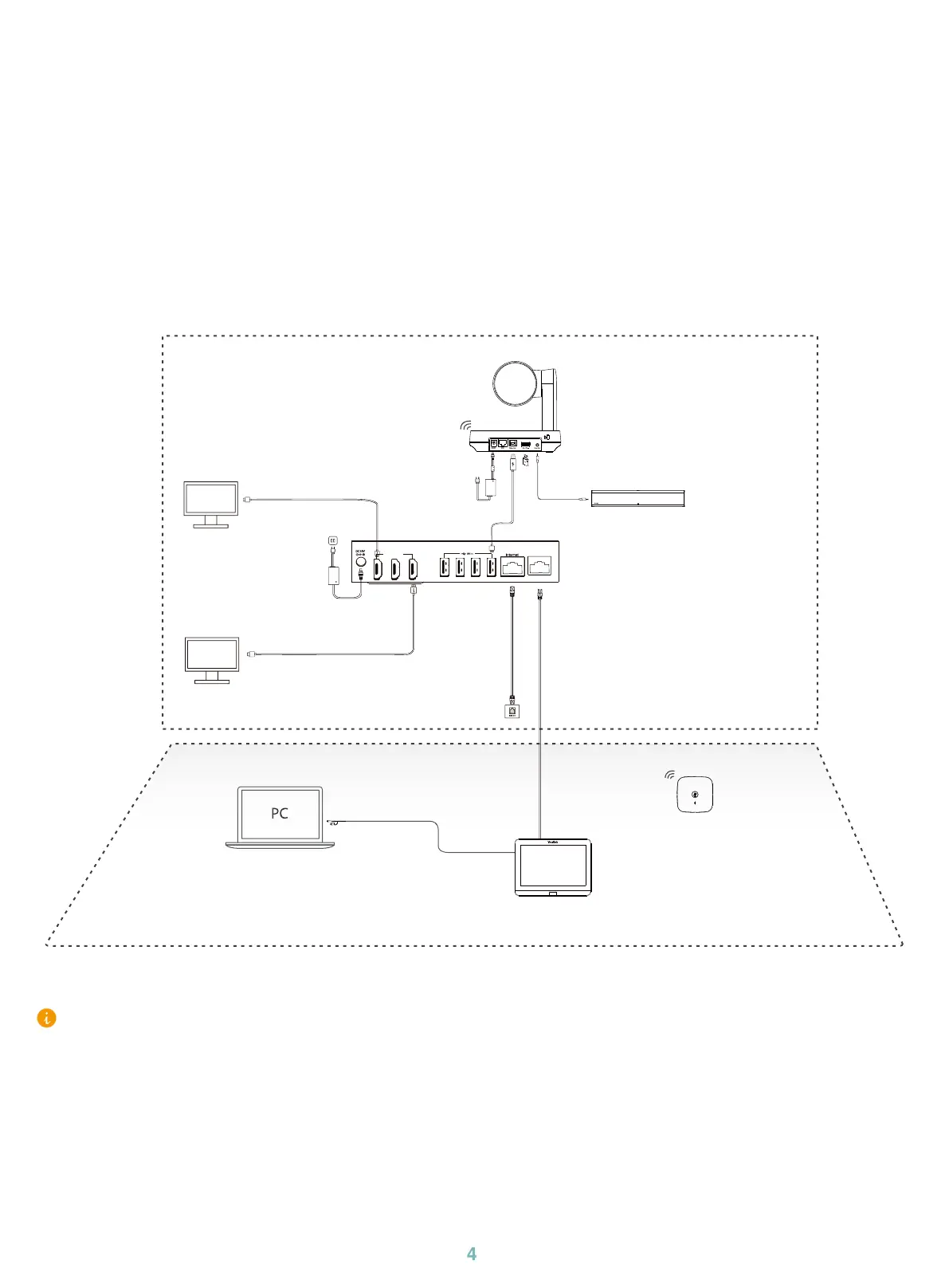

Connection
• MCore Pro supports
:
mount on the wall, mount on the TV, stick to the table.
• MTouch E2 supports: put on a table, mount on a wall.
• UVC84 supports
:
put on a at surface, mount on top of a display, mount on the wall, mount on the ceiling,
mount on the TV mount.
• MSpeaker II
supports: mount on a wall, stick to the table
• Install and deploy the accessories in the system according to the environment and actual needs. For how
to install and deploy, please refer to the quick start guide of each product.
MTouch
3x HDMI out
MCore Pro
Display
(not included)
Display
(not included)
PC
(not included)
MSpeaker II
CPW65
MTouch E2
UVC84
WDD60
(2.1 m, 6.89 ft)
Power
(19V/4.74A)
(1.8 m, 5.91 ft) HDMI
(1.8 m, 5.91 ft) HDMI
(3.5m, 11.48ft)
Power
(48V/0.7A)
(2.5m, 8.20ft)
USB 2.0 (A - B) Cable
(3m, 9.84ft)
3.5mm Audio Cable
(7.5 m, 24.60 ft) CAT5e
CAT5e Cable
(not included)
(1.2 m, 3.94 ft) USB 3.1 (C - C, HDMI)
• When starting up the system for the rst time, you need to connect a mouse to complete the initial
conguration. We recommend using the wireless mouse and keyboard kit.
• When connecting WDD60 to UVC84, please use the Type-A to Type-A Adapter to prevent overheating.
• Not included accessories requirements:
»
Display: Resolution of 1080p or higher and with an HDMI port.
»
PC: Equipped with HDMI or USB-C (support DP protocol) Port.
»
Ethernet cable: CAT5e or higher ethernet cable.
»
HDMI: Standard HDMI cable.
»
PoE switch: If you use PoE to connect speakers or cameras, you need to use PoE+.

Yealink UVC84 Specifications

General

Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Maximum video resolution	3840 x 2160 pixels
Resolution at capture speed	1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Megapixel	- MP
Camera type	Single camera
Digital zoom	3 x
Optical zoom	12 x
Combined zoom	36 x
White balance	ATW, Auto, Manual
Zoom capability	Yes
Focal length range	3.9 - 46.8 mm
Aperture range (F-F)	1.6 - 2.8
Light exposure modes	Auto, Manual
Minimum illumination	0.1 lx
Vertical field of view	45 °
Horizontal field of view	73 °
Field of view (FOV) angle	80 °
Signal-to-Noise Ratio (SNR)	63 dB
Fastest camera shutter speed	1/10000 s
Slowest camera shutter speed	0.01667 s
Pan range	-100 - 100 °
Mounting type	Stand
Product color	Black
Tilt angle range	-90 - 40 °
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Input current	0.7 A
AC input voltage	100-240 V
DC input voltage	48 V
Power source type	AC, DC
Mac operating systems supported	Mac OS X 10.10 Yosemite
Windows operating systems supported	Windows 10, Windows 7
Cables included	USB
USB cable length	7 m
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	156 mm
Height	183 mm
Weight	2900 g
Height (max)	192 mm
