Yealink VCM34 User Manual


3. Place the CPW90 on the charging base, press and hold the Mute button for 5 seconds, the Mute
button LED flashes orange quickly, and it enters the pairing state.

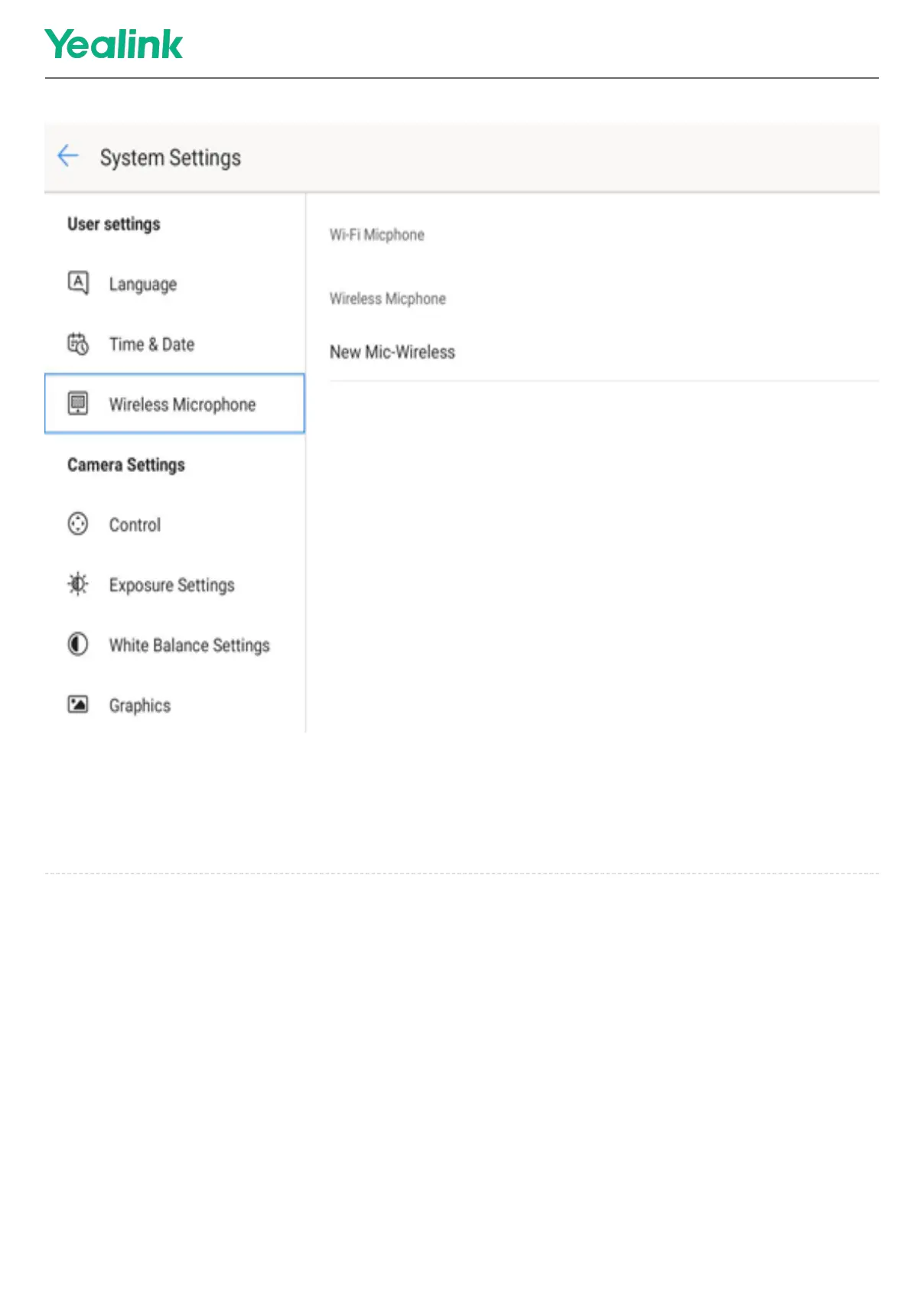

The pairing is successful when the CTP18 interface displays the wireless microphone information.
Setting Audio Input Device
1.On the CTP18, tapSettings > General > System Settings > Audio Settings > Audio Input
Device, and choose the appropriate audio device.
Connecting to Audio Input Devices

Yealink VCM34 Specifications

General

Product type	Microphone
Product color	Black, Grey
LED indicators	Yes
Package depth	196 mm
Package width	310 mm
Package height	80 mm
Package weight	4260 g
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	2
Power source type	PoE
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90 %
Quantity	1
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	171.5 mm
Width	169 mm
Height	37.5 mm
