Installation Guide | 3 - Install PBX | 27

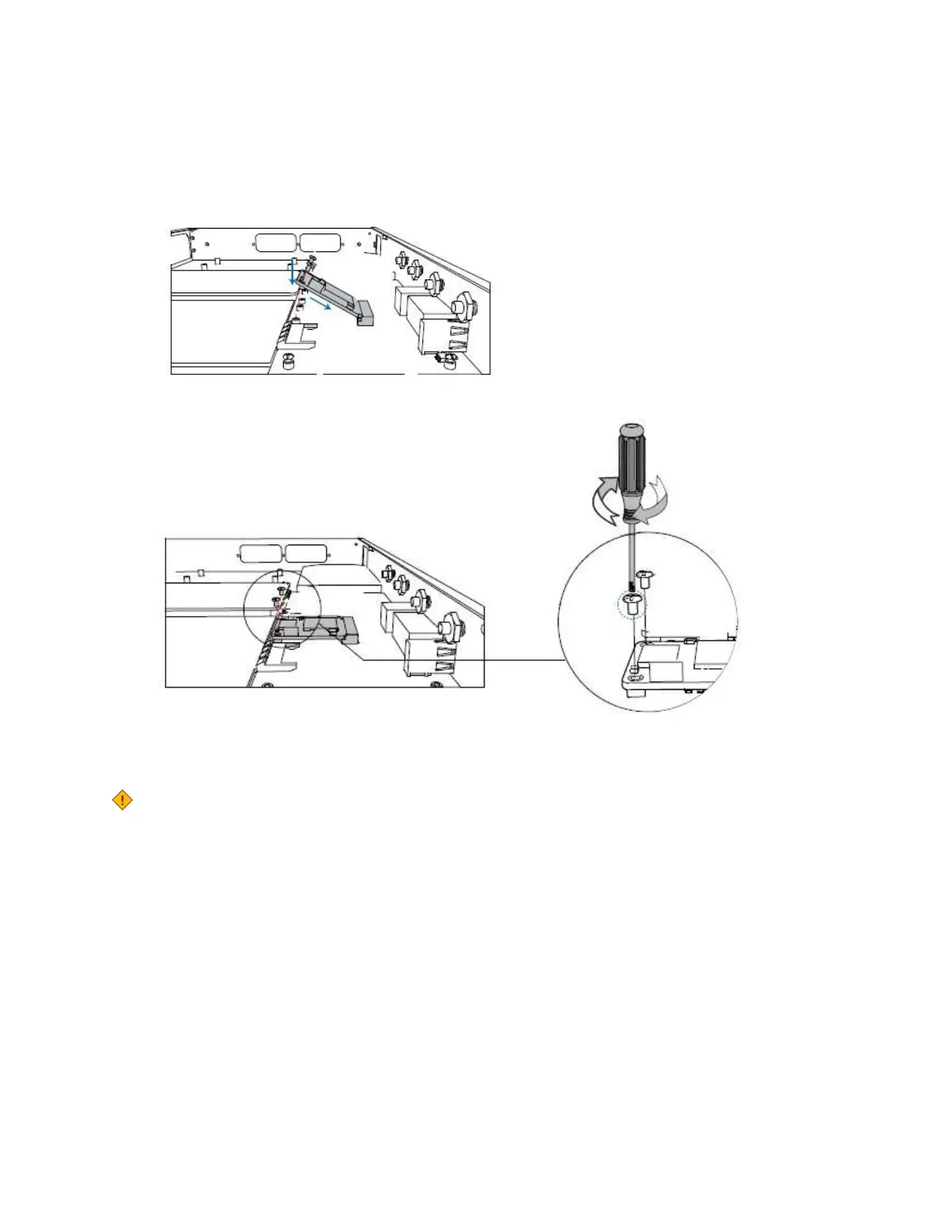

Install DSP Module
1. Open the device upper cover and insert the DSP module (D30) into the D-Slot from a
tilt angle and then press it down.
2. Lock the screws to fix the D30 module board.
Desktop Installation
CAUTION:
• Set 5~10cm gaps around the device for air circulation.
• Avoid any heavy thing placed on the device.
1. Place the PBX on a steady platform.
2. Remove the adhesive backing paper from the rubber feet.
3. Turn over the device and attach the supplied rubber feet to the recessed areas on the
bottom at each corner of the device.
