Installation Guide | 2 - Hardware Overview | 4
Yeastar P560 Overview
Front panel
Yeastar P560 supports 1 expansion board. You can install either EX08 board or EX30
board according to your needs.

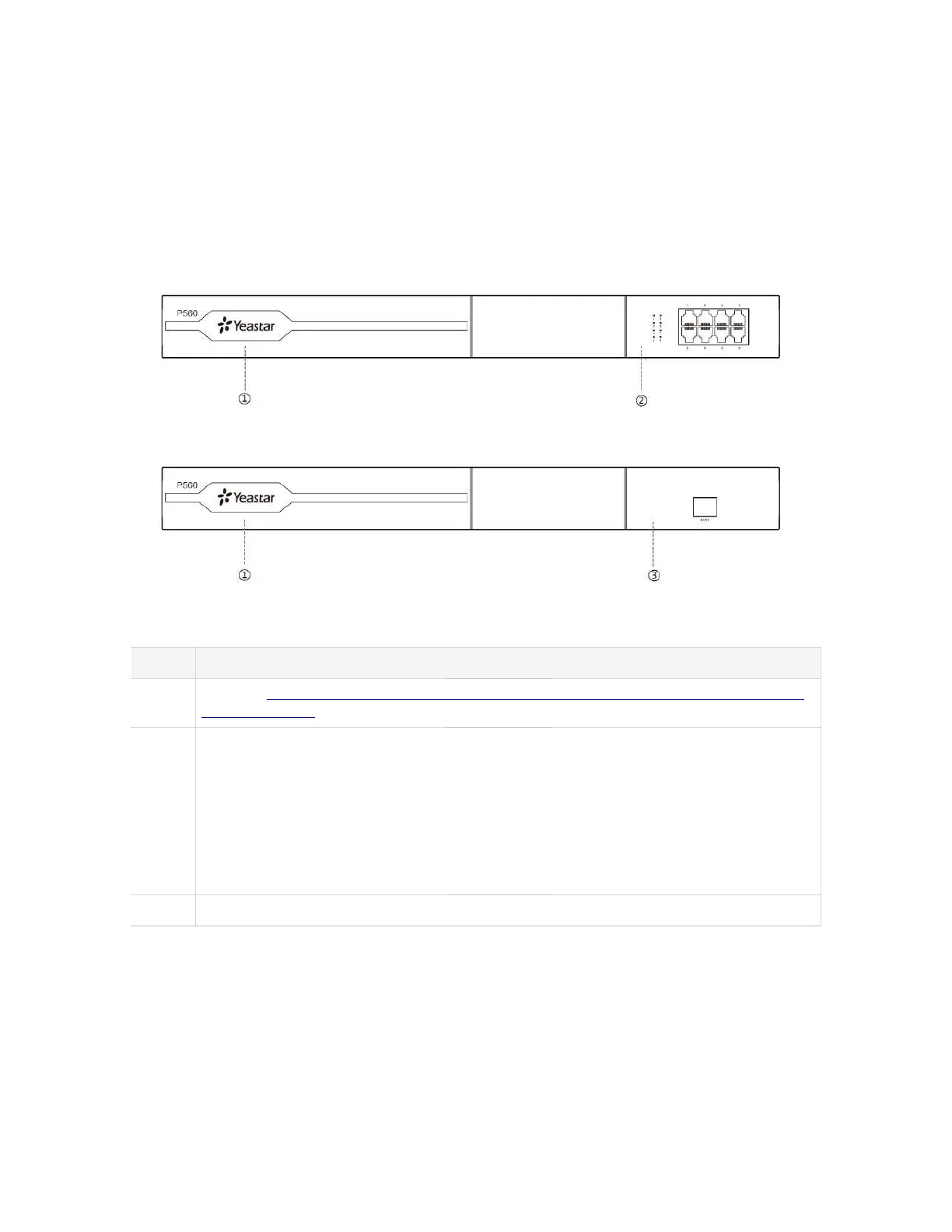

Figure 1.Yeastar P560 front panel with an EX08 expansion board
Figure 2.Yeastar P560 front panel with an EX30 expansion board
Table 3.
No. Description
# NFC tag. Tap NFC-capable mobile phone's back against Yeastar logo to quickly configure
network settings.
# EX08 Expansion Board. Up to 4 modules and 8 RJ11 ports are supported on the expansion
board.
The 8 RJ11 ports can be used to connect to different objects:
• FXS port (green light): For the connection of analog phones or fax machines.
• BRI port (orange light): For the connection of BRI lines.
• FXO port(red light): For the connection of PSTN lines or FXS ports of traditional
PBX.
# EX30 Expansion Board, which is used to connect an E1/T1/J1 line.
