TA1600/2400/3200 Installation Guide | 3 - Hardware Overview | 7
Table 7. (continued)
No. Feature Description
• Solid green: The port is idle or no line is connected to
the port.
• Green light blinking: There is a call reaches the port or
the port is busy in a call.
⑦ RJ11 FXS Ports For connection to analog phones or fax machines.

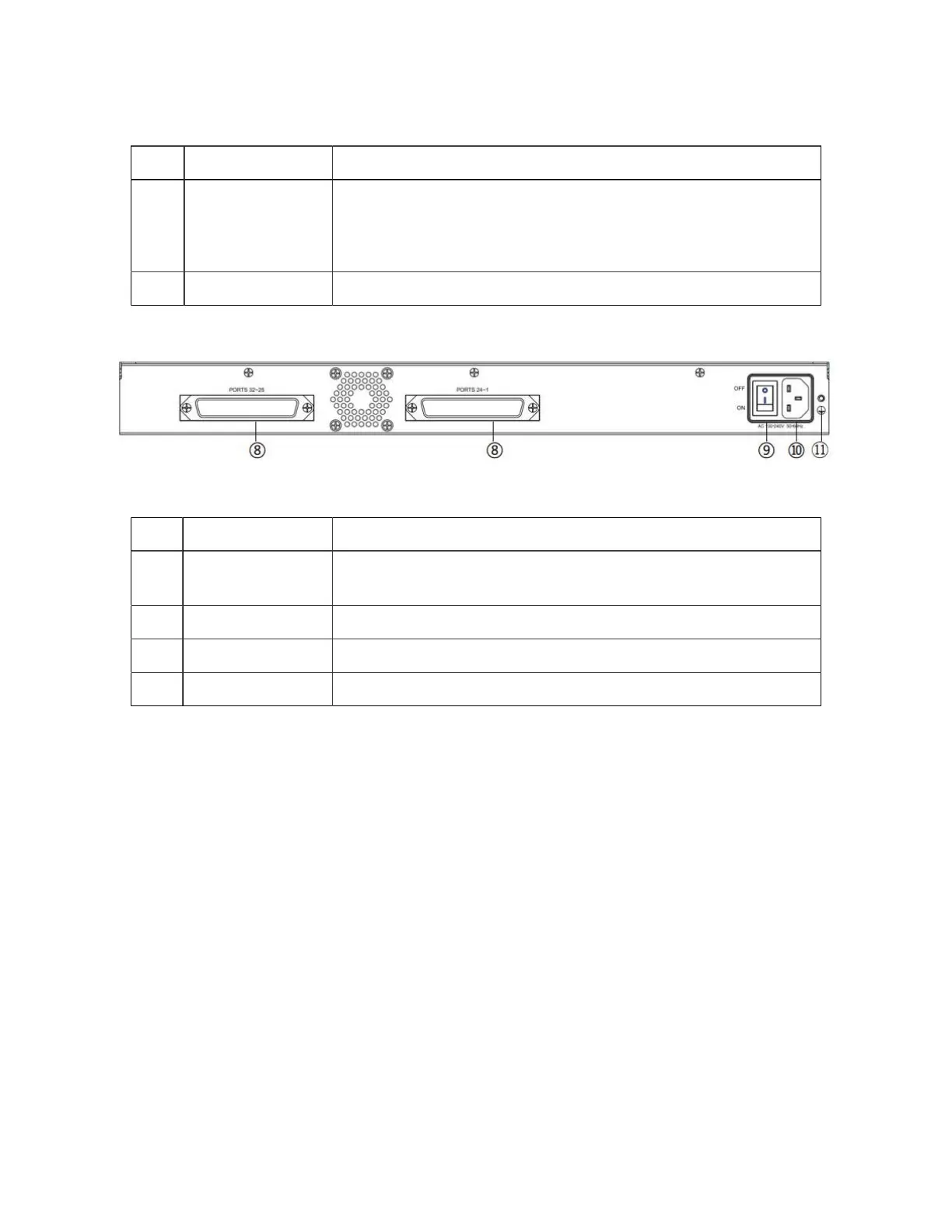

TA3200 back panel
Table 8.
No. Feature Description
⑧ RJ21 FXS Ports
For connection to analog phones or fax machines with one
RJ21 to RJ11 cable.
⑨ Power Switch Press this button to switch on/off the device.
⑩ Power Inlet Connect the power supply to the port.
⑪ Protective Earth Protect the personnel and the equipment.
