TA1600/2400/3200 Installation Guide | 3 - Hardware Overview | 6
Table 6. (continued)
No. Feature Description
⑪ Protective Earth Protect the personnel and the equipment.
TA3200 Hardware Overview

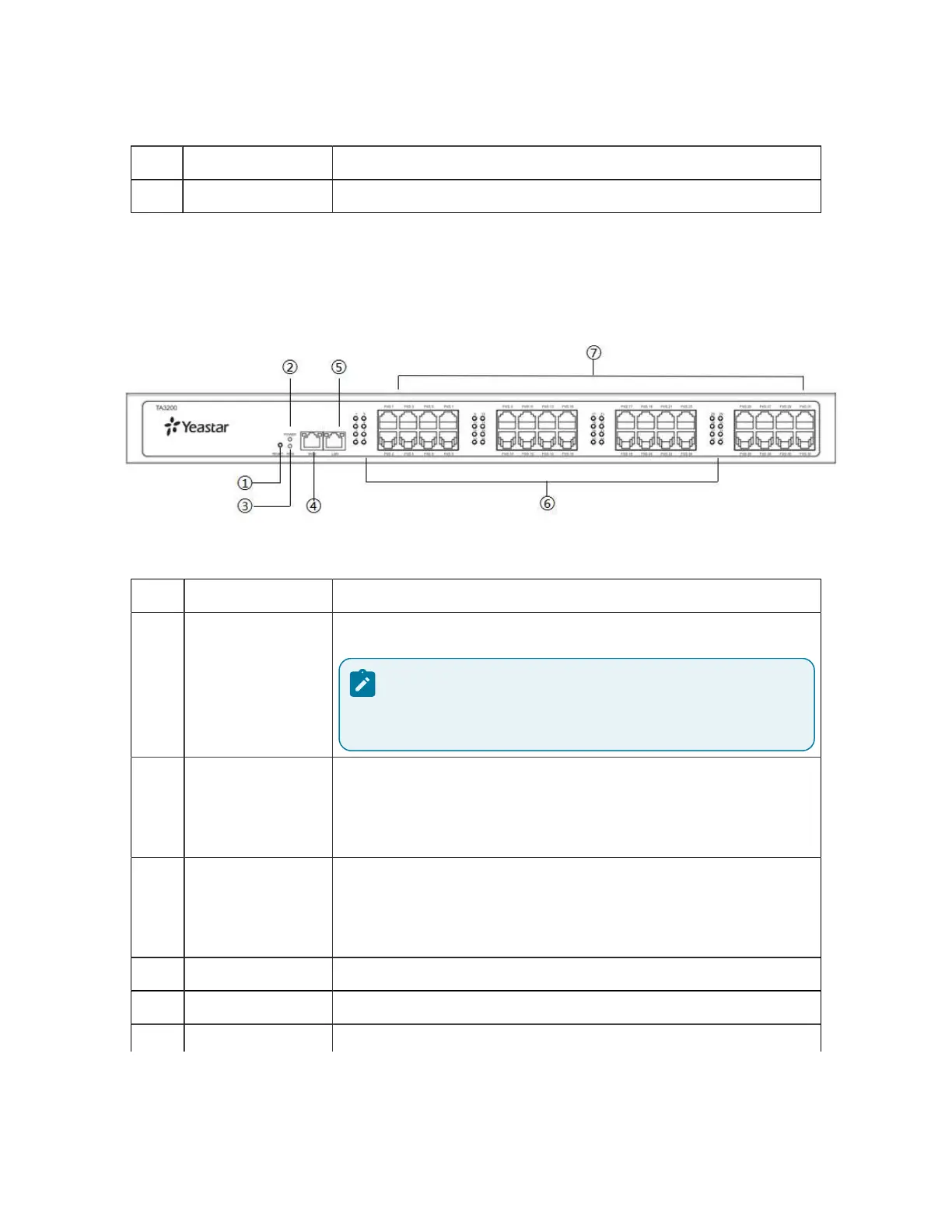

TA3200 front panel
Table 7.
No. Feature Description
① Reset Button
Press and hold for 7 seconds to reset to factory defaults.
Note:
Do NOT press this button for a long time, or the sys
tem would break down.
② Power LED
Indicates the power status.
• On: The power is switched on.
• Off: The power is switched off.
③ RUN LED
Indicates the system status.
• Blinking: The system is working properly.
• Not Blinking/Off: The system goes wrong.
④ WAN Port 10/100 adaptive RJ45 Ethernet port.
⑤ LAN Port 10/100 adaptive RJ45 Ethernet port.
⑥ FXS Ports Status Indicates the FXS port status.
To Next Page
