26. 27.
1 4 .

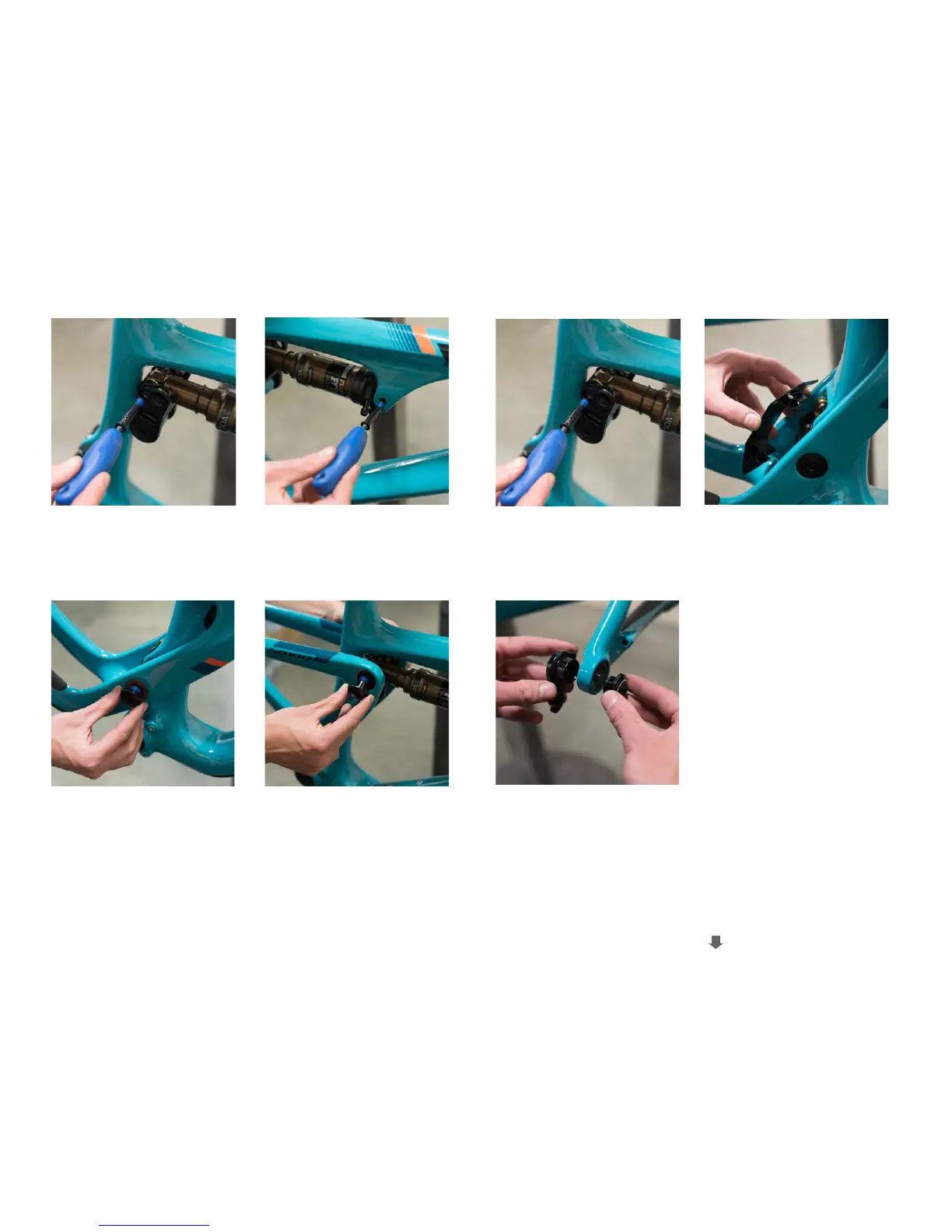

Install front Shock Bolt.
*Torque: 9 Nm
ASSEMBLY
1 3.
Grease heads of 2X Shock Bolt (300030295).
Install Shock Bolt into the rear shock eyelet.
*Torque: 9 Nm
ASSEMBLY
1 .
Slide the Rear Triangle over the Main Pivot
onto the Switch Infinity Link. Secure with 2x
Main Pivot Bolt (200020313).
*Torque: 40 Nm
1 .
Install 2x Seat Stay Pivot Bolts
(300030294) through the Swingarm
and into the Link.
*Torque: 35 Nm
1 .
Clip the Switch Infinity Fender (400100194)
onto the four switch infinity mounting bolts.
Orient the fender so the small raised lip on the
backside is at the top
1 .
With a needle-type grease gun, fill grease
into the Main Pivot Grease Zerks until a small
amount of grease is purged through the
Switch Infinity seals. Clean off any excess
grease with a clean cloth or rag.
1 .
Apply grease to the outside circumference of
the Derailleur Hanger and threads of the
Hanger Cap (300060073). Install onto the
rear triangle. Hanger threads are REVERSE
THREADED.
*Torque: 9 Nm
'3".&"44&.#-:*4$0.1-&5&
To Next Page
