24. 25.
ASSEMBLY
.

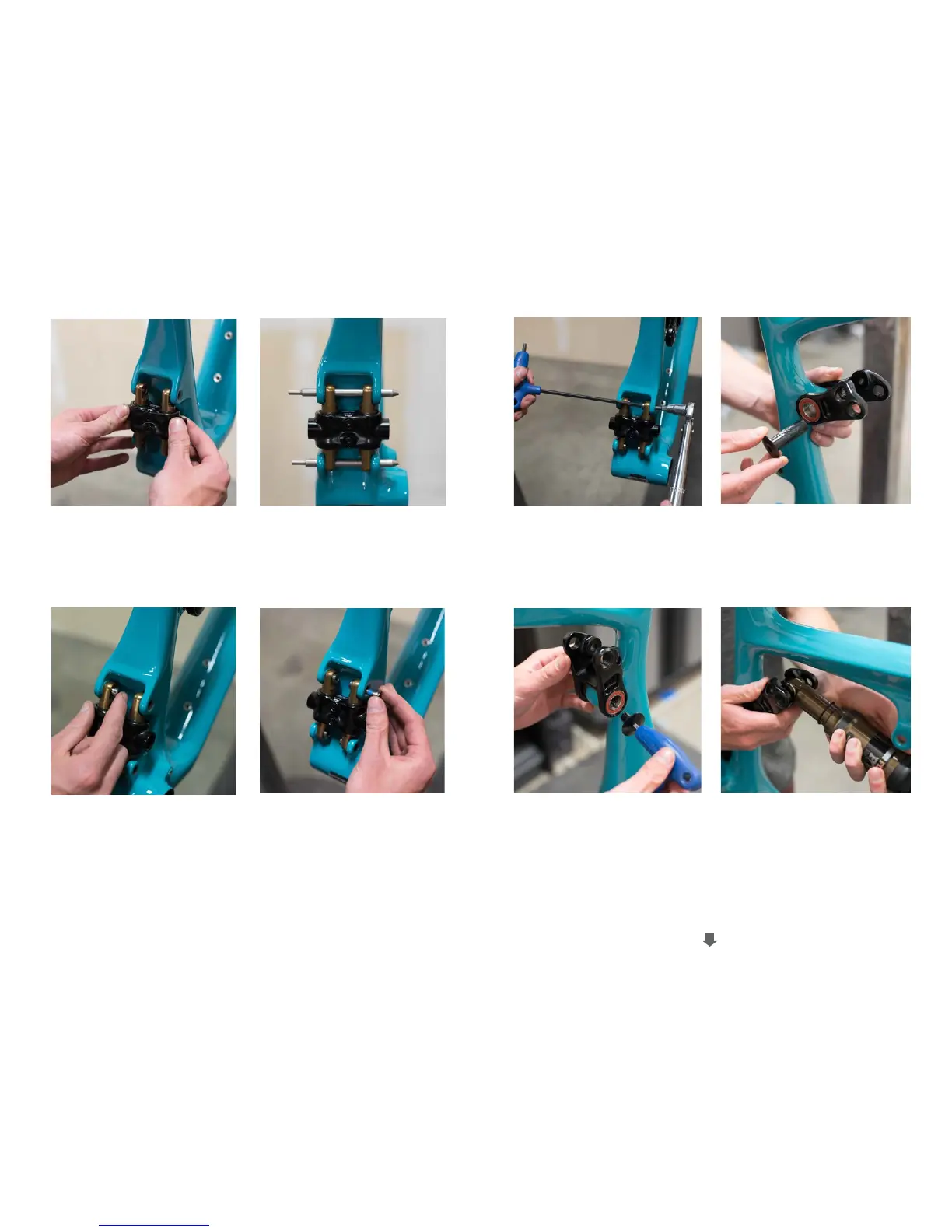

Prep 4X Flat Head Ti Male bolts
(300030156) with blue Loctite. Install a
Flat Head Male Ti Bolt through the Front
Triangle into the Ti Female Bolts. Repeat
for all four locations
0 .
Install a short Ti Female Bolt (300030301)
from the inside of the shaft eyelet through
the frame. Use a guide pin to help
installation if necessary. Repeat for all four
mounting holes.
06.
Use a guide pin to line up the shaft eyelet
holes with the frame.
ASSEMBLY
0.
Use a ball-end wrench to prevent the inner
Ti Female Bolts from rotating. Torque the
4x Flat Head Ti Male Bolts to 12 Nm.
.
Apply a light coat of grease to the shaft of
the Female Link Pivot Bolt (300030292).
Slide the Alloy Link onto the Front Triangle
and install the Female Link Pivot Bolt.
11.
Grease the threads of the Male Link Pivot
Bolt (300030293). Install into Female Link
Pivot Bolt.
*Torque to 8 Nm
12 .
Install the rear shock eyelet into the Link.
Make sure that the shock controls are facing
downwards, and secure with guide pins
(note they will not pass through the frame).
0.
Push the SB100 Switch Infinity Link into
the frame
To Next Page
