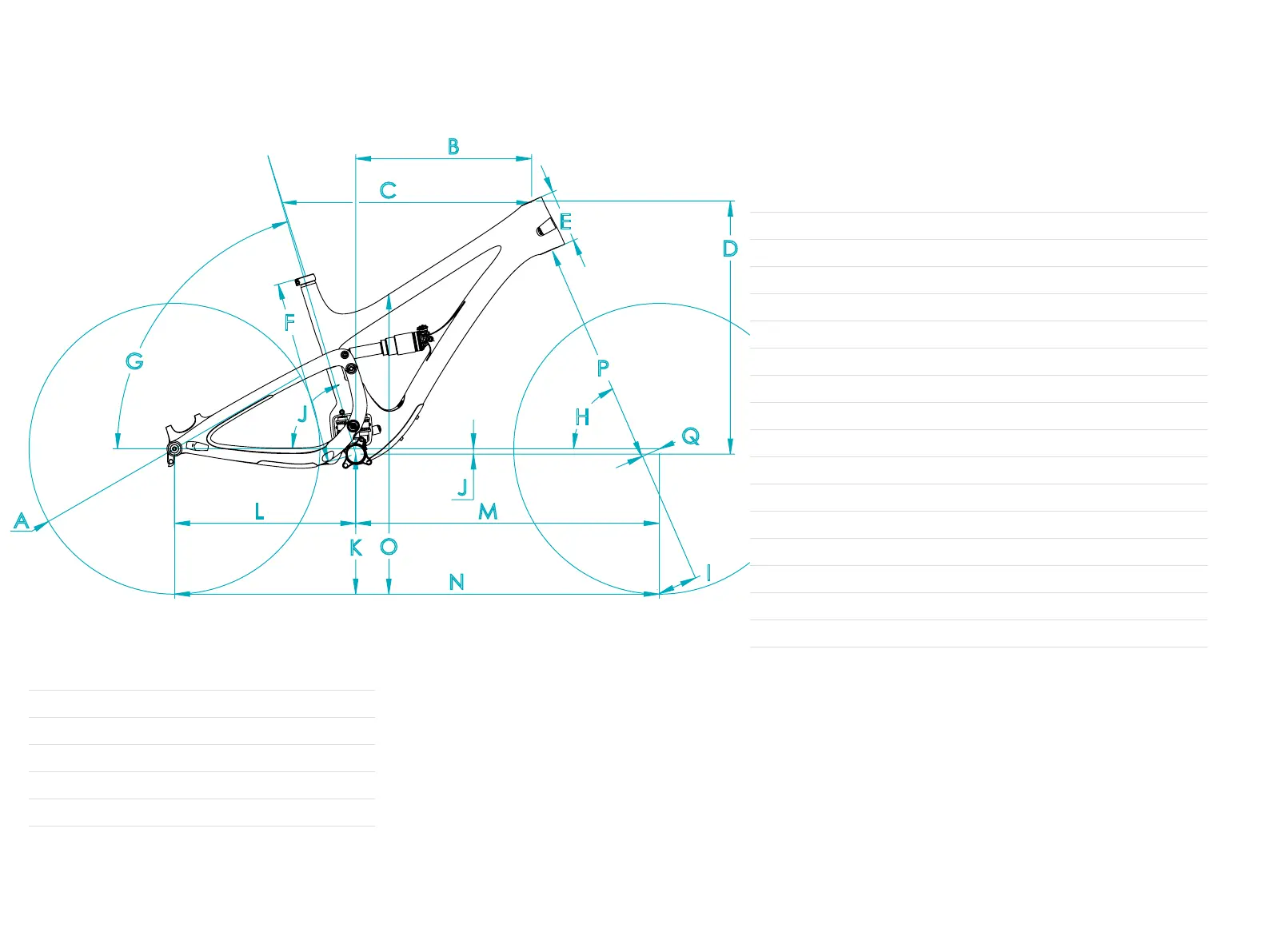

GEOMETRY
FIT
X-SMALL 4’11” (150 CM) - 5’3” (160 CM)
SMALL 5’3” (160 CM) - 5’7” (170 CM)
MEDIUM 5'7" (170 CM) - 5'11" (180 CM)
LARGE 5'11" (180 CM) - 6'3" (191 CM)
X-LARGE 6'1" (185 CM) - 6'6" (198 CM)
FOX 34 / 150MM FORK
XS SM MD LG XL
A WHEEL 27.5 27.5” 27.5” 27.5” 27.5”
B REACH 382 402 424 444 463
C EFF. TOP TUBE 552 578 603 629 654
D STACK 585 600 610 625 645
E HEAD TUBE LENGTH 100 116 127 144 165
F SEAT TUBE LENGTH 381 419 445 483 521
G EFF. SEAT TUBE ANGLE 73.7 73.7 73.6 73.5 73.5
H HEAD TUBE ANGLE 66.5 66.5 66.5 66.5 66.5
I MECH. TRAIL 96 96 96 96 96
J BB DROP 13 13 13 13 13
K EST. BB HEIGHT 338 338 338 338 338
L CHAINSTAY LENGTH 437 437 437 437 437
M FRONT-CENTER 697 705 731 758 786
N WHEELBASE 1116 1142 1168 1195 1222
O STAND OVER 668 683 724 737 749
P AXLE TO CROWN 539 539 539 539 539
Q FORK OFFSET 44 44 44 44 44
*All measurements are in millimeters
