Switching Operation Screens
4-19
IM 04L42B01-01E
4

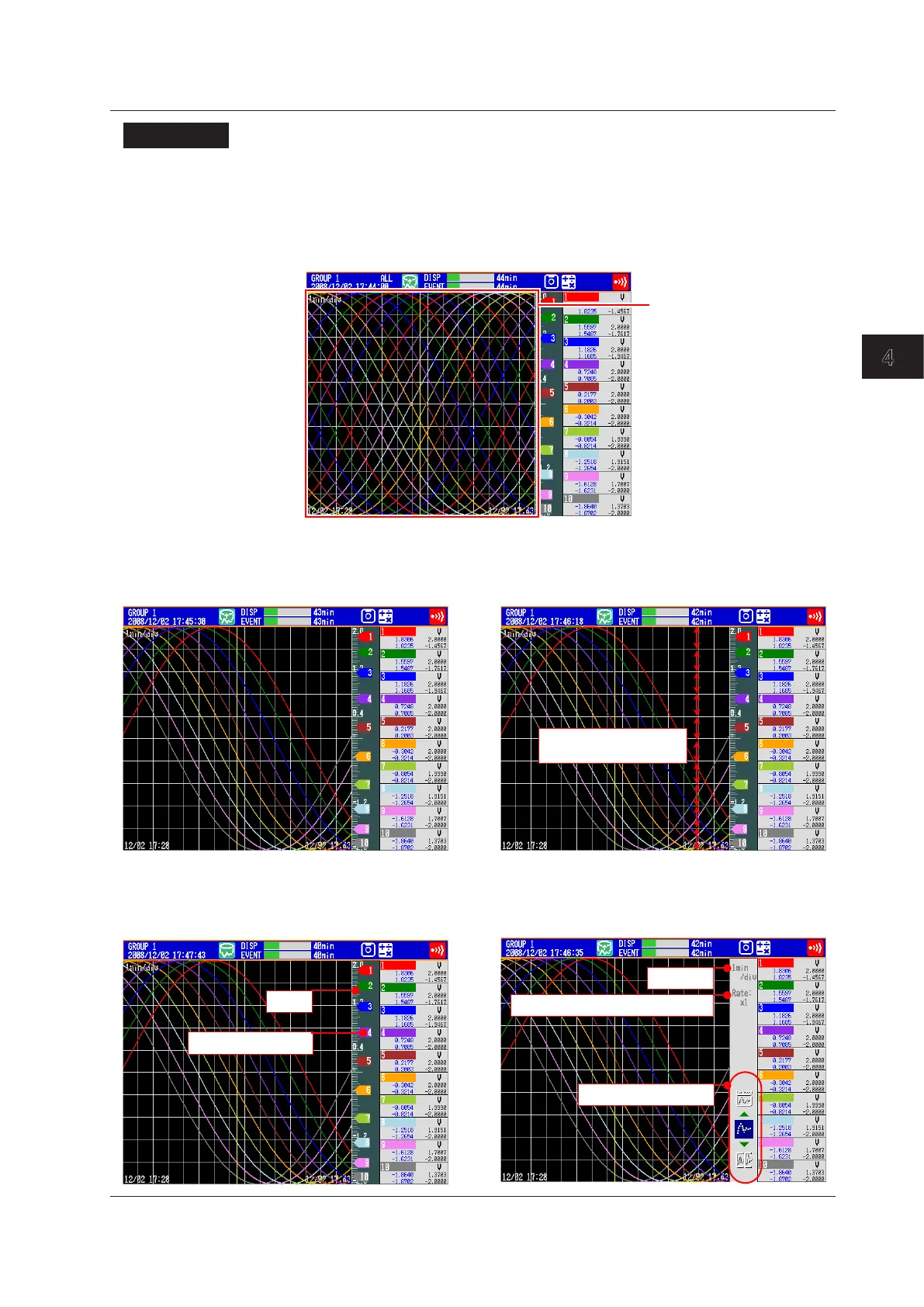

Explanation
• ALLCHANNEL/GROUPCHANNEL
In the group display, the waveforms of the channels that are registered to the group
are displayed. In the all channel display, the waveforms of all channels that have
been set to be recorded are displayed on the current group display. The waveforms
of channels that are not registered to the group are displayed, without any additional
information, in the waveform display area.
The waveforms of all
channels are displayed.
• AUTOZONE
Displays trend waveforms separately by assigning display areas (zones) to the set
channels.
With AUTO ZONE OFF With AUTO ZONE ON
Waveform display area
is divided evenly.
• SCALEON/OFF
Select whether to display the scale. The current value mark of the scale indicates the
value at the cursor position.
With SCALE ON With SCALE OFF
Scale
Cursor position mark
Time axis
Time axis expansion/reduction rate
Screen switching icons
4.3DisplayingPastMeasuredData(HistoricalTrendDisplay)
To Next Page
