YOKOGAWA Daqstation DX2000 User Manual

Switching Operation Screens
4-31
IM 04L42B01-01E
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

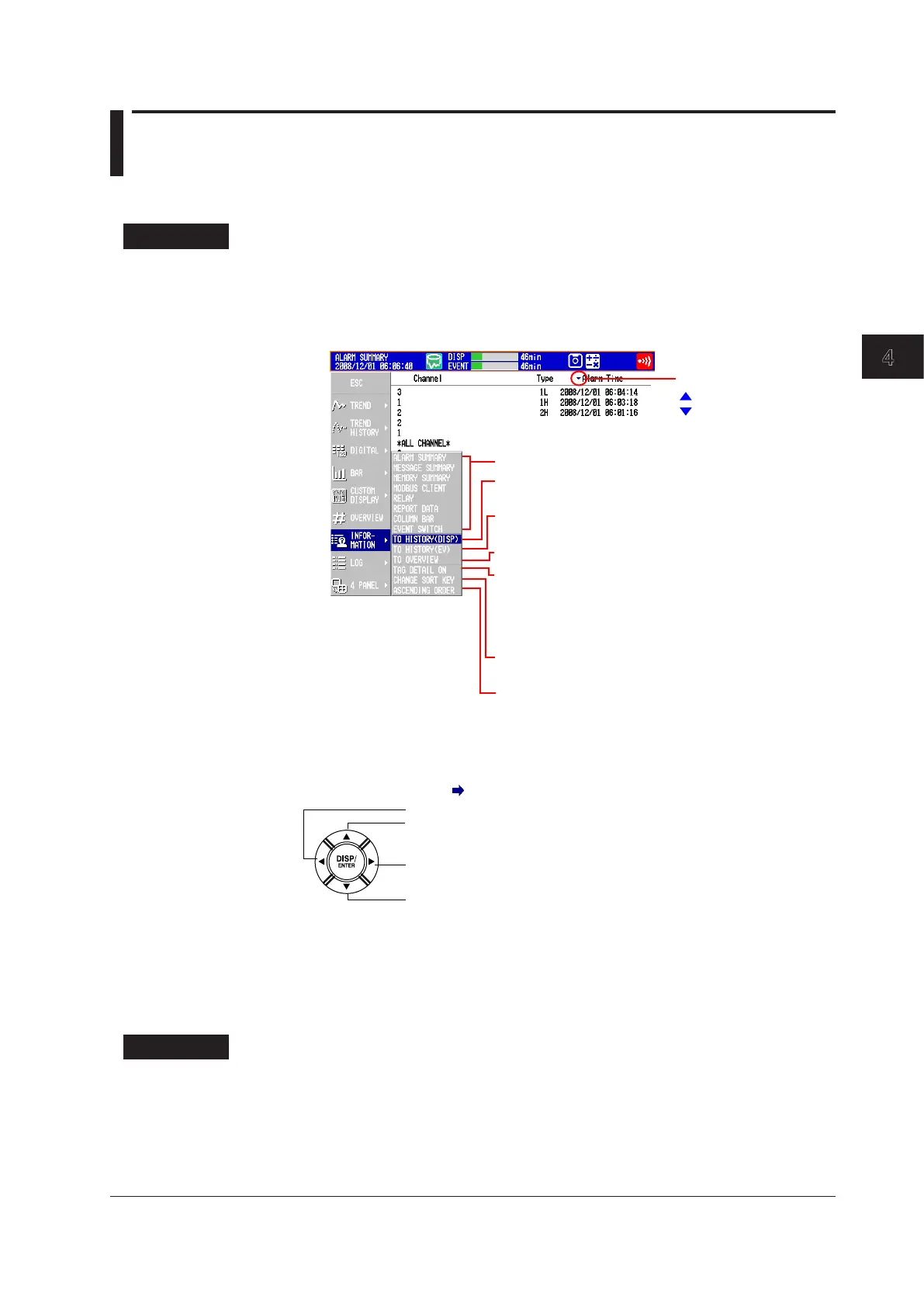

4.6 UsingtheAlarmSummary
This section explains how to use the alarm summary.
For a description of the function, see section 1.3.
Procedure
• ChangingtheDisplayedContents
1.
Press DISP/ENTER to show the display selection menu.
2.
Press the rightarrowkey to display the sub menu.
3.
Press the upanddownarrowkeys to select the sub menu item.
Sort symbol
Ascending sort
Descending sort
ASCENDING ORDER: Sorts in ascending order
DESCENDING ORDER:
Sorts in descending order
CHANGE SORT KEY:
Sorts alarm information by
channel or alarm time
TO HISTORY (DISP): Switches to the display data
historical trend display
TO HISTORY (EV): Switches to the event data
historical trend display
Display name: Switches to the specified display
TO OVERVIEW: Switches to the overview display
TAG DETAIL ON: When a tag does not fit into the
typical tag display space, the
alarm and measured values are
covered so that the tag can be
displayed completely.
TAG DETAIL OFF:
Priority is not given to tag display.
4.
Press DISP/ENTER to change the displayed contents.
To close the menu without changing the displayed contents, press the ESC key.
• MovingtheCursor( )andScrollingtheAlarms
Scrolls the alarm information up by half a page
Moves the cursor up
Scrolls the alarm information down by half a page
Moves the cursor down
• RecallingtheHistoricalTrendDisplayatthePointWhentheAlarm
Occurred
1.
Select an alarm with the cursor.
2.
Display the historical trend according to the procedure described in “Changing the
Displayed Contents.”
Explanation
• CHANGESORTKEY,ASCENDINGORDER,andDESCENDINGORDER
The alarms are sorted in ascending or descending order by the following keys. The
sort symbol is displayed next the sort item (see the figure above).
• Channelnumber: Sortsthealarmsbychannelnumbereveniftagsarebeing
used. Alarms in a channel are sorted by the alarm level number.
• Timeofalarmoccurrence/release
