Switching Operation Screens
4-21
IM 04L42B01-01E
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index

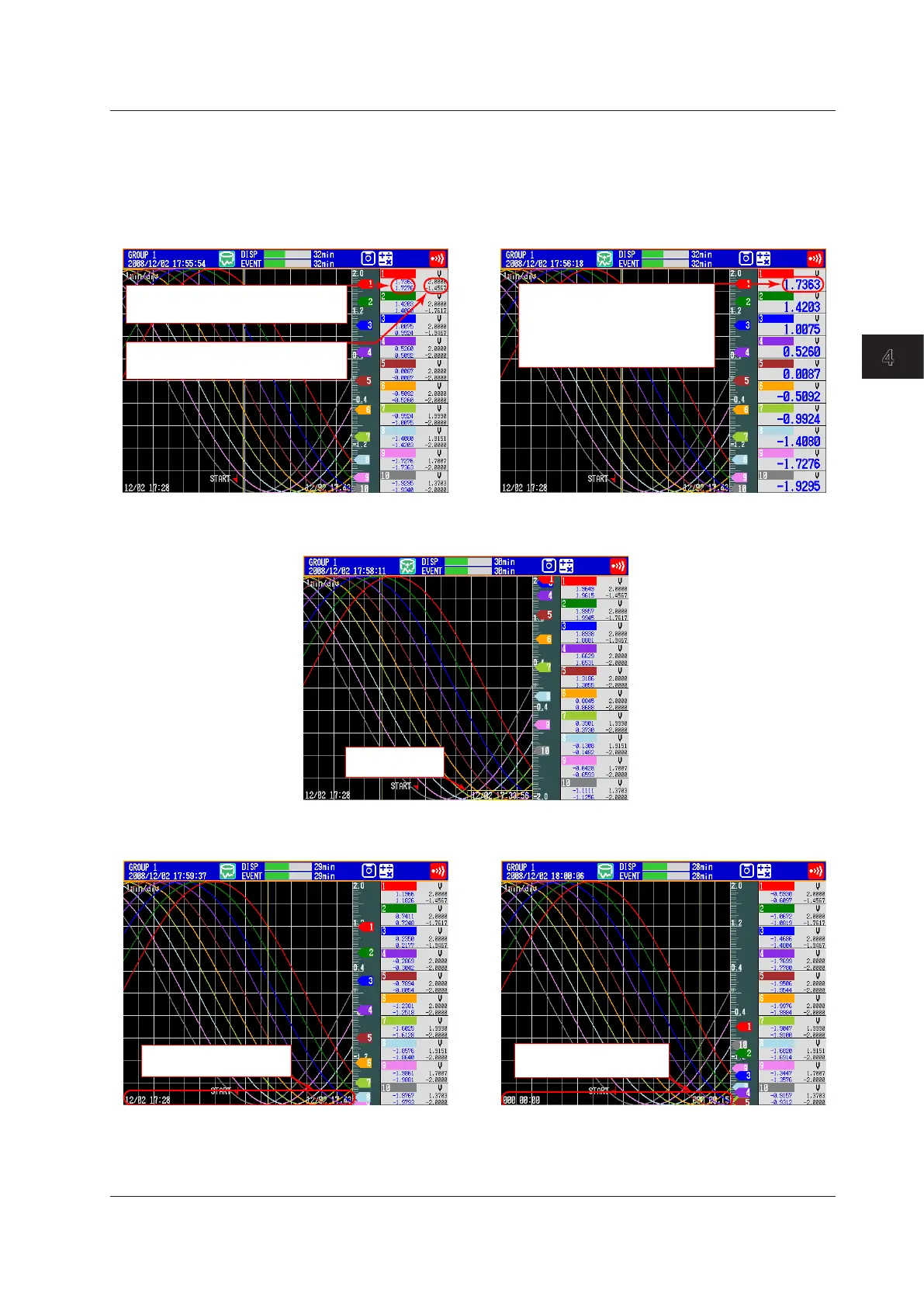

• MESSAGEDISP1,MESSAGEDISP2
Switch between message displays.
• CURSORVALUE/DIGITALMAX/MIN
Switch between numeric displays.
With DIGITAL MAX/MIN With CURSOR VALUE
The maximum and minimum measured
values at the cursor position
The maximum and minimum waveform
values in the current display
Display data: Shows the maximum
value at the cursor position
Event data: Shows the measured
value at the cursor position
• CURSORTIME
With CURSOR TIME ON
The time at the
cursor position
• ABSOLUTETIME/RELATIVETIME
With ABSOLUTE TIME With RELATIVE TIME
The time when the data
was recorded
The time that has elapsed
since memory start
4.3DisplayingPastMeasuredData(HistoricalTrendDisplay)
