YOKOGAWA Daqstation DX2000 User Manual

5-7
IM 04L42B01-01E
Operations for Changing the Displayed Contents
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index
• Message>Changemessage
On: Writes the time the interval is switched and the new trend interval as a message
when the trend interval is switched.
On DXs with the /AS1 advanced security option, a message is written even when the
setting mode setup items are changed during memory sampling.
Item Message
Alarm setting change AlarmSet
Alarm delay time change AlmDlaySet
Calibration change Calibration correction Setting
• Trendinterval[/div]andSecondinterval[/div]
Select the time corresponding to 1 division of the time axis on the trend display from
below: You cannot specify a trend interval that is faster than the scan interval.
5s
*1
, 10s
*1
, 15s
*2
, 30s, 1min, 2min, 5min, 10min, 15min, 20min, 30min, 1h, 2h, 4h, and
10h
*1 Selectable on the DX2004 and DX2008 (release number 3 or later).
*2 Selectable on the DX2010, DX2020, DX2030, DX2040, and DX2048 when the scan interval
is set to fast sampling mode (release number 3 or later).
Note

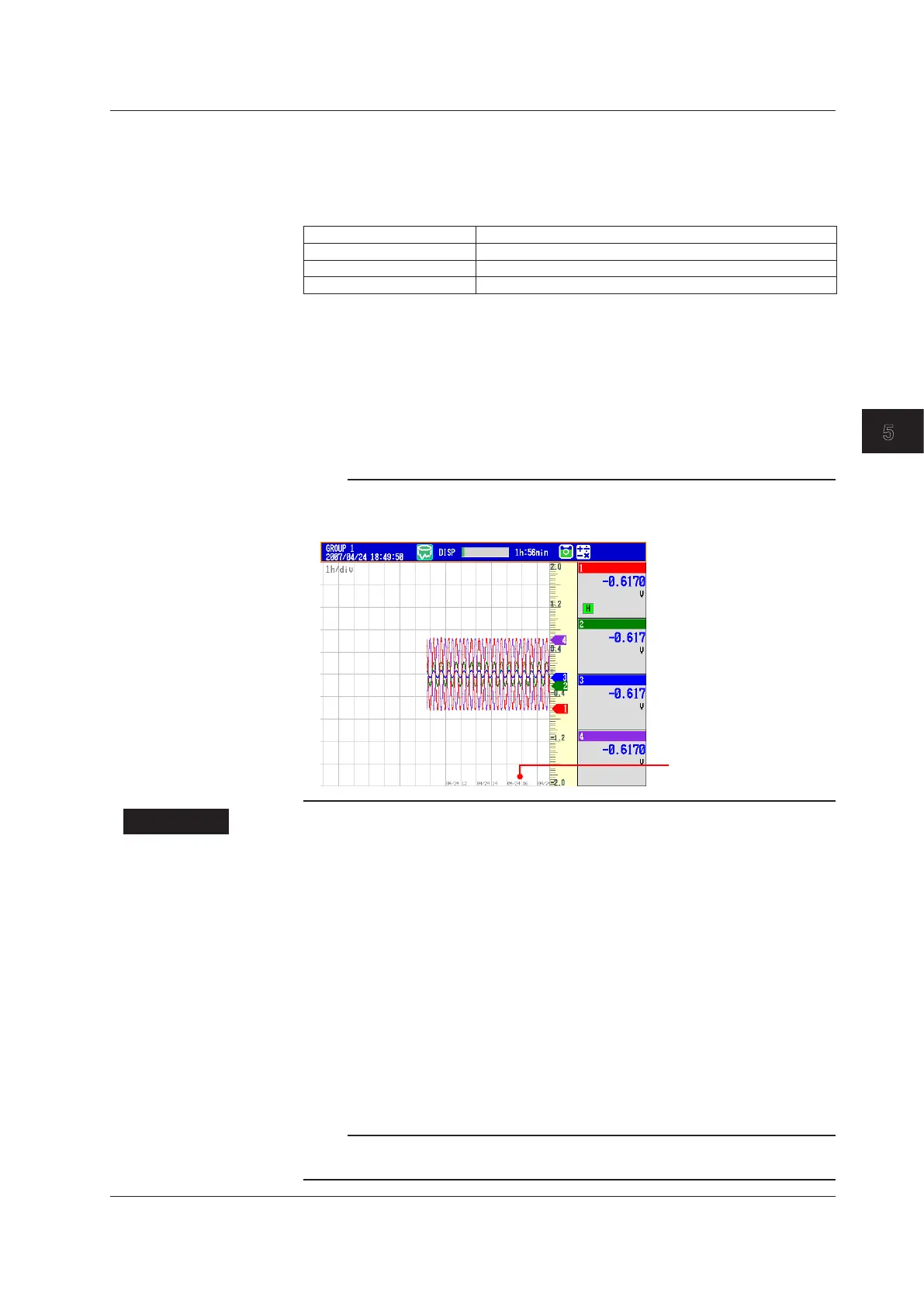

If the trend interval is set greater than or equal to 1h/div on a DX with release number 2 or later,
the month, day, and hour at the grid position are displayed on the screen. The display format
can be changed by setting the date format.
Month, day, and hour
at the grid position.
Procedure
• SwitchingtheTrendInterval
1.
In the operation mode, press FUNC.
The FUNC key menu appears.
2.
Press the Normalspeed soft key or Secondspeed soft key.
The trend interval is switched. A message is written on the trend display (when the change
message is turned ON).
Display example: 10:53 1min/div
• ChangingtheTrendDisplayTimeAxisWhileRecording(Memory
sampling)IsinProgress(Releasenumber3orlater)
On a DX whose release number is 3 or later, you can change the secondary trend
interval even while recording (memory sampling) is in progress. If you are using the
secondary trend interval to display waveforms and you change it, the time axis will
change immediately afterwards.
Note
Only the displayed time axis changes when you switch to the secondary trend interval. The
data sampling interval does not change.
5.3SettingtheTrendIntervalandSwitchingtotheSecondaryTrendInterval
