• AlarmMarksandColorScaleBand

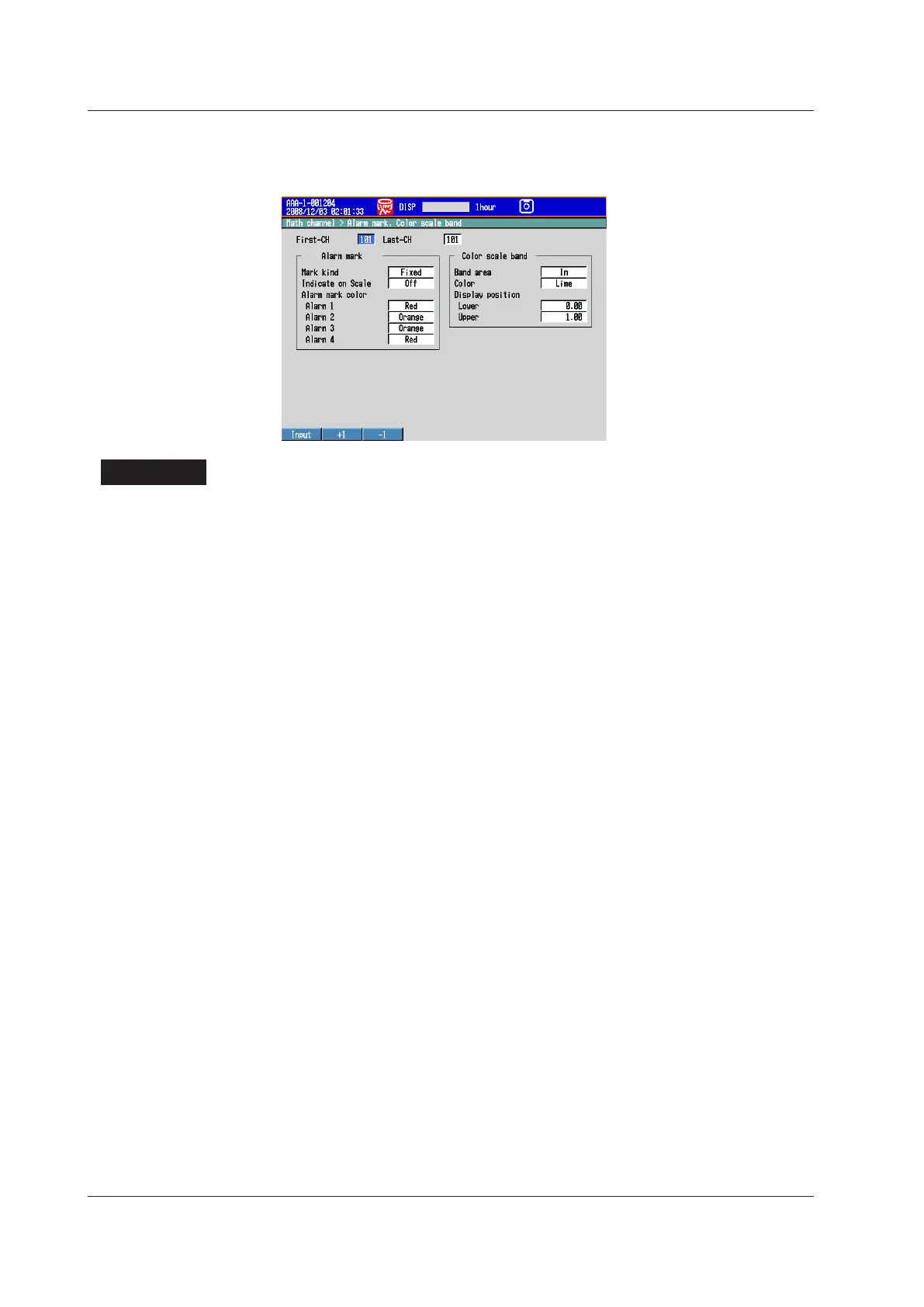

Press MENU (to switch to setting mode), and select the Menu tab > Math channel >
Alarmmark,Colorscaleband.
SetupItems
• ChannelNumbers,First-CH,andLast-CH
Select the target channel range.
• Color
See section 5.5.
• Zone
See section 5.6.
• Partial
See section 5.9.
• Bargraph
See section 5.11.
• Scale
See section 5.7.
• AlarmMarksandColorScaleBand
See section 5.8.
