YOKOGAWA DLM 2000 Series User Manual

11
Analyzable signals CH1 to CH4, logic input, or M1 to M2
Data format Select a data format from the following 8 bit (Non Parity),
7 bit Data + Parity, 8 bit + Parity
UART Trigger modes Every Data, Data, Error (Framing, Parity)
Analyzable no. of frames 300000 frames max.
List display items Analysis no., time from trigger position (Time(ms)), Data (Bin, Hex)
display, ASCII display, and Information.
CAN Bus Signal Analysis Functions (/F4, /F6, /F7 and /F8 Options)
*6
Applicable bus CAN version 2.0A/B, Hi-Speed CAN (ISO11898), Low-Speed CAN
(ISO11519-2)
Analyzable signals CH1 to CH4, M1 to M2
Bit rate 1 Mbps, 500 kbps, 250 kbps, 125 kbps, 83.3 kbps, 33.3 kbps
User Dene (an arbitrary bit rate from 10 kbps to 1 Mbps with
resolution of 100 bps)
CAN bus Trigger modes SOF, ID/Data, ID OR, Error (Error Frame, Stuff, CRC), Message and
signal (enabled when loading physical values/symbol denitions)
Analyzable no. of frames 100000 frames max.
List display items Analysis no., time from trigger position (Time (ms)), Frame type, ID,
DLC, Data, CRC, presence/absence of Ack, information
Auxiliary analysis functions Field jump functions
CAN FD Bus Signal Analysis Functions (/F7 and /F8 Options)
*6
Applicable bus CAN FD (ISO 11898-1:2015 and non-ISO)
Analyzable signals CH1 to CH4, M1 to M2
Bit rate Arbitration 1 Mbps, 500 kbps, 250 kbps, User Dene (an arbitrary bit rate
from 20 kbps to 1 Mbps with resolution of 100 bps)
Data 8 Mbps, 5 Mbps, 4 Mbps, 2 Mbps, 1 Mbps, 500 kbps, User Dene
(an arbitrary bit rate from 250kbps to10Mbps with resolution of
100 bps)
CAN FD bus trigger modes SOF, ID, ID OR, Error Frame, Message (enabled when loading
physical values/symbol denitions)
Auto setup function Auto setting of bit rate, recessive Level, threshold value, time axis
scale, voltage axis scale, and display of analysis results
Analyzable no. of frames 50000 frames max.
List display items Analysis no., time from trigger position (Time (ms)), Frame type, ID,
DLC, Data, CRC, presence/absence of Ack, information
Auxiliary analysis functions Field jump functions
LIN Bus Signal Analysis Functions (/F4, /F6, /F7 and /F8 Options)
*6
Applicable bus LIN Rev. 1.3, 2.0, 2.1
Analyzable signals CH1 to CH4, M1 to M2
Bit rate 19.2 kbps, 9.6 kbps, 4.8 kbps, 2.4 kbps, 1.2 kbps
User Dene (an arbitrary bit rate from 1 kbps to 20 kbps with
resolution of 10 bps)
LIN bus Trigger modes Break Synch, ID/Data, ID OR, and Error trigger
Analyzable no. of frames 100000 frames max.
List display items Analysis no., time from trigger position (Time (ms)), ID, ID-Field,
Data, CheckSum, information
Auxiliary analysis functions Field jump functions
CXPI Bus Signal Analysis Functions (/F4, /F6, /F7 and /F8 Options)
*6 *8
Applicable bus CXPI JASO D 015-3:2015
Analyzable signals CH1 to CH4, M1 to M2
Bit rate 19.2 kbps, 9.6 kbps, 4.8 kbps, User Dene (an arbitrary bit rate
from 4 kbps to 50 kbps with resolution of 10 bps)
Analyzable no. of frames 10000 frames max.
List display items Analysis no., time from trigger position (Time (ms)), ID, DLC, W/S,
CT, Data, CRC, error information, Wakeup/Sleep
FlexRay Bus Signal Analysis Functions (/F5, /F6 and /F8 Options)
*6
Applicable bus FlexRay Protocol Version 2.1
Analyzable signals CH1 to CH4, M1 to M2
Bit rate 10 Mbps, 5 Mbps, 2.5 Mbps
FlexRay bus Trigger modes Frame Start, Error, ID/Data, ID OR
Analyzable no. of frames 5000 frames max.
List display items Analysis no., time from trigger position (Time(ms)), Segment (Static
or Dynamic), Indicator, FrameID, PayLoad length, Cycle count,
Data, Information
SENT Signal Analysis Functions (/F9 and /F11 Options)
*6
Applicable standard J2716 JAN2010 and older
Analyzable signals CH1 to CH4, logic input, or M1 to M2
Clock period 1 us to 100 us with resolution of 0.01 us
Data type Fast channel Nibbles/User Dened
Slow channel Short/Enhanced
SENT trigger modes Start of fast channel
Analyzable no. of frames 100000 frames max.
List display items
Fast channel Analysis no., time from trigger position (Time (ms)), Sync/Cal period,
Tick, Status & Comm, Data, CRC, frame length, information
Slow channel Analysis no., time from trigger position (Time (ms)), ID, Data, CRC,
information
Auxiliary analysis functions Trend functions (up to 4 trend waveforms)
PSI5 Signal Analysis Functions (/F10 and /F11 Options)
*6
Applicable standard PSI5 Airbag (V2.2)
*7
Analyzable signals CH1 to CH4, M1 to M2
Bit rate 189 kbps, 125 kbps, User Dene (10.0 k to 1000.0 kbps, with
resolution of 0.1 kbps)
PSI5 Trigger modes Sync, Start Bit, Data
Analyzable no. of frames 400000 frames max.
List display items Analysis no., time from trigger position, time from Sync, slot
no., Data, Parity/CRC, Information
Auxliary analysis function Trend functions (up to 4 trend waveforms)
GP-IB (/C1 and /C11 Options)
Electromechanical specications Conforms to IEEE std. 488-1978 (JIS C 1901-1987)
Protocol Conforms to IEEE std. 488.2-1992
Auxiliary Input
Rear panel I/O signal External trigger input (DLM20x2: front panel), external
trigger output, GO-NOGO output, video output
Probe interface terminal (front panel) 2 terminals (DLM20x2), 4 terminals (DLM20x4)
Probe power terminal (rear panel) 2 terminals (/P2 option), 4 terminals (/P4 option)
Internal Storage (Standerd model, /C9 Option)
Capacity Standard model: 300 MB, /C9 option: 7.2 GB
Built-in Printer (/B5 Option)
Built-in printer 112 mm wide, monochrome, thermal
USB Peripheral Connection Terminal
Connector USB type A connector × 2 (front panel × 1, rear panel × 1)
Electromechanical specications USB 2.0 compliant
Supported transfer standards Low Speed, Full Speed, High Speed
Supported
devices
USB Printer Class Ver. 1.0 compliant EPSON/HP (PCL) inkjet printers USB
Mass Storage Class Ver. 1.1 compliant mass storage devices* Please contact
your local YOKOGAWA sales ofce for model names of veried devices
USB-PC Connection Terminal
Connector USB type B connector × 1
Electromechanical specications USB 2.0 compliant
Supported transfer standards High Speed, Full Speed
Supported class USBTMC-USB488
(USB Test and Measurement Class Ver. 1.0)
Ethernet (/C10 and /C11 Options)
Connector RJ-45 connector × 1
Transmission methods Ethernet (1000BASE-T/100BASE-TX/10BASE-T)
Supported services Server: FTP, HTTP, VXI-11 Client: FTP, SMTP, SNTP, LPR, DHCP, DNS
General Specications
Rated supply voltage 100 to 240 VAC
Rated supply frequency 50 Hz/60 Hz
Maximum power consumption 170 VA
External dimensions 226 (W) × 293 (H) × 193 (D) mm
(when printer cover is closed, excluding protrusions)
Weight Approx. 4.2 kg, With no options
Operating temperature range 5˚C to 40˚C
*1 Measured under standard operating conditions after a 30-minute warm-up followed by calibration.
Standard operating conditions: Ambient temperature: 23˚C ±5˚C
Ambient humidity: 55 ±10% RH
Error in supply voltage and frequency: Within 1% of rating
*2 Value in the case of repetitive phenomenon. The frequency bandwidth of a single-shot phenomenon is the smaller of
the two values, DC to sampling frequency/2.5 or the frequency bandwidth of the repetitive phenomenon.
*3 When the input section is shorted, the acquisition mode is set to Normal, accumulation is OFF, and the probe
attenuation is set to 1:1.
*4 Acquisition rate does not vary with an increase or decrease in channels.
*5 The LCD may include a few defective pixels (within 4 ppm over the total number of pixels including RGB).
*6 For 4 ch model only.
*7 Sync signal from ECU and the signal from sensors are analyzed.
*8 If the trigger function is required, please contact our sales representative.

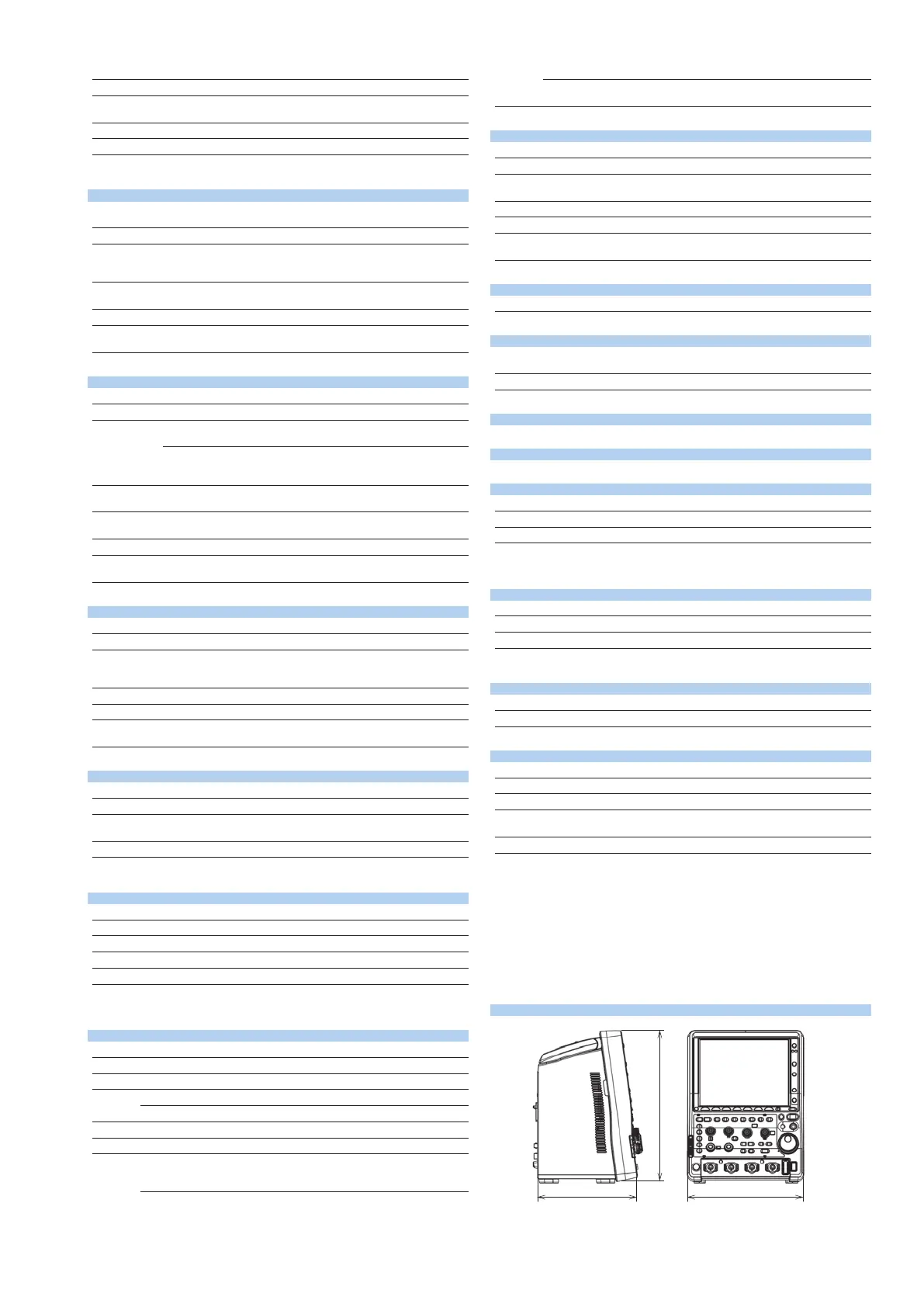

External Dimensions
293
193 226
Unit: mm
