YOKOGAWA Dpharp EJX110A Installation Manual

<2. Handling Cautions>
15
IM 01C25A01-01E
•
F0206.ai
Class I, II, III, Division 1,
Groups A, B, C, D, E, F, G
Pressure Transmitters
Safety Barrier
Supply
Hazardous Location Nonhazardous Location
General
Purpose
Equipment
+
–
+
–
+
–
+
–
[Intrinsically Safe]
Group IIC, Zone 0
F0207.ai
Pressure Transmitters
Supply
Hazardous Location Nonhazardous Location
+
–
+
–
Class I, II, Division 2,
Groups A, B, C, D, F, G
Class III, Division 1.
Not Use
Safety Barrier
[Nonincendive]
CSA Certified
Equipment
([nL] or
nonincendive)
Group IIC, Zone 2
b. CSA Intrinsically Safe for Fieldbus Type
(Except for EJX9 0A)
locations.

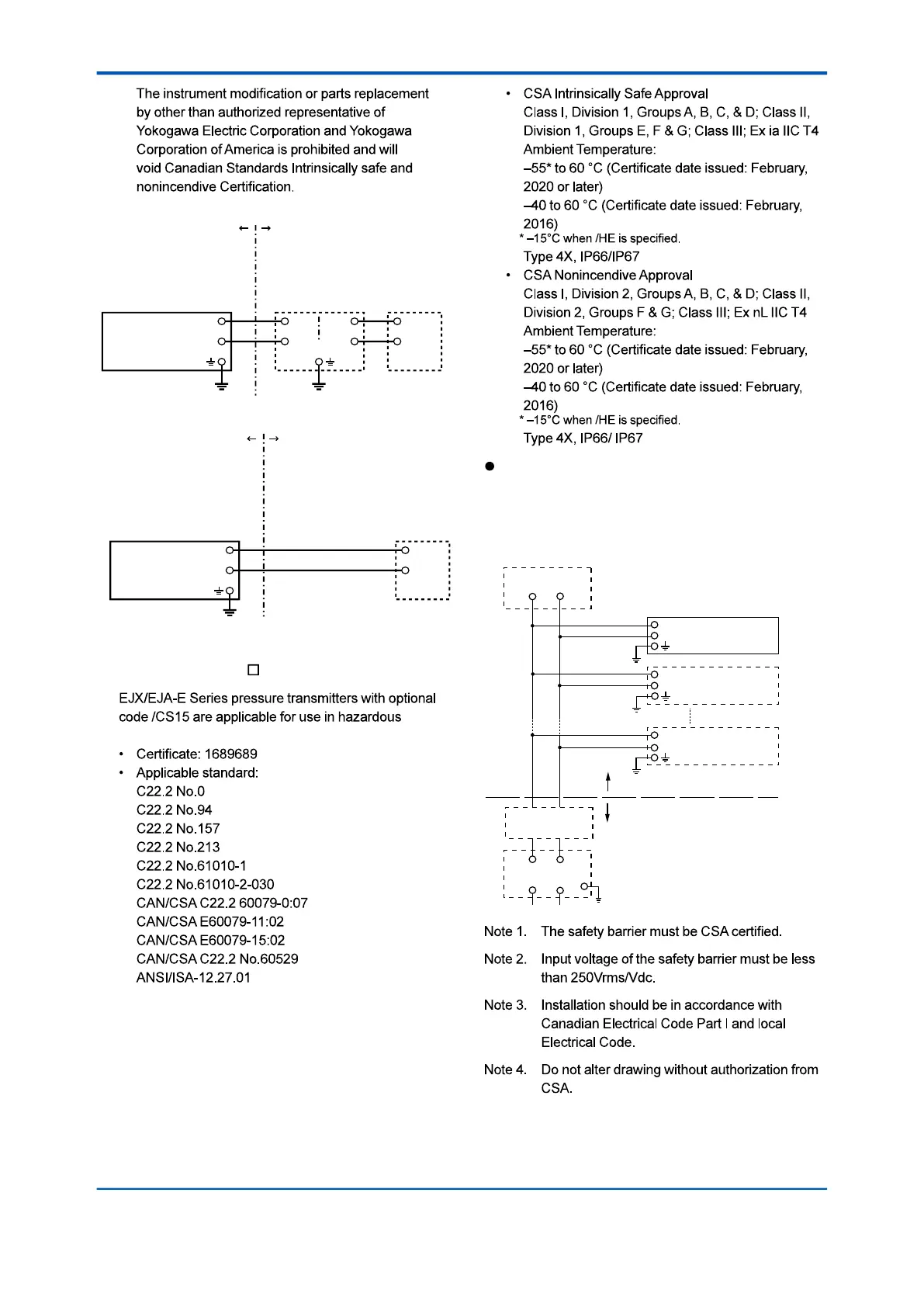

Caution for CSA Intrinsically Safe Type.
(Following Contents Refer to “DOC. No.
ICS018)
Installation Diagram for Intrinsically Safe
(Division 1 Installation)
Non-Hazardous Location
Hazardous Location
F0229.ai
Terminator
Safety Barrier
Field Instruments
Pressure
Transmitter
Field Instruments
+
–
+
–
+
–
Terminator
+
–
+
–
