Testing
1
2
3
4
5
6
7
MV2000
Power inlet
Functional ground
terminal
Power supply
screw terminals
Protective ground
terminal

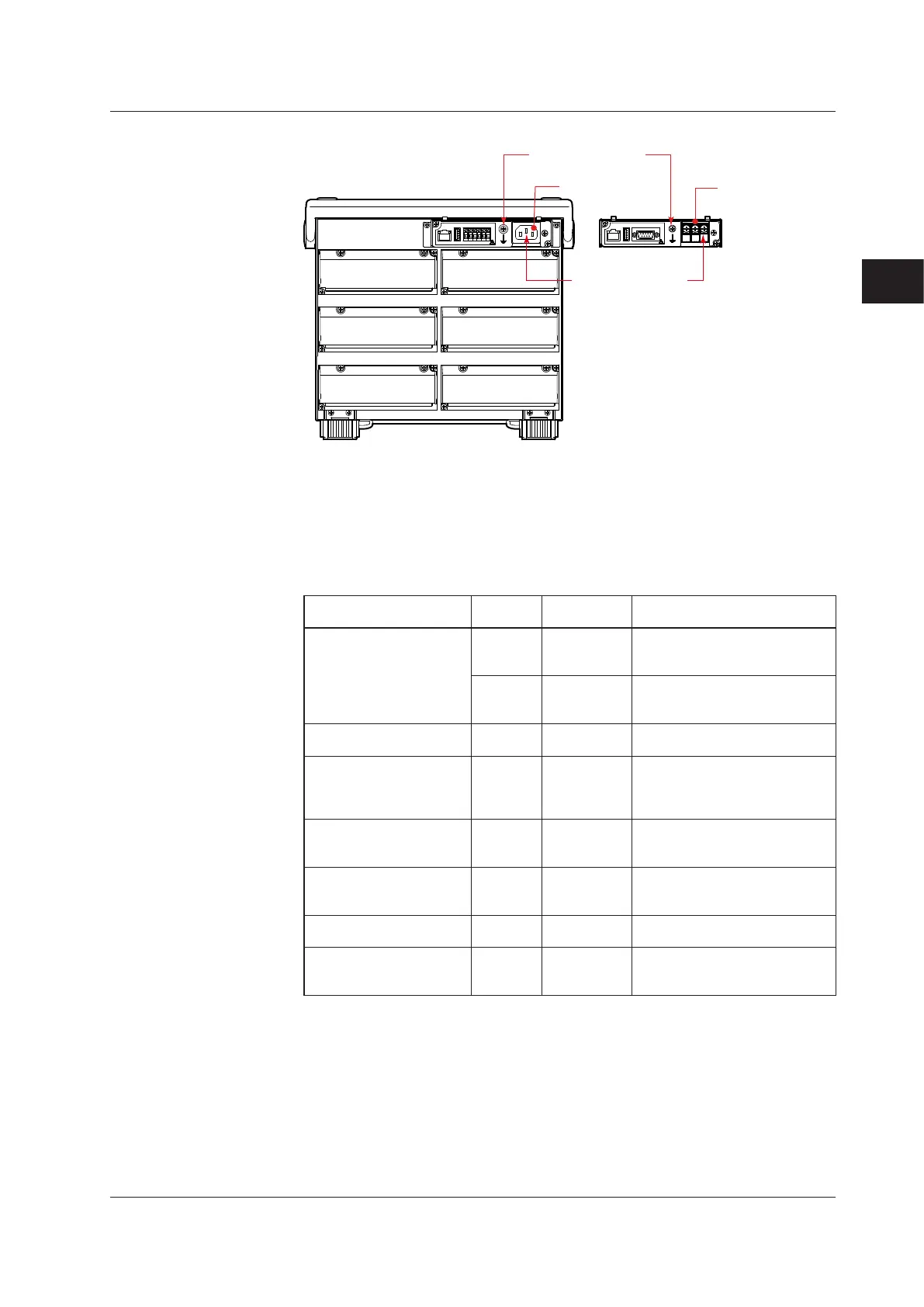

Withstand Voltage
● TestProcedures
Perform the test with a withstanding voltage tester, and check whether the results
satisfy the reference values. Perform the measurement with the power switch turned
ON.
T
est time: 1 minute
Tested Terminals
Applied
Voltage
Maximum Allowable
Leakage Current
Condition
Between the power and
protective ground terminals
2.3 kVAC 10 mA
For models with 100-240 VAC
power supply.
Short the L and N terminals.
0.5 KVAC 10 mA
For models with 12 VDC power
supply.
Short the + and – terminals.
Between the input and
protective ground terminals
1.5 kVAC 2 mA Short all input terminals.
Between input terminals 1.0 kVAC 1 mA
Short the odd and even channels
of the A/+, B/- terminals*, and
measure between odd and even
channels.
Between relay contact
output and protective
ground terminals
1.6 kVAC 2 mA
With the /A1, /A2, /A3, /A4, or
/F1 option. Short all relay contact
output terminals.
Between the remote control
input and protective ground
terminals
1.0 kVDC 2 mA
With the /R1 option. Short all
remote control input terminals.
Between pulse input and
protective ground terminals
1.0 kVDC 2 mA
With the /PM1 option. Short all
pulse input terminals.
Between 24 V transmitter
power supply output and
protective ground terminals
500 VAC 10 mA
With the /TPS2 or /TPS4 option.
Short all 24 V transmitter power
supply output terminals.
*
The b terminals on the following models are independent on all channels. Short the odd
and even channels of the A/+, B/-, and b terminals, and measure between odd and even
channels.
•
MV1004, MV1008, MV2008
• With the /N1 or /N2 option.
3.4 Test Procedures
