YOKOGAWA Rotamass Prime User Manual

Connecting cable installation
General Instruction Manual
Wiring
IM 01U10B00-00EN-R, 3rd edition, 2018-07-09
47 / 90
green
red
blue
white
brown
yellow
drain
wire

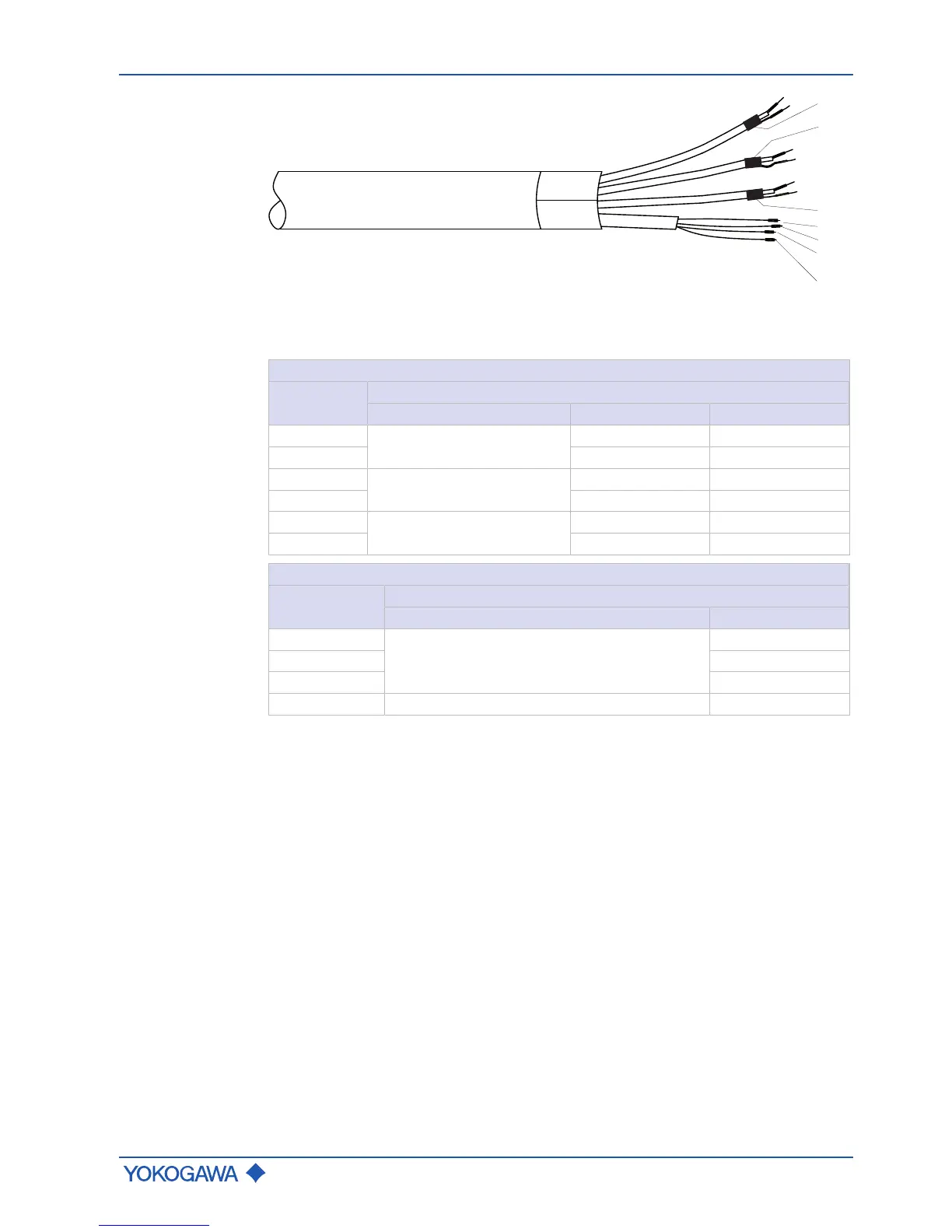

Fig.32: Terminated standard connecting cable L␣␣␣, transmitter side
Connection scheme of standard connecting cable option L␣␣␣
Standard connecting cable option L
␣␣␣
Signal Coaxial wire
Coaxial wire pair colour Wire type Wire colour
D+
green
Core wire transparent
D- Shield black
S1+
red
Core wire transparent
S1- Shield black
S2+
blue
Core wire transparent
S2- Shield black
Standard connecting cable option L
␣␣␣
Signal Single wire
Wire type Wire colour
TP1
Conductor
white
brownTP2
TP3 yellow
COM
1)
Drain wire
1)
–
1)
Present only at transmitter side
