YOKOGAWA SMARTDAC+ GP10 User Manual

1-24
IM 04L51B01-01EN

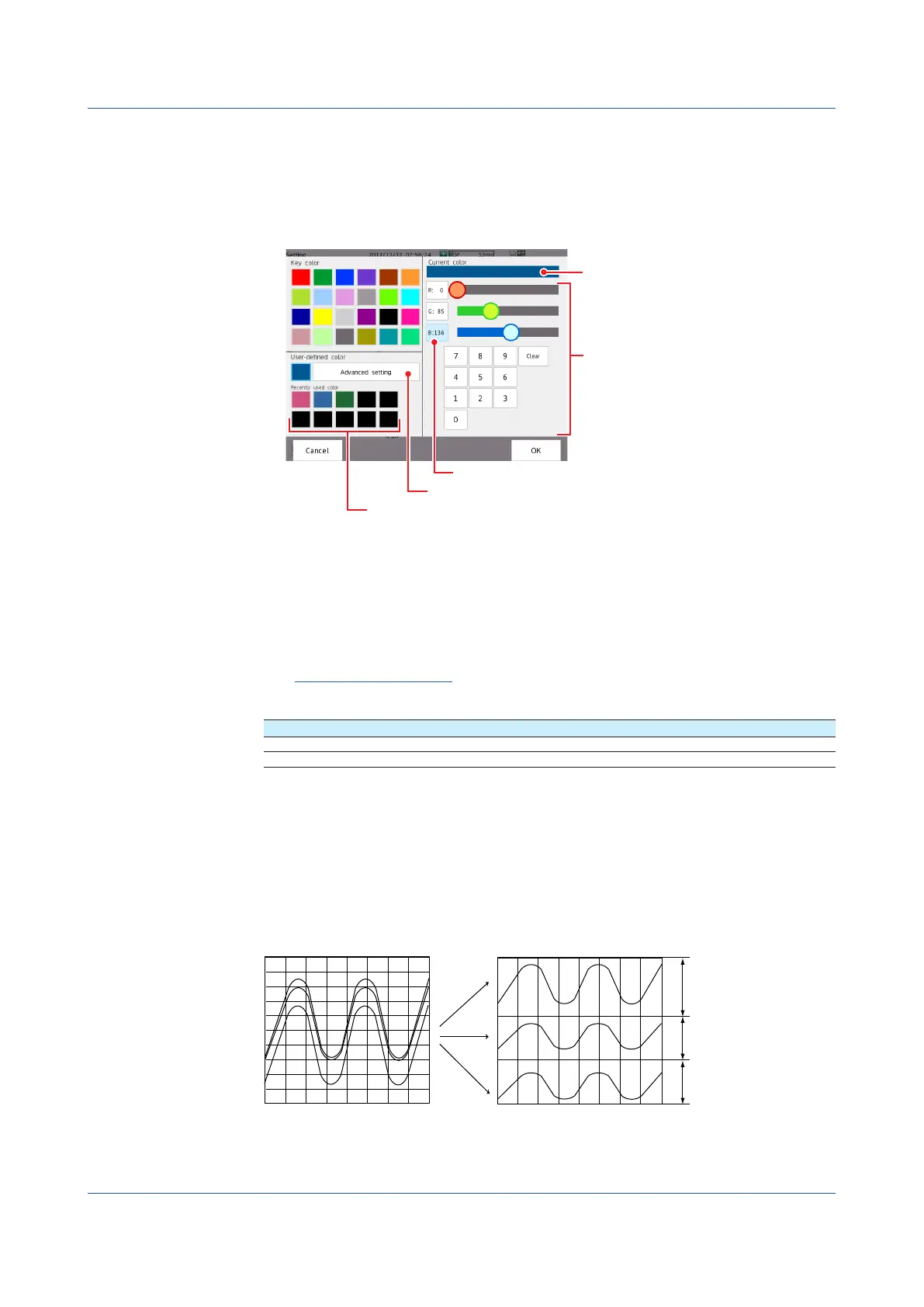

Setting the User-Defined Color
1 Tap Color.
The setup screen appears.
2 Tap Advanced setting.
Setup keys appear in the right area.
Advanced settings
Color settings
Select the color to set (R, G, or B).
Recently used colors
Color set in the user-defined color
3 Select R, G, B one at a time, and set each value using the numeric keypad or the bars.
4 Tap OK.
The user-dened color is set.
The color that you created is registered under Recently used color (up to 10 colors).
You can select a color from here.
Operation complete
Zone
Setup Item Selectable Range or Options Default Value
Lower 0 to 95% 0
Upper 5 to 100% 100
LowerandUpper
Set these values when you want to divide the waveform displays of channels into
separate zones so that waveforms do not overlap. Set the Lower and Upper positions as
percentages of the maximum display width. Set Lower to a value less than Upper, and set
the zone width (Upper – Lower) to be 5% or greater.
Example:
Set the channel 1 zone to 0 to 30%, the channel 2 zone to 30 to 60%, and the channel 3
zone to 60 to 100%.
Zone 2
Zone 1
Zone 3
100%
Time axis
30%
60%
100%
0%0%
Time axis
When zone display is not used
When zone display is used
CH3
CH2
CH1
1.2ConfiguringAIChannels(Analog(includingDI)input)channelsandAI(mA)channels
