YOKOGAWA SMARTDAC+ GP10 User Manual

1-18
IM 04L51B01-01EN

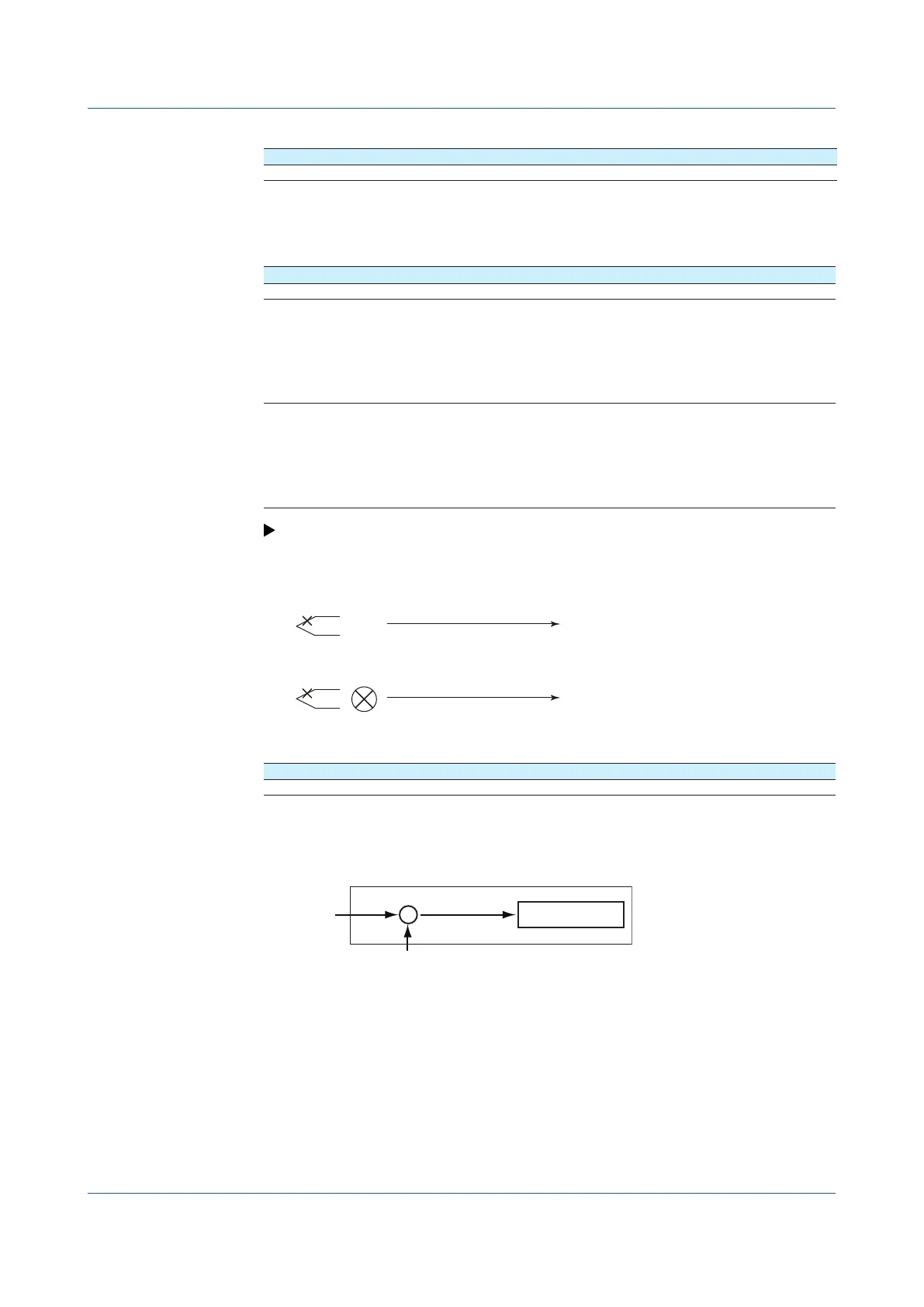

Burnout set
1
Setup Item Selectable Range or Options Default Value
Mode Off, Up, Down Off
1 Appears when the range type is set to GS, GS(4-20mA), TC, or RTD.
Mode
When the range type is set to TC, GS, GS(4-20mA), or RTD, the GX/GP detects sensor
burnouts.
Options Description
Off Does not detect burnouts in the sensor.
Up When the sensor burns out, the measured result is set to +over range. The measured
value is displayed as “Burnout.”
When the input type is set to GS or GS(4-20mA), the GX/GP assumes that the sensor
has burned out when the measured value moves out of the range defined by the upper
and lower limits of burnout specified on the specified span width. (Example: If the lower
limit of burnout is set to -10% and the upper limit to 110%, when the measured value is
less than –10 or greater than 110 when the scale is set to 0 to 100 in linear scaling)
Down When the sensor burns out, the measured result is set to –over range. The measured
value is displayed as “Burnout.”
When the input type is set to GS or GS(4-20mA), the GX/GP assumes that the sensor
has burned out when the measured value moves out of the range defined by the upper
and lower limits of burnout specified on the specified span width. (Example: If the lower
limit of burnout is set to -10% and the upper limit to 110%, when the measured value is
less than –10 or greater than 110 when the scale is set to 0 to 100 in linear scaling)
For details on setting the upper and lower limits of burnout, see page 1-93 in section
1.8.5, “Setting the Burnout Criteria (Release number 2 and later)”.
Thermocouple Examples
Burnout
Burnout
1 - 5 V
Detected on the 1-5 V value
Indicated as Burnout
Indicated as Burnout
Thermoelectromotive force
Bias
1
Setup Item Selectable Range or Options Default Value
Value Numeric value (–999999 to 999999) 0
1 Does not appear if the range is set to DI.
Value
Set the bias to add to input values or linear scaling values (input calculation).
Input value
Measured value
Bias (a constant value)
+
Channel on which bias is added
1.2ConfiguringAIChannels(Analog(includingDI)input)channelsandAI(mA)channels
