YOKOGAWA UM330 User Manual

2-4
<Toc> <2. Initial Settings>
IM 05F01D02-41E

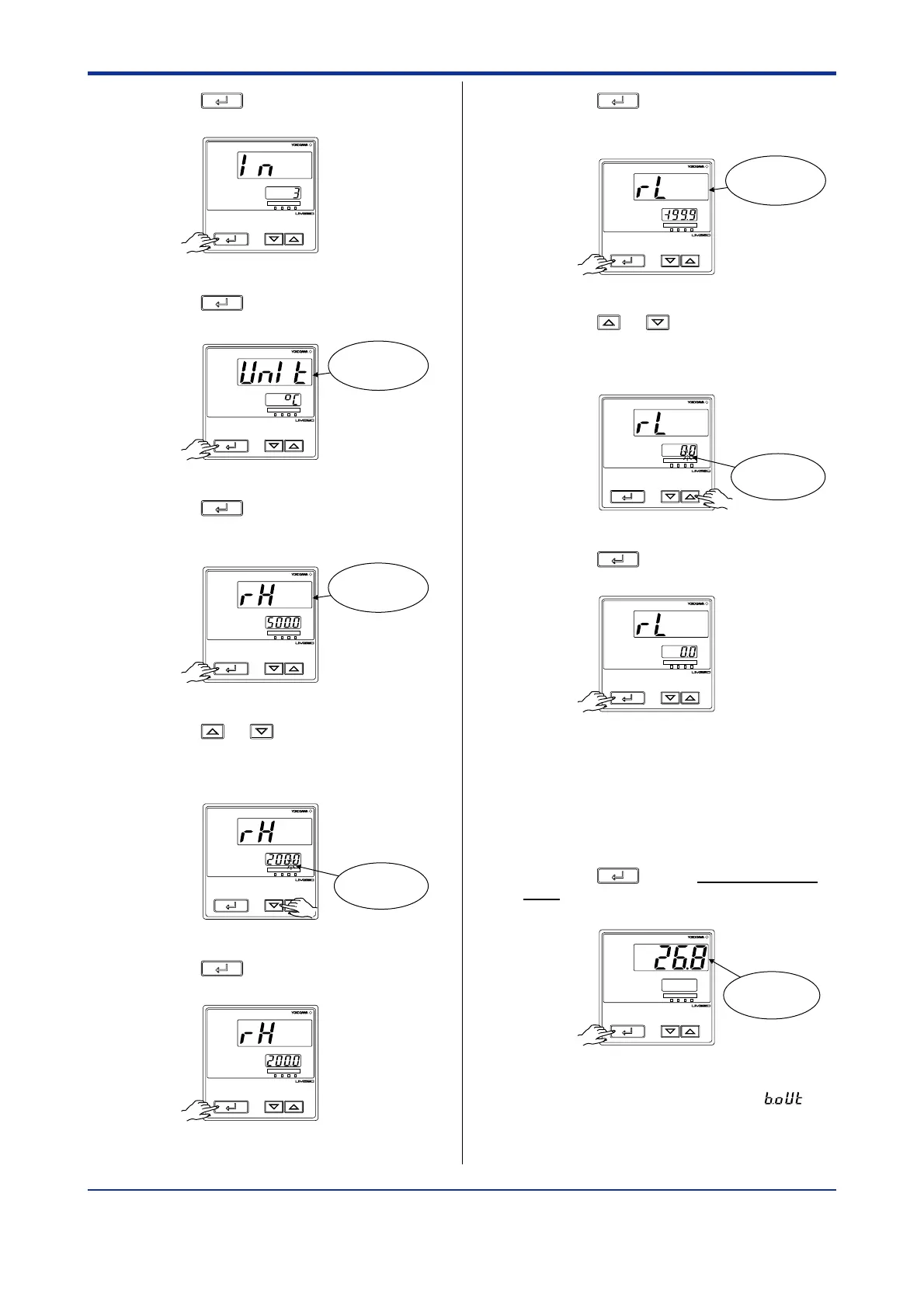

3.
Press the
SET/ENT
key once to register the
setpoint.
PV
AL1234
SET/ENT
4.
Press the
SET/ENT
key once to display the
parameter “UNIT” (PV input unit).
PV
AL1234
SET/ENT
Displays
parameter
“UNIT”.
5.
Press the
SET/ENT
key once to display the
parameter “RH” (maximum value of PV
input range).
PV
AL1234
SET/ENT
Displays
parameter
“RH”.
6.
Press the or key to display the
required setpoint. The figure below shows
an example of setting the maximum value
of PV input range to 200.0⬚C.
PV
AL1234
SET/ENT
Blinks during
change.
7.
Press the
SET/ENT
key once to register the
setpoint.
PV
AL1234
SET/ENT
1st Edition : May 31,2000-00
8.
Press the
SET/ENT
key once to display the
parameter “RL” (minimum value of PV
input range).
PV
AL1234
SET/ENT
Displays
parameter
“RL”.
9.
Press the or key to display the
required setpoint. The figure below shows
an example of setting the minimum value
of PV input range to 0.0⬚C.
PV
AL1234
SET/ENT
Blinks during
change.
10.
Press the
SET/ENT
key once to register the
setpoint.
PV
AL1234
SET/ENT
If the type of input is voltage, also config-
ure the PV Input Decimal Point Position
(SDP), Maximum Value of PV Input Scale
(SH), and Minimum Value of PV Input Scale
(SL) parameters that are displayed after
this.
11.
Press the
SET/ENT
key for more than 3 sec-
onds. This returns you to the display
shown at power-on (figure below).
PV
AL1234
SET/ENT
Displays PV.
The PV display in the figure above shows
the error code for input burnout ( ) if
PV input wiring is not yet complete. The
error code disappears when you wire the
PV input terminals correctly.
